Home » EiKO 4FT T5 LED Linear Glass Direct Fit - 12.5W, 1800LM, 5000K Dimmable & Emergency Compatible, G5 Base, 120-277V

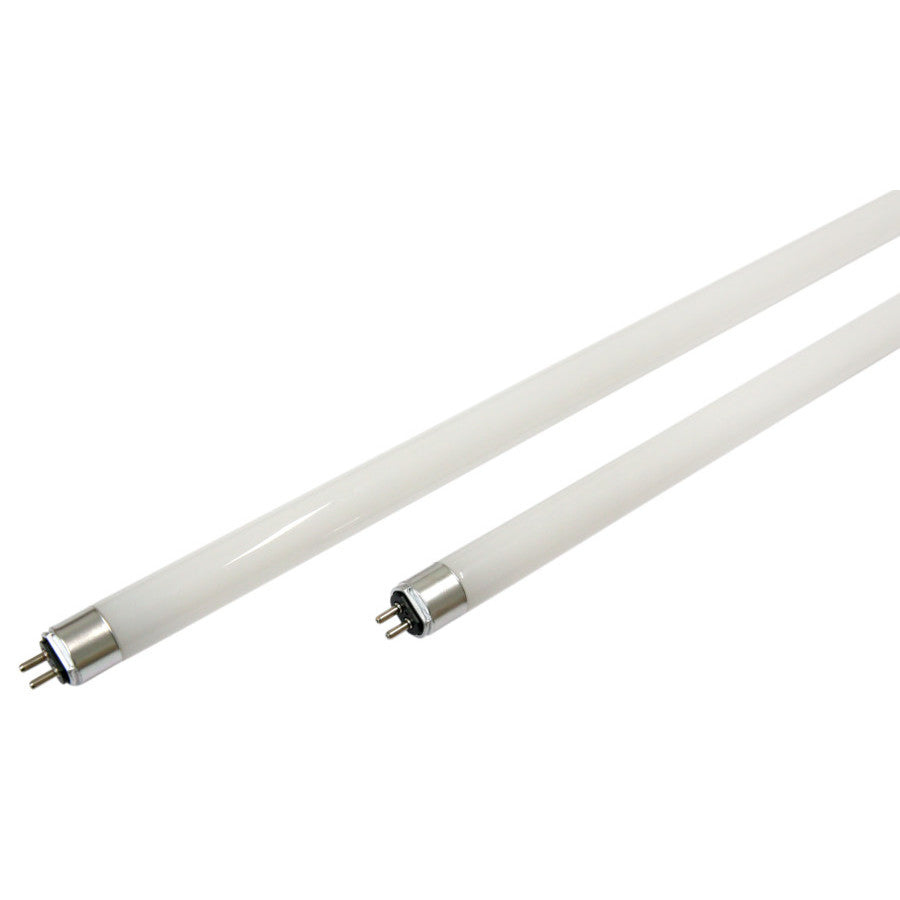

EiKO 4FT T5 LED Linear Glass Direct Fit - 12.5W, 1800LM, 5000K Dimmable & Emergency Compatible, G5 Base, 120-277V
EiKO 4FT T5 LED Linear Glass Direct Fit - 12.5W, 1800LM, 5000K Dimmable & Emergency Compatible, G5 Base, 120-277V
EiKO SKU: 09558 Barcode: 031293095589
EiKO

EiKO 4FT T5 LED Linear Glass Direct Fit - 12.5W, 1800LM, 5000K Dimmable & Emergency Compatible, G5 Base, 120-277V

In stock - 10 items available
SKU: 09558 UPC: 031293095589
(0)
$25.18 CAD
-25% $33.50 CAD $25.18 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 0.29 lb

Relamping T5HE fluorescent fixtures in offices, schools and warehouses is faster when the new lamp can run on the existing ballast. The EiKO 09558 (LED12.5WT5HE/46/850-G7DR) is a 4 ft glass direct-fit (Type A) LED T5 that replaces a 28 W fluorescent lamp with 12.5 W and 1800 lumens at 5000K. Facility maintenance teams use it to cut energy without rewiring fixtures.

Why maintenance teams pick it

  • Plugs into the existing G5 sockets and runs on a compatible T5 ballast, so no ballast bypass or rewiring.
  • 12.5 W replaces a 28 W T5HE fluorescent at 144 lm/W.
  • Glass tube with a frosted finish for even light, like the fluorescent it replaces.
  • 50,000 hour rated life and 5-year EiKO warranty.
  • 5000K daylight colour with 80+ CRI for work areas.

Specifications

Spec Detail
Brand EiKO
Model LED12.5WT5HE/46/850-G7DR
EiKO stock number 09558
Type T5 glass direct fit (ballast compatible)
Length / base 4 ft / G5
Wattage / lumens 12.5 W / 1800 lm
Colour temperature / CRI 5000K / 80+
Replaces 28 W T5HE fluorescent
Voltage Ballast dependent
Location Dry
Operating temperature -4°F to 113°F
Rated life / warranty 50,000 hours / 5 years

Pro tip from the counter

Because this is a ballast-driven lamp, check the fixture's ballast model against EiKO's compatibility list before a large relamp, and test one fixture first. Dimming and emergency operation depend on the ballast being on that list; EiKO's own product page marks the lamp non-dimmable, so do not promise dimming on an untested ballast.

Best for: T5HE troffer and high bay relamps, office and school maintenance, warehouse fixtures on existing ballasts, facility energy upgrades

We ship Canada-wide from Vaughan, ON. Relamping a building? Request trade and case pricing through a quote or call (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
