Fan and fixture mounting box for new construction with integrated 16 in steel bracket. Supports up to 70 lb ceiling fans and 200 lb fixtures. Fits sloped ceilings up to 45 degrees.
What is this product?

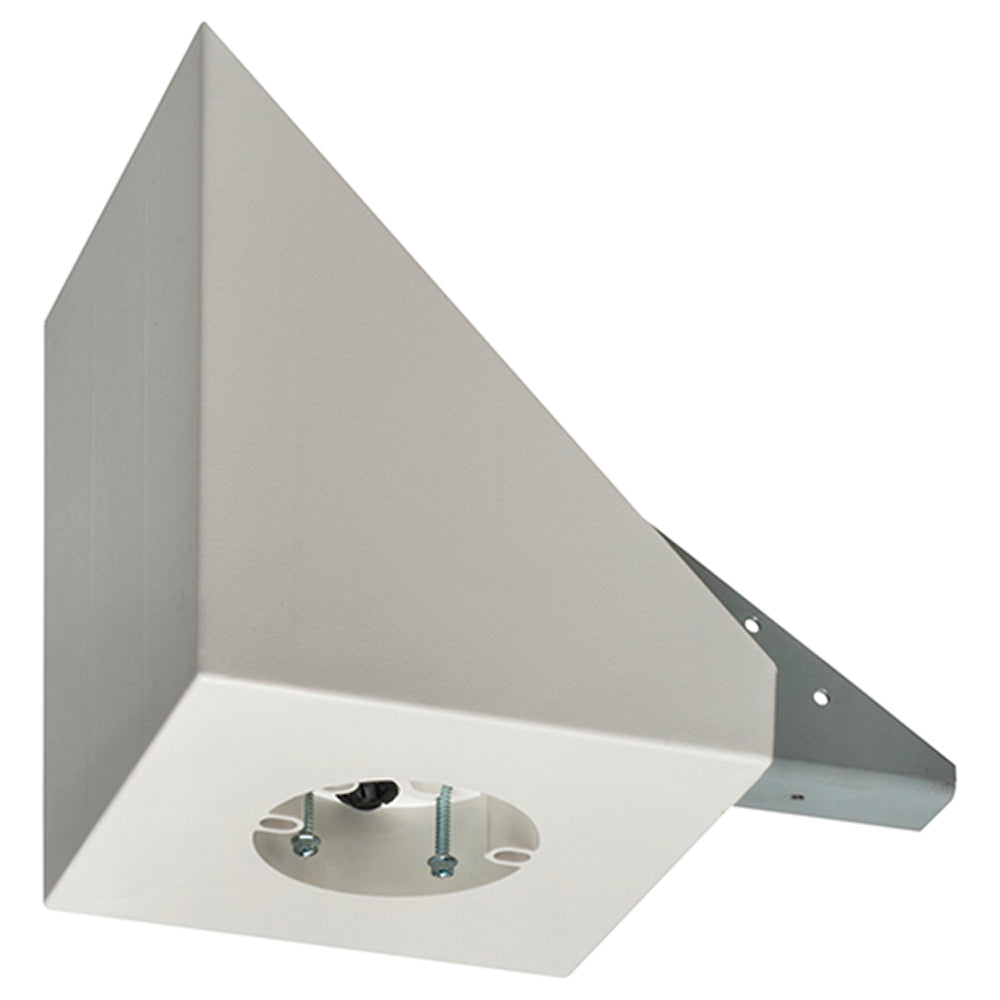

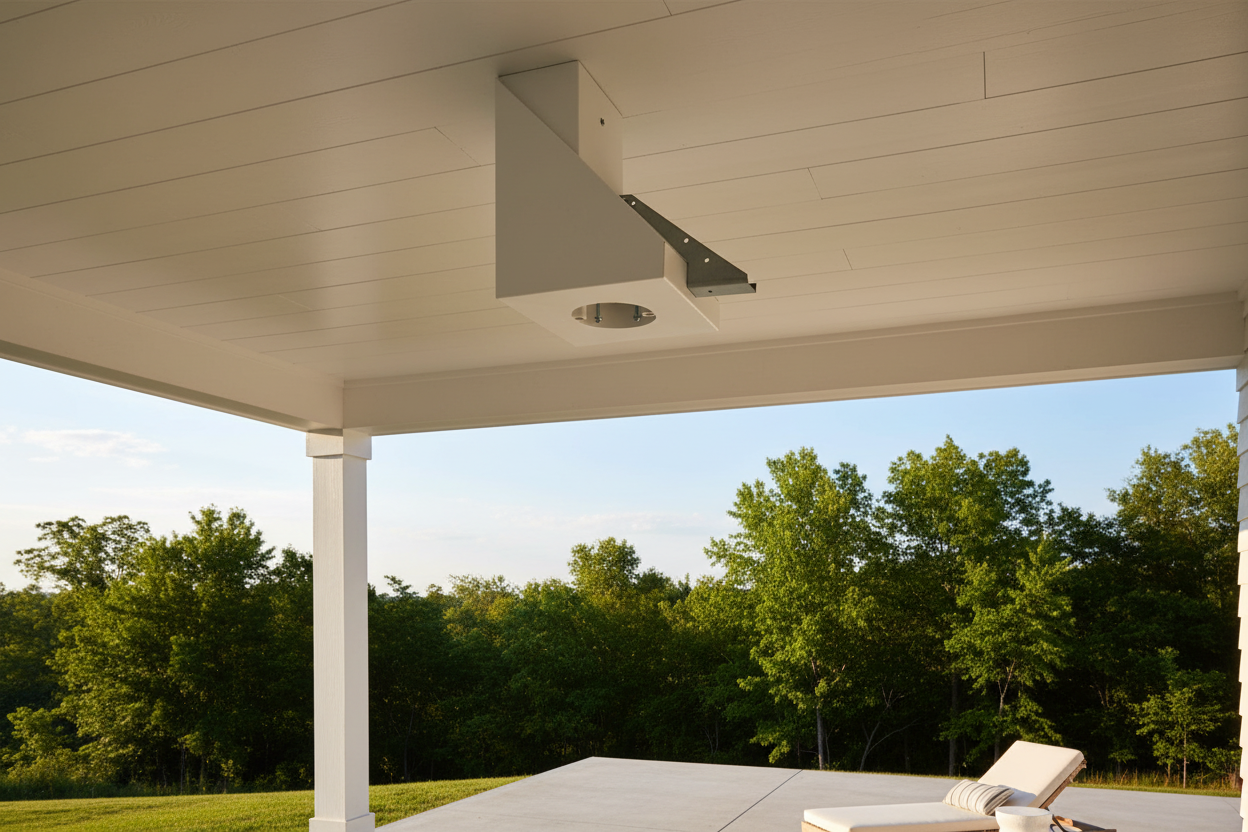

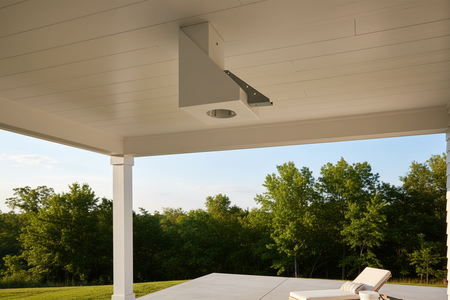

The FBB450 is a heavy-duty fan and fixture mounting box designed for new construction installations. It includes a factory-installed 16 inch steel mounting bracket and an 8 inch square mounting surface that supports larger fan canopies. This box is rated to support ceiling fans up to 70 lb and light fixtures up to 200 lb, including installations on sloped ceilings up to 45 degrees.
TL;DR – Who this is for
- Electricians installing ceiling fans or heavy fixtures in new construction
- Contractors working with sloped or vaulted ceilings
- Builders needing a high-capacity, code-compliant fan box
- Projects using fans with oversized canopies
Institutional Fit
- Suitable for residential and light commercial new construction
- Supports high-load fixtures without additional bracing
- 8 inch square mounting surface simplifies alignment for large canopies
- Paintable textured finish allows visual blending after installation
Key Benefits
- Rated for 70 lb ceiling fans and 200 lb light fixtures
- Integrated 16 inch steel mounting bracket included
- Compatible with sloped ceilings up to 45 degrees
- Large 8 inch square mounting surface
- 14.5 cubic inch interior capacity
- Paintable textured finish for clean final appearance
Technical Specifications
| Part number | FBB450 |
| Product type | Fan and fixture mounting box |
| Application | New construction |
| Fan load rating | 70 lb |
| Fixture load rating | 200 lb |
| Ceiling compatibility | Flat and sloped ceilings up to 45 degrees |
| Mounting surface | 8 in square |
| Internal volume | 14.5 cubic inches |
| Bracket | 16 in steel bracket (installed) |
| Material | Plastic mounting block with steel bracket |
| Finish | White, paintable textured finish |
| Listings | UL / CSA |
| Country of origin | USA |
| Package size | 1 |
Regulatory and Installation Notes
- Designed for new construction applications only
- Install in accordance with NEC and local electrical codes

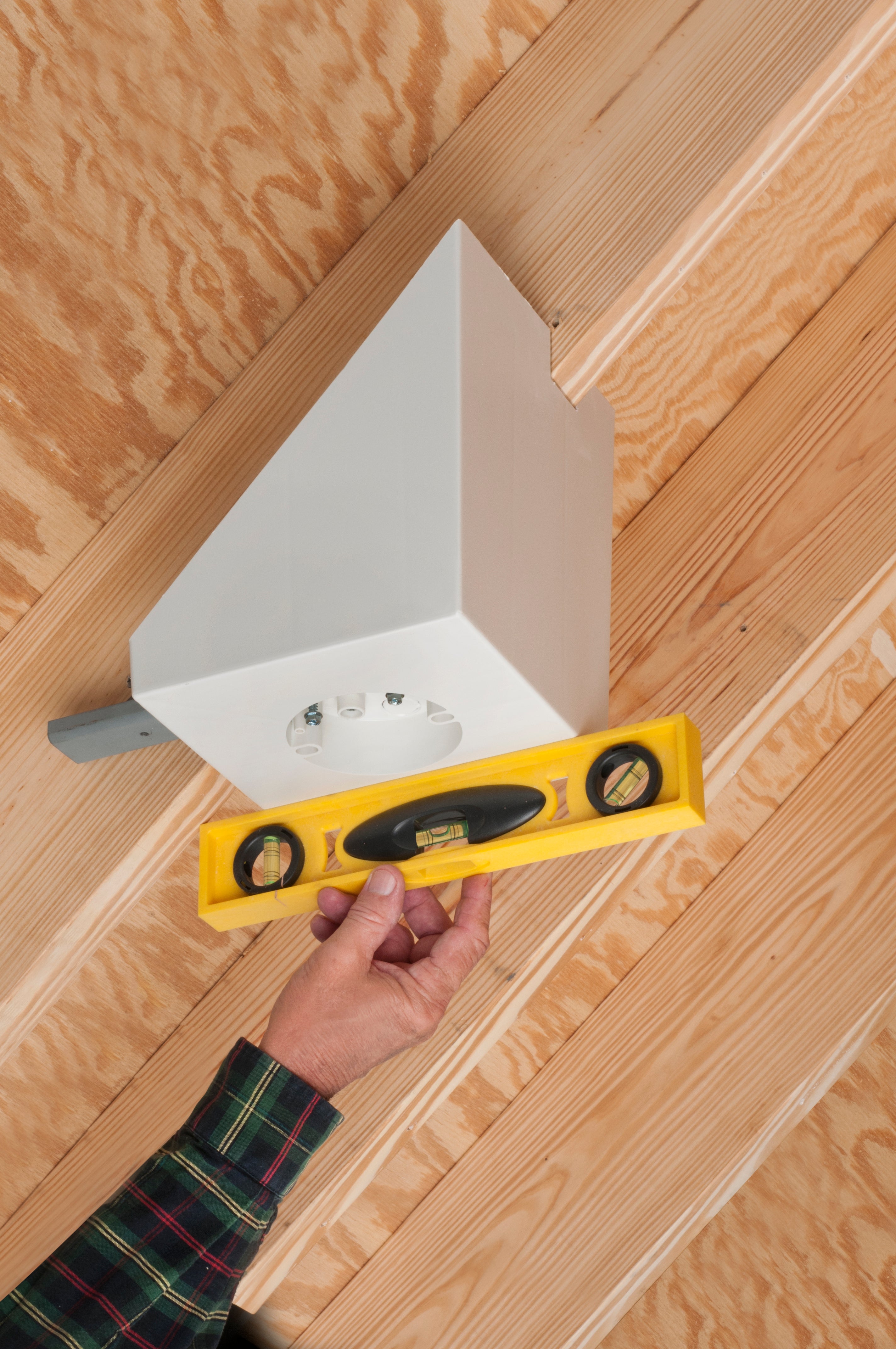

- Verify ceiling slope does not exceed 45 degrees
- Ensure fan and fixture weights do not exceed rated limits
Durability and Lifecycle
- Steel bracket provides long-term structural support
- Non-metallic box resists corrosion and moisture
- Paintable surface supports clean aesthetics over time
- Suitable for repeated fan replacements without box removal
Procurement Notes
- Ideal for projects using heavy fans or large decorative fixtures
- Large mounting surface reduces need for specialty adapters
- Confirm canopy size and ceiling slope before ordering
Included Components
- Steel mounting bracket
- NM94 cable connector
- Mounting block with built-in electrical box
- Mounting screws and wood screws
Documentation
FAQ
What is the maximum fan weight supported?
This box supports ceiling fans up to 70 lb.
Can this box be used for heavy light fixtures?
Yes. It supports fixtures up to 200 lb when installed correctly.
Is this suitable for sloped ceilings?
Yes. It is designed for sloped ceilings up to 45 degrees.
Can the box be painted?
Yes. The textured finish is paintable to match the ceiling.
