Weatherproof Cover, Single Gang, Vrt/Hrz conf, 2.25' Clear
Weatherproof Cover, Single Gang, Vrt/Hrz conf, 2.25' Clear
Intermatic SKU: WP5103C Barcode: 078275147669
Intermatic

WP5103C

In stock
SKU: WP5103C UPC: 078275147669
(0)
$17.13 CAD
-24% $22.44 CAD $17.13 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 1.1 lb

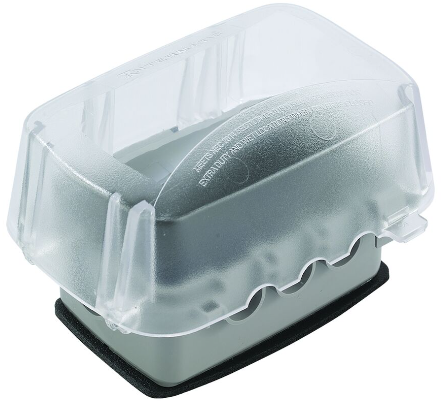

The Intermatic WP5103C is the extra-duty WP5100C in-use cover packaged with a 3/0 adapter plate, so it can mount on a 3 in (76 mm) round box as well as a standard single-gang box. The clear 2.75 in lid closes over a plugged-in cord, mounts vertically or horizontally, and locks with a 1/4 in shank padlock.

Why electricians pick it

  • Includes a 3/0 adapter plate for 3 in (76 mm) round boxes.
  • Rated extra-duty by Intermatic, with a reinforced hinge pin designed to exceed a 40 lbf hang test.
  • Impact tested at 12 lbf; UV-stabilized polycarbonate, cold-impact tested to -51°C (-60°F).
  • Lockable hasp accepts up to a 1/4 in (6 mm) shank.
  • cULus certified; UL certified for Type 3R outdoor enclosures.

Specifications

Spec Detail
Brand Intermatic
Model WP5103C
Type Extra-duty plastic in-use weatherproof cover
Gangs / hinge Single-gang, vertical or horizontal
Depth 2.75 in
Box compatibility Single-gang; 3 in round with included adapter
Gasket 1/8 in neoprene
Max cord size 2 x #14 AWG or 1 x #12 AWG
Inserts WP17
Colour Clear / grey
Certification cULus; Type 3R

Pro tip from the counter

Two covers fit a 3 in round box: the WP3103C and this WP5103C. For commercial, rental or public-facing locations, pick the WP5103C, because it is extra-duty rated, has the reinforced hinge and takes a full 1/4 in padlock shank instead of 1/8 in.

Best for: 3 in round boxes on commercial exteriors, rental and multi-unit properties, porch receptacle retrofits, public-facing locations

Ships across Canada from Vaughan, ON. Request a quote for trade pricing or call (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
