Weight: 6.0 lb

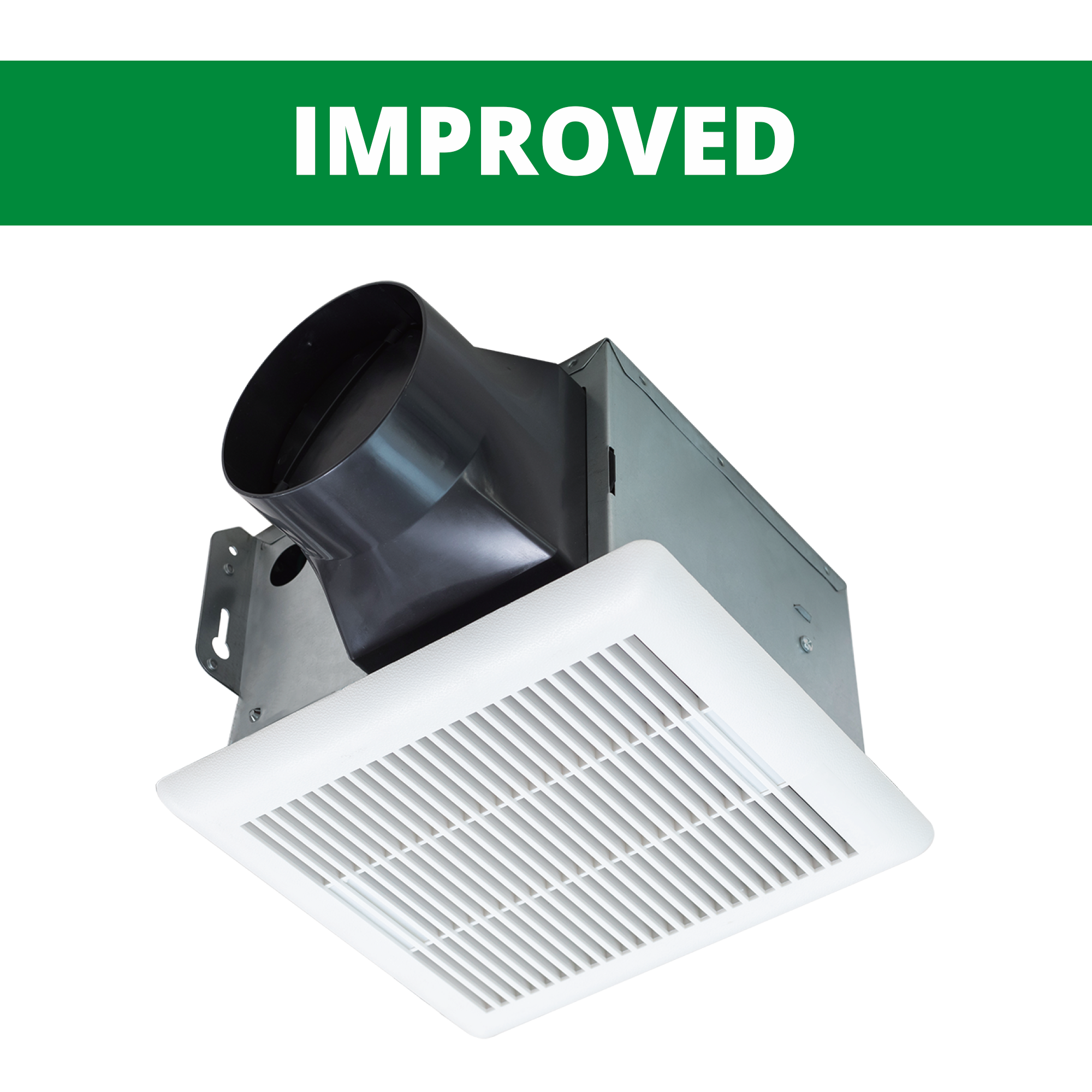

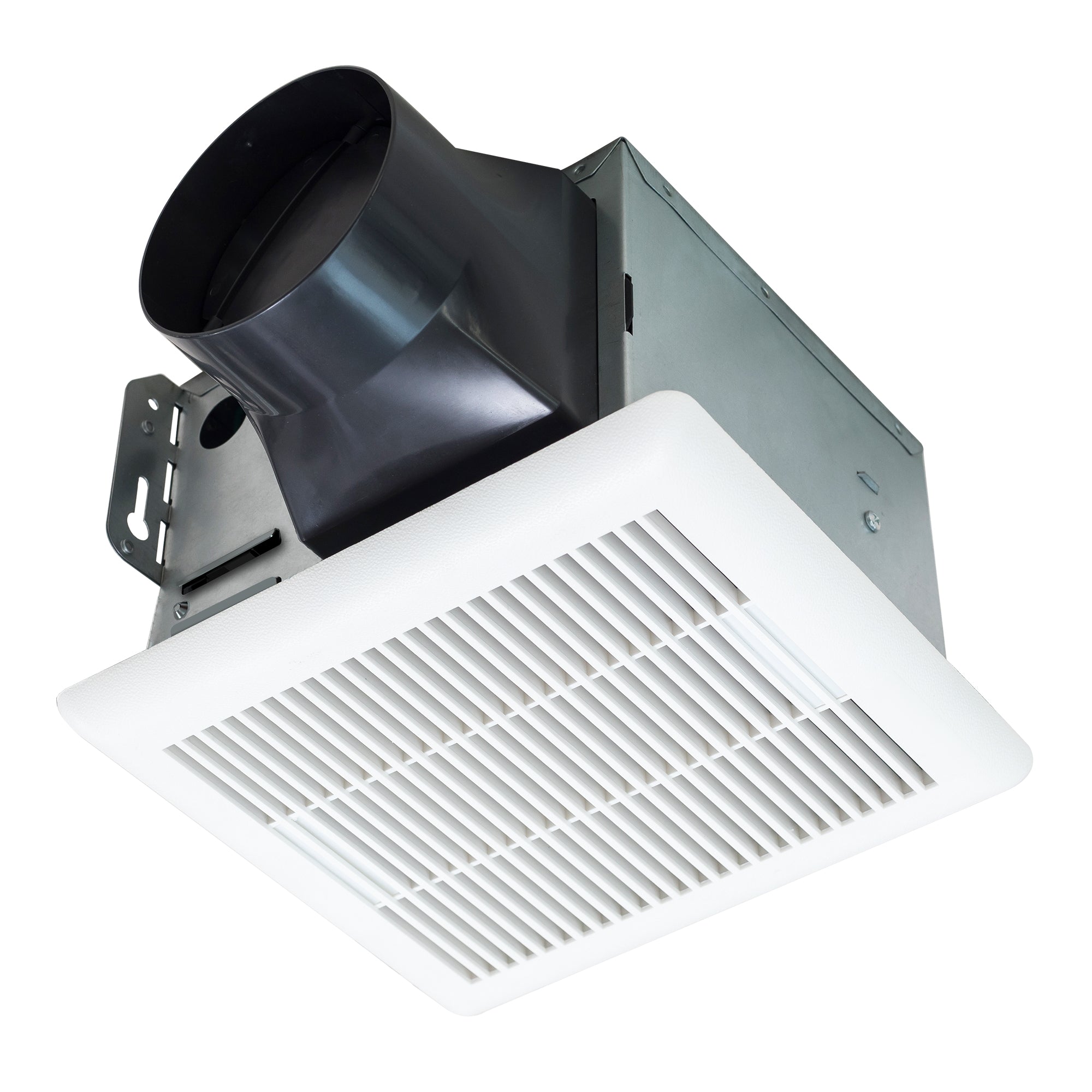

Bathrooms and laundry rooms need steady ventilation that is quiet enough that people actually leave the fan on. The Ortech ODE-9010 is a Next Generation series ceiling-mount bath fan rated 90 CFM at 1.5 sones with a capacitor start motor and a 4 inch duct connection. Canadian electricians and builders use it for new homes and bathroom renovations.
| Spec | Detail |
|---|---|
| Brand | Ortech |
| Model | ODE-9010 |
| Airflow | 90 CFM at 0.1 in w.g. / 81 CFM at 0.25 in w.g. |
| Sound | 1.5 sones |
| Power | 20 W, 120 V / 60 Hz |
| Duct | 4 in |
| Housing | 7-1/2 x 7-1/4 x 5-5/8 in |
| Grille | 8-5/8 x 9-1/2 in |
| Mounting | Ceiling |
| Certifications | cETLus, HVI, ENERGY STAR |
| Warranty | 3 years |
Pro tip from the counter
The 90 CFM rating drops to 81 CFM at 0.25 in of static pressure, and long or crushed 4 inch flex duct pushes it lower still. Keep the duct run short and straight, stretch flex duct tight, and use rigid duct where you can so the fan moves close to its rated air.
Best for: bathroom renovations, new-home builders, laundry and powder rooms, condo and rental unit fan replacements
Ships Canada-wide from Vaughan, ON. Builders can get trade pricing on fans through a quote or at (905) 553-7171.
