Weatherproof Cover, Single Gang, Vrt/Hrz conf, 2.25' White
Weatherproof Cover, Single Gang, Vrt/Hrz conf, 2.25' White
Intermatic SKU: WP5100W Barcode: 078275145672
Intermatic

WP5100W

In stock
SKU: WP5100W UPC: 078275145672
(0)
$18.26 CAD
-15% $21.59 CAD $18.26 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 1.1 lb

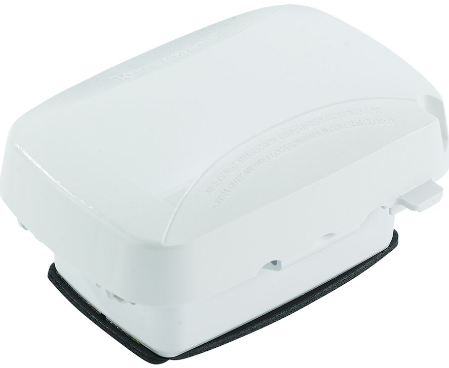

The Intermatic WP5100W is a white, single-gang, extra-duty in-use weatherproof cover with a 2.75 in deep lid, a little deeper than the low-profile WP5000W for moulded plugs and cord caps. It keeps the receptacle weatherproof while in use, mounts vertically or horizontally, and is certified cULus and cCSAus.

Why electricians pick it

  • Rated extra-duty by Intermatic, with a reinforced hinge pin designed to exceed a 40 lbf hang test.
  • Impact tested at 12 lbf; UV-stabilized polycarbonate, cold-impact tested to -51°C (-60°F).
  • Lockable hasp accepts up to a 1/4 in (6 mm) shank.
  • 2.75 in depth for moulded plugs; vertical or horizontal mounting.
  • cULus and cCSAus certified; UL certified for Type 3R outdoor enclosures.

Specifications

Spec Detail
Brand Intermatic
Model WP5100W
Type Extra-duty plastic in-use weatherproof cover
Gangs / hinge Single-gang, vertical or horizontal
Depth 2.75 in
Gasket 1/8 in neoprene
Max cord size 2 x #14 AWG or 1 x #12 AWG
Inserts WP17
Colour White
Certification cULus, cCSAus; Type 3R

Pro tip from the counter

Inserts go missing on service calls, and a cover without the right insert isn't sealed. Intermatic sells the WP17 insert set separately, so keep a set on the truck for when a receptacle gets swapped from a duplex to a GFCI.

Best for: white siding and trim, residential GFCI receptacles, property management and maintenance stock, renovation and replacement work

We ship Canada-wide from Vaughan, ON. Contractors and property managers can get trade pricing through a quote or at (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
