Weight: 1.1 lb

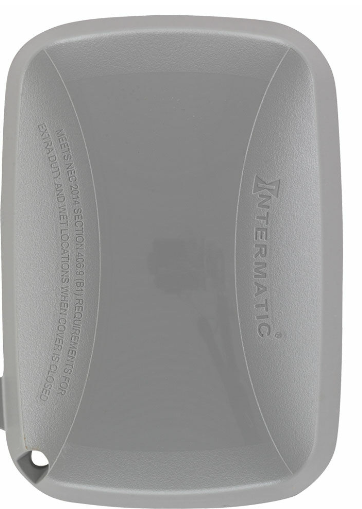

The Intermatic WP5100G is a grey, single-gang, extra-duty plastic in-use weatherproof cover with a 2.75 in deep lid. The opaque grey finish suits utility areas and grey siding, and like the rest of the WP5100 family it stays weatherproof with a cord plugged in, mounts vertically or horizontally, and locks with a standard padlock.
| Spec | Detail |
|---|---|
| Brand | Intermatic |
| Model | WP5100G |
| Type | Extra-duty plastic in-use weatherproof cover |
| Gangs / hinge | Single-gang, vertical or horizontal |
| Depth | 2.75 in |
| Dimensions (H x W x D) | 6.33 x 4.66 x 2.75 in |
| Gasket | 1/8 in neoprene |
| Max cord size | 2 x #14 AWG or 1 x #12 AWG |
| Inserts | WP17 |
| Colour | Grey |
| Certification | cULus; Type 3R |
Pro tip from the counter
When the cover is mounted vertically, orient it so the hinge is at the top. Gravity then pulls the lid shut after someone unplugs a cord, rather than leaving the receptacle open to rain until the next person walks by.
Best for: pool equipment and pump receptacles, HVAC condenser service receptacles, utility and mechanical areas, grey siding exteriors
