| Color | Light Almond | Wiring Configurations | 3-Way, Single |
| Operation Mode | 24 hour | Operation Features | Astronomic, Daylight Saving Time |
| Neutral Connection Required | No | Input Voltage Range(s) | 120-277 VAC, 50/60 Hz |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED | Backup Protection Time | 3 years |
| Backup Type | Battery | Ballast Fluorescent | 8 A, 120 VAC; 4 A, 208-277 VAC |
| Battery Service Type | Replaceable | Battery Type | CR2 Lithium |
| CA Prop 65 Message | Please see the Warning @ www.P65Warnings.ca.gov | California Proposition 65 | DEHP |
| Country of Origin (Intermatic) | THAILAND | CSA Certification | cCSAus |
| DC loads | 4 A, 12 VDC; 2 A, 28 VDC | Electronic Ballast LED | 5 A, 120 VAC; 2 A, 277 VAC |
| Inductive | 4 A, 208 VAC, 50 Hz, 4 A, 208 VAC, 60 Hz, 4 A, 240 VAC, 50 Hz, 4 A, 240 VAC, 60 Hz, 4 A, 277 VAC, 50 Hz, 4 A, 277 VAC, 60 Hz, 8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz | Inductive Load Ratings Ranges | 8 A, 120 VAC, 50/60 Hz; 4 A, 208-277 VAC, 50/60 Hz |
| Max Load Handling Capability | 15 A | Maximum ON/OFF Operations | 40 |
| Mechanism Type | Digital/Electrical | Minimum ON/OFF Times | 1 min |
| Motor Load Ratings Ranges | 1 HP, 120 VAC; 2 HP, 240 VAC | Other Certifications and Compatibilities | Green Energy, Title 20 |
| Resistive Heater | 15 A, 120-277 VAC | RoHS Certification | X |
| Switch Type | SPST-NO | Tungsten (Incandescent) Range(s) | 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC |
| Tungsten Incandescent | 15 A, 120 VAC; 6 A, 208-277 VAC | Wall Plate Configurations | Single-Gang |
| Warranty Period | 1-Year limited | Operating Temperature Max (°C) | 40 |
| Operating Temperature Max (°F) | 104 | Operating Temperature Min (°C) | 0 |
| Operating Temperature Min (°F) | 32 | Product Depth (in) | 1.813 |
| Product Depth (mm) | 46 | Product Height (in) | 4.125 |
| Product Height (mm) | 104.8 | Product Width (in) | 1.75 |
| Product Width (mm) | 44.5 | Unit Carton Height (in) | 4.625 |
| Unit Carton Length (in) | 2.875 | Unit Carton Weight (lb) | 0.4 |
| Unit Carton Width (in) | 2.125 | Units Per Pallet | 2160 |
| Feature |

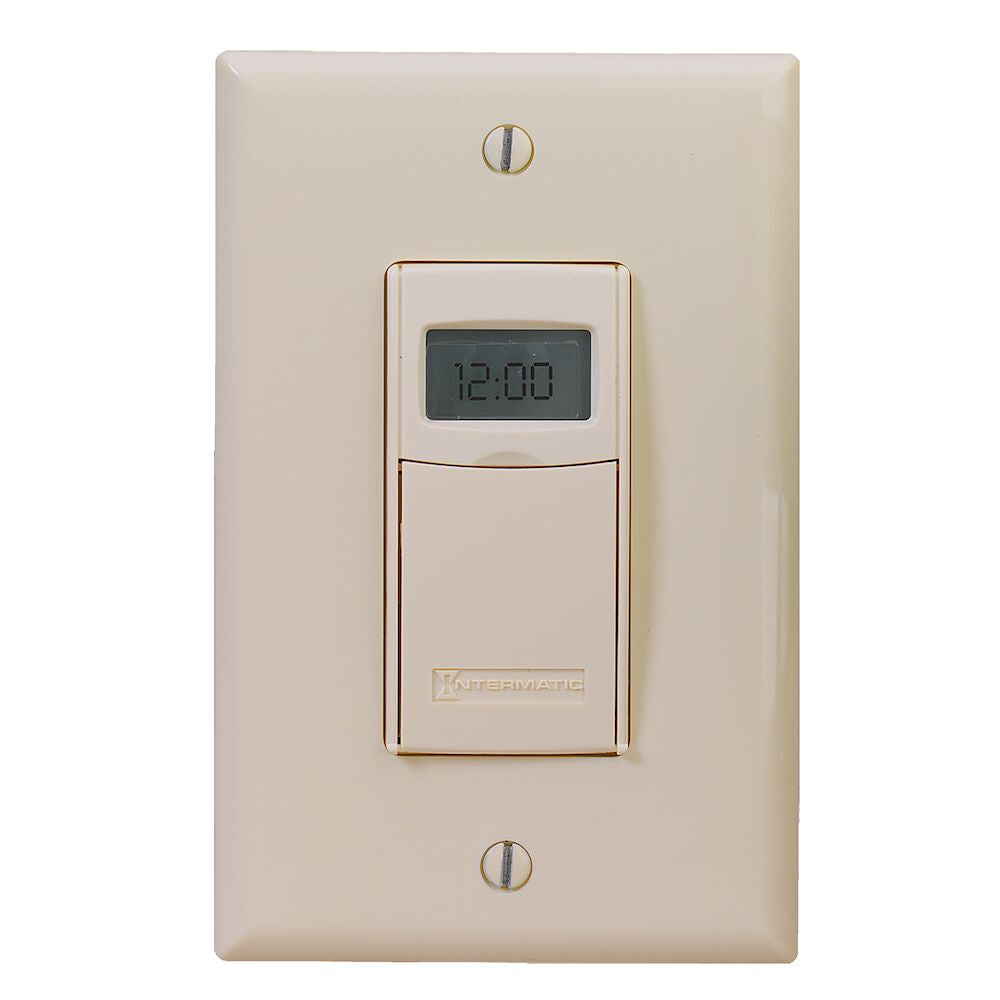

ST01A 7-Day Heavy-Duty Programmable Timer, 120-277 VAC, 15A, Light Almond
$90.05
Current
|
|---|---|
| Brand | INTERMATIC |
| Type | |
| Availability | In stock |
| Rating | No reviews |
Come visit us at Maple Electric Supply for all your electrical needs! Conveniently located at 8520 Jane St, Unit 5, Vaughan, ON L4K 5A9, our team is here to help you find the right products and solutions. Whether you're a contractor or a DIY enthusiast, we’re ready to serve you with top-quality supplies and expert advice.
Great product, takes a beating in the field. thanks Maple.
Honestly, I wasn't expecting much for the price, but these are actually really solid. We bought two to replace those ugly shiny brass fixtures in our hallway from the 90s. These look way more expensive than they are.
The "oil rubbed bronze" is pretty dark, almost black in some light, which is exactly what I wanted. The best part is the glass—it’s thick and has nice marbling swirls, so it hides the lightbulb really well. You don't get that harsh glare in your eyes.
It says it takes up to 100W, which is crazy bright for a sconce. I just put a warm 60W equivalent LED in mine and it’s plenty of light. It casts a nice glow up the wall. Definitely happy with this purchase.
Great product
Very good quality ...
