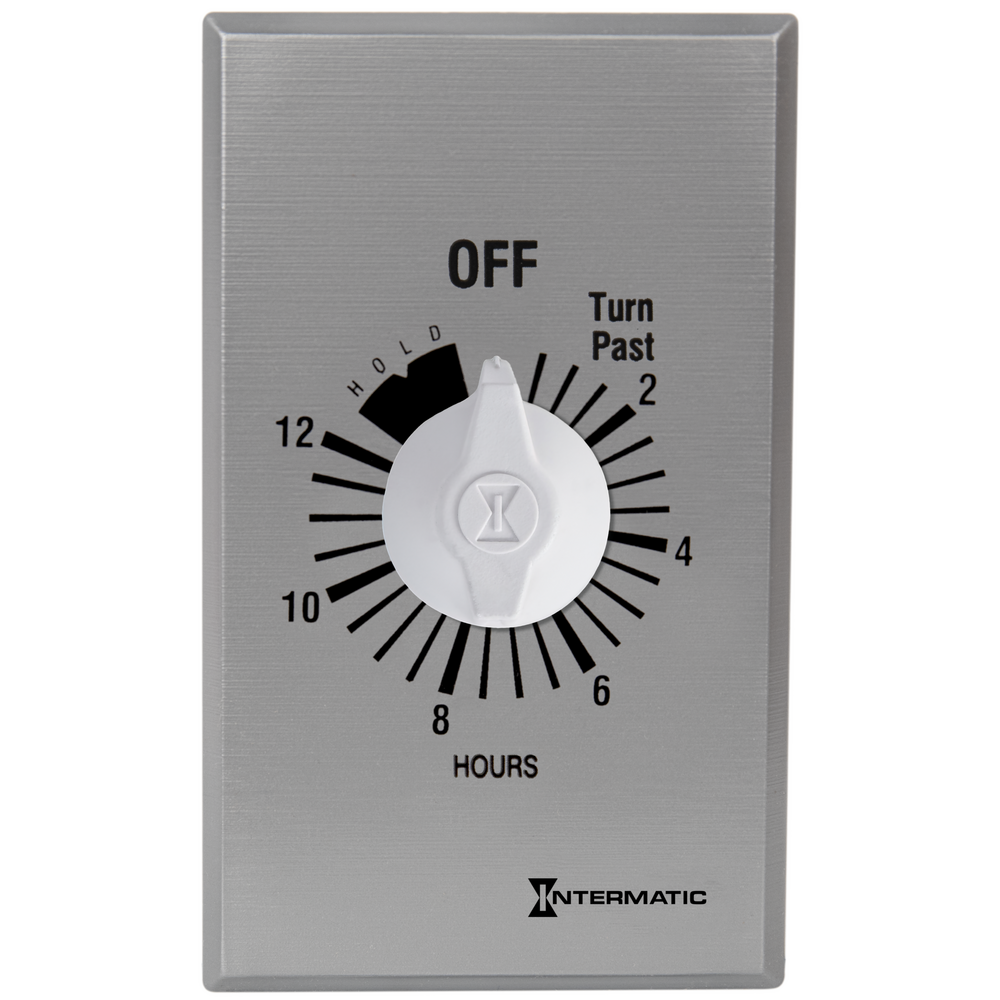

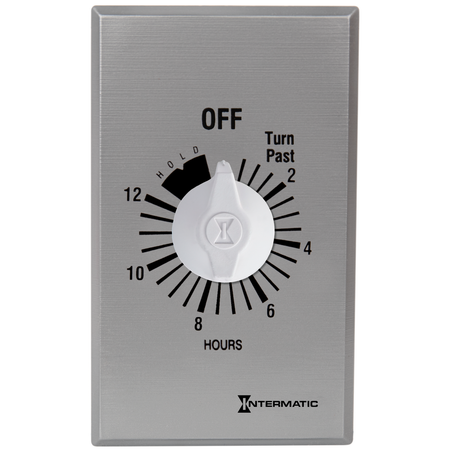

Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST, 12 Hour Max, With Hold, Silver

A commercial spring wound countdown timer with a 12 hour maximum timing range and a HOLD position, SPST, rated 125-277 VAC at 50/60 Hz, in silver with a brushed metal finish. It replaces a standard single-gang wall switch, needs no neutral and no electricity to run the mechanism, and Intermatic supplies it complete with the dial wall plate.

Why the HOLD position is the whole decision

Wind the knob and the timer counts down mechanically and breaks the circuit at the end of the cycle - that is the energy-saving behaviour, and it is why these get specified on washroom fans, storage closets and garage lighting. Turn it the other way into HOLD and the load stays on until somebody comes back and takes it out of HOLD. Cleaners, service techs and anyone painting a room need that. The trade-off is real: a timer left in HOLD is just an on switch, and the load can run all night. If the timer is there to satisfy an automatic-shutoff requirement, confirm with the designer that a HOLD version is acceptable before you install it, because the FF12HC is the same timer without HOLD.

Specifications

Best for: washroom and whole-house exhaust fans, storage closets, garage and storeroom lighting, and whirlpool circuits where staff need a way to hold the load on during cleaning or service.

Common questions

Does this timer need a neutral in the box?
No. Intermatic lists Neutral Connection Required as No, and the mechanism is spring wound, so no electricity is needed to run the timing itself.

Does the FF12HHC come with a wall plate?
Yes. Intermatic lists Includes Wall Plate as Yes and describes a brushed metal look switch plate supplied with the timer, in a silver finish.

Will it work on a 277 volt lighting circuit?
Intermatic gives an input voltage range of 125-277 VAC at 50/60 Hz, and publishes a resistive rating of 10 A, 2770 W, 277 VAC for the device.

Can I use this timer on a sauna or a sun lamp?
No. The Intermatic instruction sheet specifically cautions against precision timing applications where inaccurate timing could have dangerous consequences, naming sun lamps and saunas.
