Weight: 1.1 lb

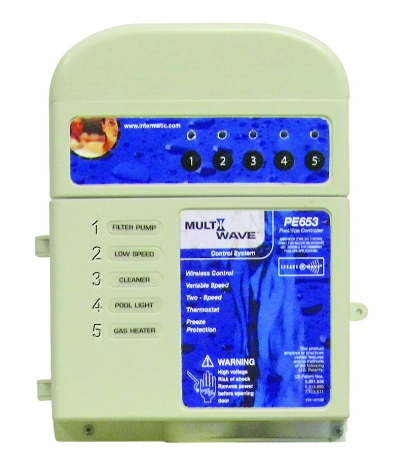

Pool owners moving off mechanical time clocks want pump, heater, lights and spa valves on one wireless system. The Intermatic PE653 is the 5-circuit receiver for Intermatic's MultiWave pool and spa automation: it switches the loads, works with the PE953 hand-held transceiver, and talks to variable-speed pumps, chlorinators and temperature sensors through its RS485 port. Intermatic positions it for upgrading existing mechanical-timer installations.
| Spec | Detail |
|---|---|
| Brand | Intermatic (MultiWave) |
| Model / SKU | PE653 |
| Type | 5-circuit wireless receiver |
| Circuit 1 | 20 A resistive (17 FLA, 80 LRA), 120/240 VAC |
| Circuits 2-5 | 15 A resistive (10 FLA, 60 LRA), 120/240 VAC |
| Control supply | 120/240 VAC, 50/60 Hz, 5 W max |
| Communications | RS485 port |
| Compatible sensors | PA122 water temp, 178PA28A freeze sensor |
| Weight | 5.4 lb |
| Included | Receiver only; PE953 remote sold separately (PE653RC bundle includes it) |
Pro tip from the counter
Put the main filter pump on circuit 1, since it is the only output rated 20 A (17 FLA); circuits 2 to 5 top out at 10 FLA. If the pump or a booster pump's nameplate FLA is higher than the circuit it's landing on, have your electrician drive it through a contactor instead of the receiver relay.
Best for: pool and spa automation upgrades, replacing Intermatic mechanical pool timers, variable-speed pump installs, pool builders and service companies, residential backyard renovations
Ships Canada-wide from our Vaughan, ON location. Pool contractors can get trade pricing through a quote or by calling (905) 553-7171.
