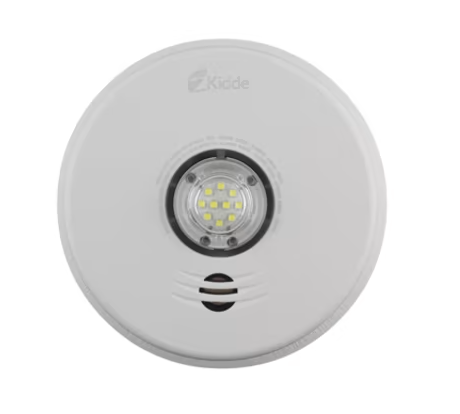

The Kidde P4010ACLEDSCA is an integrated 120 V AC wire-in smoke alarm with 10-year sealed battery backup and LED strobe light that provides temporal patterns, visual and voice warnings. The model P4010ACLEDSCA is equipped with a 177 candela strobe light (powered by Cree® LEDs), designed to notify the deaf and hard of hearing. The unique design measures only 5.8 cm (2.3”) in height, when mounted.
Technical Specifications
| Model: |
P4010ACLEDSCA |
| Power Source: |
120 V AC, 60 Hz, 863 mA max, sealed 3 V lithium battery backup (on smoke alarm only) |
| Sensor: |
Photoelectric |
| Light Output: |
177 candela minimum |
| Flash Rate: |
Smoke: 1 / sec; Interconnected CO: 4 times every 5 sec |
| Audio Alarm: |
85dB at 10ft |
| Temperature Range: |
4.4˚C (40˚F) to 37.8˚C (100˚F) |
| Humidity Range: |
Up to 95% relative humidity (RH), non-condensing |
| Size: |
13 cm diameter x 7.1 cm height (5.8 cm height, when mounted) |
| Weight: |
0.34 kg |
| Interconnects: |
Up to 24 devices |
| Warranty: |
10-year limited |
