Weight: 3.0 lb

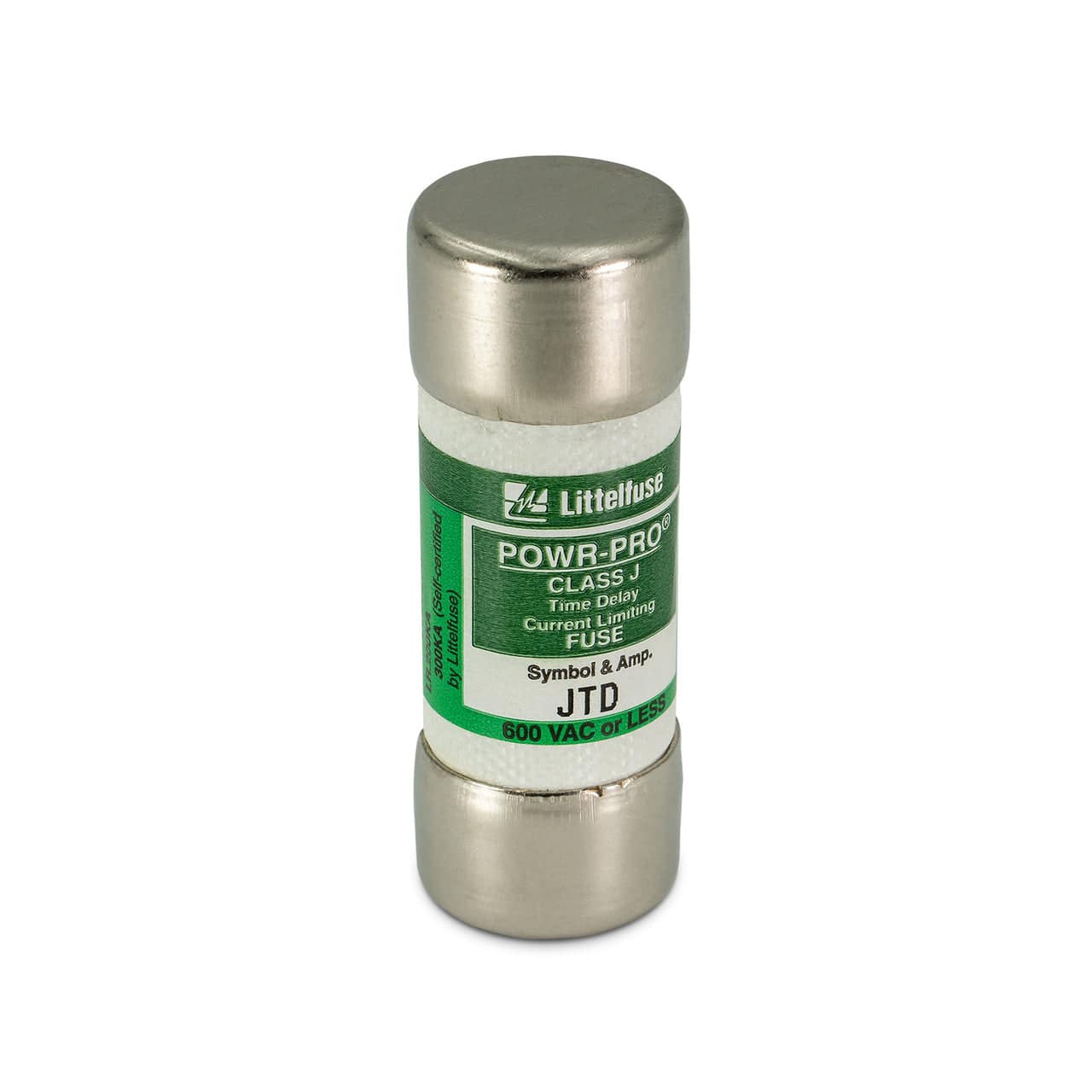

Motor starters, control panels and small transformers need compact current-limiting protection that doesn't blow on inrush. The Littelfuse JTD015 is a 15 A POWR-PRO Class J time-delay, dual-element fuse rated 600 V AC and 300 V DC with a 200 kA interrupting rating. It gives Type 2 no-damage protection to motor circuit components, and this listing is a package of 10.
| Spec | Detail |
|---|---|
| Brand | Littelfuse |
| Model | JTD015 (ordering no. 0JTD015.T) |
| Class / type | UL Class J, time delay, dual element |
| Amperage | 15 A |
| Voltage | 600 V AC / 300 V DC |
| Interrupting rating | 200 kA AC; 20 kA DC |
| Dimensions | 13/16 in dia. x 2-1/4 in, ferrule |
| Standard | UL 248-8 |
| Certifications | UL E81895, CSA LR29862 |
| Package | 10 fuses (manufacturer pack) |
Pro tip from the counter
Every Class J fuse from 1 to 30 A has the same 13/16 x 2-1/4 in body, so a 30 A fuse drops straight into a holder meant for 15 A. Mark the fuse size on the holder or panel door, and have your electrician confirm it against the drawing before a replacement goes in.
Best for: motor control centres and combination starters, control transformer protection, OEM machine panels, plant maintenance spare stock
Downloads: JTD series datasheet (PDF)
Ships across Canada from our Vaughan, ON location. For plant stocking orders, request a quote or call (905) 553-7171.
