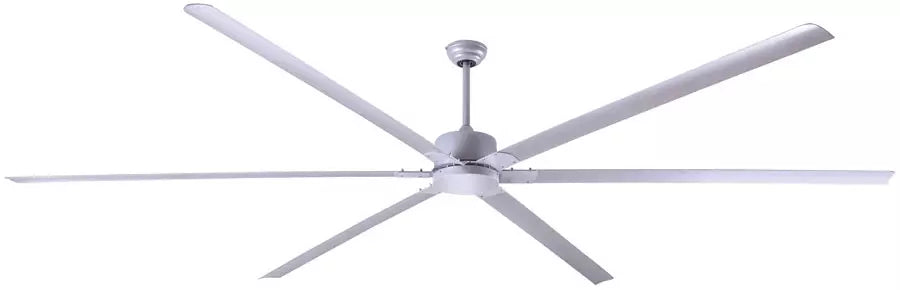

FANBOS CP120PG

General
Size: 120”
Finish: grey, Blades: 6 aluminum blades
Zinc Ball Hanger, 48’’ lead wires, Downrod mount
Downrod mount height: 20 1/4”
Downrod: 12”, OD: 1“ (also available: 24” and 36” downrods)
DC Motor size: 172mm x 22mm, 120Volt
Floor area coverage: 2500 sq.ft. @ 20’
Hand held remote control DCQ 012 with wall mounting bracket
included. Controllable distance is 65 1/2’ (20 meters)
Remote control functions:
 fan: 5 speeds, on/off, fwd/rev
 light: on/off/dimmer, 3 timer options
Available LED light kit: LK-CPPG, 1000 lumens
Performance at High Speed:
69 RPM, 20693 CFM, 335 CFM/W, 61.8 WATTS, 0.9 AMPS
Efficiency: 565 CFM/W
Performance at Low Speed:
32 RPM, 11087 CFM, 1827 CFM/W, 9.1 WATTS, 0.1 APMS
Efficiency: 487 CFM/W
CFEI High/Low Speed | CFM
CP120 - 2.76/16.33 High/Low speed – 20693/11087
Packaging
Colour box: 56.77” x 10.75 x 11.60” (1442 x 273 x 295mm)
Colour box weight: 35.2 lbs (15.97 kgs)
Warranty & Safety Standards
Warranty: Motor - Limited 5 year
 Fixture - Limited 1 year
cCSAus
Rated for damp locations
Fan blades must be at a minimum of 10 feet from the floor
TITLE 20 compliant
