Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, DPST, 30 Minute Max, Without Hold, Silver
Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, DPST, 30 Minute Max, Without Hold, Silver
Intermatic SKU: FF430M Barcode: 078275184350
Intermatic

Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, DPST, 30 Minute Max, Without Hold, Silver

In stock - 9 items available
SKU: FF430M UPC: 078275184350
(0)
$125.65 CAD
-6% $133.39 CAD $125.65 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 0.5 lb

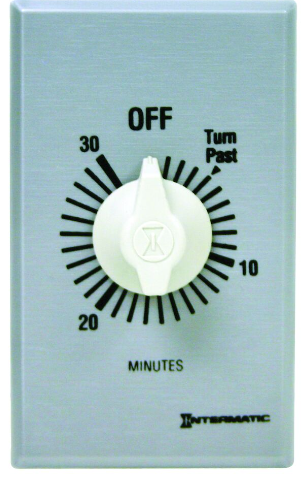

Fans, heaters and lights left running in washrooms, garages and change rooms waste power every day. The Intermatic FF430M is a spring-wound countdown timer that replaces a standard or decorator single-gang wall switch and shuts its load off after up to 30 minutes. Because it is double-pole, it breaks both lines, and it needs no electricity or neutral to run its mechanism. A brushed-metal-look plastic wall plate is included.

Why facility managers and electricians pick it

  • DPST contacts open both ungrounded conductors at the end of the cycle, suited to 240 V loads.
  • Mechanical spring-wound movement: no power or neutral required to time.
  • Rated for resistive, motor and lamp loads from 125 to 277 V AC, 50/60 Hz.
  • Front-facing teeter-type terminals speed up wiring.
  • cCSAus certified; 1-year limited warranty.

Specifications

Spec Detail
Brand Intermatic
Model FF430M
Type Spring-wound countdown timer, commercial, without hold
Timing range Up to 30 minutes
Switch DPST
Voltage 125-277 V AC, 50/60 Hz
Resistive / heater rating 20 A 2500 W at 125 V; 10 A 2500 W at 250 V; 10 A 2770 W at 277 V
Motor rating 1 HP at 125 V; 2 HP at 250 V
Tungsten (incandescent) 7 A, 875 W at 125 V
Neutral Not required
Certification cCSAus
Includes Brushed-metal-look plastic wall plate, silver

Pro tip from the counter

Pick the DPST FF430M for a 240 V baseboard heater, bathroom heater or a 240 V motor on a timer. It opens both hot legs at the end of the cycle, while a single-pole timer would leave one leg energized at the heater.

Best for: 240 V heater and fan timers, commercial washrooms and change rooms, garage and workshop heaters, pool and spa equipment rooms

Stocked in Vaughan, ON and shipped across Canada. Facilities and contractors can request a quote for trade pricing or call (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
