Weight: 1.2 lb
When a control panel carries heavy devices or needs a solid rail for a continuous ground run, a deep non-slotted rail is the stiffer choice. The Techspan DRS35X15NS is a 35 x 15 mm high-profile steel DIN rail with no slots, sold in 2 m (about 6.5 ft) lengths for cutting to size. Terminal blocks, fuse holders, breakers and power supplies with a standard 35 mm top-hat clip mount on it.
| Spec | Detail |
|---|---|
| Brand | Techspan |
| Model | DRS35X15NS |
| Profile | 35 x 15 mm top-hat (high profile) |
| Style | Non-slotted (solid) |
| Material | Steel |
| Length | 2 m (approx. 6.5 ft) |
| Origin | Italy |
Pro tip from the counter
Because the rail has no slots, you drill it only where it needs to be fastened. Mark the holes to line up with the back panel's mounting points, drill and deburr the rail on the bench, and blow it off before it goes into the enclosure so steel chips never end up in terminal blocks.
Best for: control and automation panels, heavy device rows like power supplies and motor starters, fuse holder and terminal rails, OEM machine builders
DIN rail ships Canada-wide from Vaughan, ON. Panel shops get trade pricing through a quote or at (905) 553-7171.
| Feature |

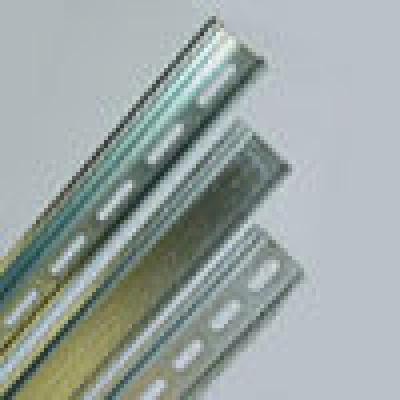

Din rail & fuse holders dinrailsteel 35x15mm non-slotted 2m
$16.72
Current
|
|---|---|
| Brand | Techspan |
| Type | Din Rail & Fuse Holders |
| Availability | In stock |
| Rating | 5.0 / 5 |
Our counter is at 8520 Jane St, Unit 5, Vaughan, ON L4K 5A9, open Monday to Friday, 8am to 4pm. Order online and collect, or bring a material list and we will price it at the counter. Contractors and DIY customers are both welcome.
