Din rail & fuse holders class j fuse holder bus-mntg, sys. 60, o
Din rail & fuse holders class j fuse holder bus-mntg, sys. 60, o
Techspan SKU: 33310 Barcode: 776856110872
Techspan

Din rail & fuse holders class j fuse holder bus-mntg, sys. 60, o

In stock - 10 items available
SKU: 33310 UPC: 776856110872
(0)
$793.92 CAD
-40% $1,323.20 CAD $793.92 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 1.2 lb

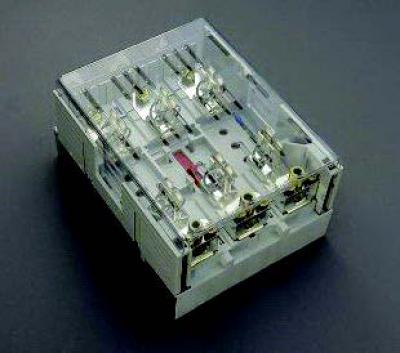

Panel builders using a 60 mm busbar system can mount Class J fusing straight onto the bars instead of wiring separate fuse blocks. Item 33310 is a Wöhner QUADRON 60Classic busbar-mounted fuse holder for Class J cylindrical fuses, 3-pole, rated 200 A and 600 V AC/DC for 41 x 146 fuses. It connects top or bottom and clips onto 12, 20 or 30 x 10 mm busbars.

Why panel builders pick it

  • Mounts directly on the 60 mm busbar system, saving panel space and wiring.
  • Class J fusing up to 200 A at 600 V AC or DC.
  • Top or bottom cable connection to suit the panel layout.
  • 150 mm² terminals for large load conductors.
  • UL and CSA approved, 65 kA SCCR.

Specifications

Spec Detail
Brand Wöhner (supplied by Techspan)
Item 33310 (QUADRON 60Classic)
Fuse type Class J, 41 x 146 mm
Rating 200 A, 600 V AC/DC
Poles 3
Mounting Busbar, 60 mm system; bars 12, 20, 30 x 10 mm and profile rails
Connection Top or bottom; 150 mm² terminals, copper only
SCCR 65 kA
Approvals UL, CSA
Size / weight 210 x 268 x 117 mm; 5.08 kg
Status Discontinued by Wöhner; successor 33403

Pro tip from the counter

Wöhner states these terminals are not suitable for aluminum cable. If the load conductors on this feeder are aluminum, plan a copper transition or pick a holder rated for aluminum before the panel is built, since swapping terminations after inspection is costly.

Best for: industrial control panels on 60 mm busbar systems, Class J feeder protection, OEM machine panels, replacing existing 60Classic fuse holders
