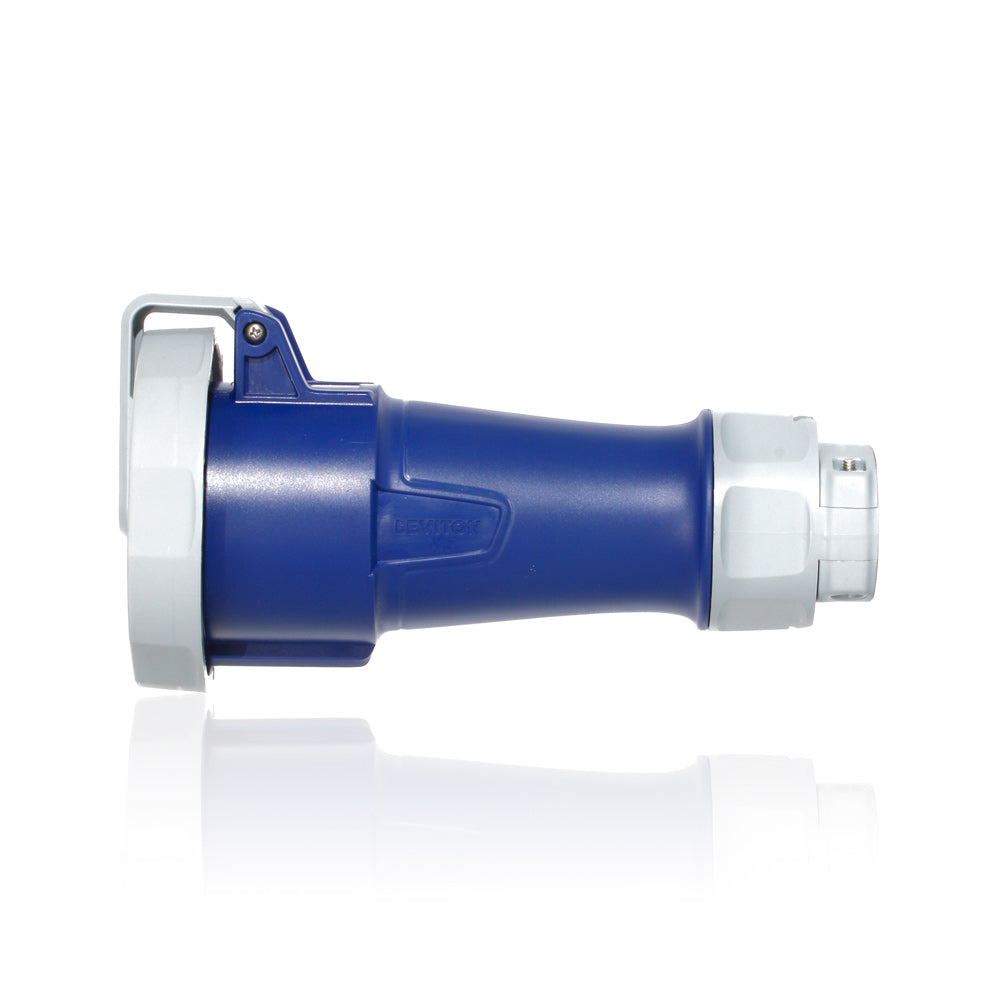

430C9WLEV LEV Series IEC Pin & Sleeve Connector 30/32 Amp, 250 Volt 3-Phase, 3P, 4W
430C9WLEV LEV Series IEC Pin & Sleeve Connector 30/32 Amp, 250 Volt 3-Phase, 3P, 4W
Leviton SKU: 430C9WLEV
Leviton

430C9WLEV LEV Series IEC Pin & Sleeve Connector 30/32 Amp, 250 Volt 3-Phase, 3P, 4W

In stock - 9 items available
SKU: 430C9WLEV
(0)
$476.25 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 2.0 lb

Electrical Specification

Amperage30/32 A
Current InterruptingCertified for current interrupting at full-rated current and voltage
Dielectric Voltage3000V for 1 min.
Endurance1000 cycles rated V and I load, 1000 cycles no-load (30A)
Horsepower Rating3 HP
Max. Voltage600V
Overload UL20 Test50 cycles
Phase3-Phase
Pole3
SCCR200kA
Temperature RiseMax 30°C rise at full rated current (after overload)
Voltage250 VAC
Wire4

Environmental Specifications

Corrosion ResistanceSalt fog tested
FlammabilityRated V-0 (Contact Carrier), HB or better (Housing) per UL94
IP RatingIP66, IP67, IP68, IP69K
NEMA Enclosure Type3R, 4X, 6P and 12
NSF14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
UV ResistanceUV stabilized F1 rated housings

Material Specifications

Assembly Screws303 Stainless Steel
Contact CarrierGlass filled Nylon
Grommet/GasketNBR/Buna N
HousingImpact Modified Nylon
Terminal Screws303 Stainless Steel

Mechanical Specifications

Cable Clamp Screw Torque10 in-lb
Conductor Range#10 AWG to #8 AWG
Contact Carrier Assembly Screw Torque8 in-lb
Crush Test250 lbs for 1 min after -25°C for 6 hrs
Hardware Head TypeHex style socket screws for terminals, combination screws for all others
ImpactDrop from 30" 8 times after conditioning to -25°C, for 6 hours; Drop from 72" after conditioning to -35°C, for 6 hours
Screw Terminal Torque20 in-lb

Product Features

Clock Position9 o'clock
ColorBlue
ConfigurationNorth American
Device TypeConnector
Product MarkingsBrand, UL, CE and environmental ratings molded in. Item number, ampacity, voltage, phases, HP, NSF on label. IEC 60309-1, -2 Dual Ratings on separate label.
SeriesLEV Series

Standards and Certifications

CECE certification
CSACSA C22.2 No 182.1-13 (Harmonized with UL 1682)
IEC Rating60309-1, 60309-2
NOMNOM –ANCE standards
RoHSRoHS compliant components
ULUL 1686 C2, UL 1682, UL Classified to IEC 60309-1, 60309-2

Warranty

Warranty5-Year Limited
