Weight: 1.2 lb
Building or repairing a machine control station needs an emergency stop that latches down and stays down until someone deliberately resets it. The Techspan PB-BS44 is a red 30 mm mushroom head, turn-to-release operator from Techspan's 22.5 mm metal push button series with a chromium plated bezel. Note that this is the operating head only; control panel builders add a body and contact block to complete it.
| Spec | Detail |
|---|---|
| Brand | Techspan |
| Model | PB-BS44 |
| Type | Mushroom head push button operator, turn to release |
| Knob size / colour | 30 mm / red |
| Series | Control and signalling units, 22.5 mm metal, chromium plated bezel |
| Included | Operating head only |
| Required (sold separately) | Body/contact assembly, e.g. PB-BE102 NC or PB-BE101 NO contact block |
| Related sizes | PB-BS54 (40 mm), PB-BS64 (60 mm) |
Pro tip from the counter
Wire the stop circuit through a normally closed contact block such as the PB-BE102, not a normally open one. With NC contacts, a broken wire or a loose terminal stops the machine the same way pressing the button does, instead of silently leaving the e-stop dead until the day someone needs it.
Best for: machine control panels, conveyor and pump stations, OEM equipment builds, replacing worn e-stop operators
Ships from Vaughan, ON across Canada. Panel shops can get trade pricing through a quote or at (905) 553-7171.
| Feature |

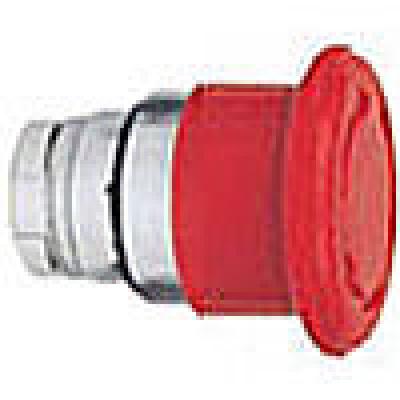

Techspan - metallic e-stop push button; red; twist to release; 30mm
$13.45
Current
|
|---|---|
| Brand | Techspan |
| Type | Push Buttons |
| Availability | In stock |
| Rating | 5.0 / 5 |
Our counter is at 8520 Jane St, Unit 5, Vaughan, ON L4K 5A9, open Monday to Friday, 8am to 4pm. Order online and collect, or bring a material list and we will price it at the counter. Contractors and DIY customers are both welcome.
