Weight: 1.1 lb

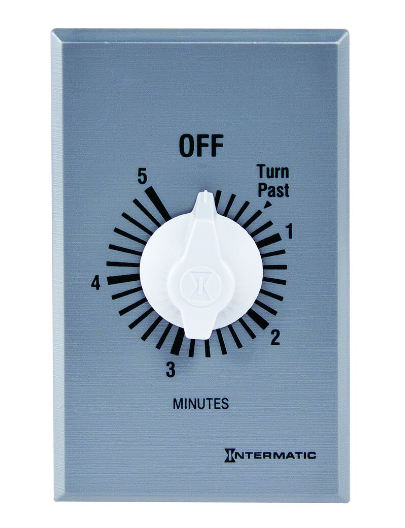

Short runs of light or ventilation, such as a stairwell light, a closet or a quick exhaust purge, rarely need more than a few minutes. The Intermatic FF5M is a single-pole spring-wound countdown timer with a 5 minute maximum that replaces a single-gang wall switch. It has no electronics, needs no neutral, and turns the load off at the end of the cycle. A brushed-metal-look plastic plate comes with it.
| Spec | Detail |
|---|---|
| Brand | Intermatic |
| Model | FF5M |
| Type | Spring-wound countdown timer, commercial, without hold |
| Timing range | Up to 5 minutes |
| Switch | SPST |
| Voltage | 125-277 V AC, 50/60 Hz |
| Resistive / heater rating | 20 A 2500 W at 125 V; 10 A 2500 W at 250 V; 10 A 2770 W at 277 V |
| Motor rating | 1 HP at 125 V; 2 HP at 250 V |
| Tungsten (incandescent) | 7 A, 875 W at 125 V |
| Neutral | Not required |
| Certification | cCSAus |
Pro tip from the counter
Because the mechanism is spring-driven and needs no neutral, the FF5M is a clean retrofit in older switch boxes that only have a switch loop. There is no need to fish a new cable just to add a timer.
Best for: stairwell and hallway lights, storage closets and janitor rooms, short exhaust fan runs, retrofits in boxes without a neutral
We ship Canada-wide from Vaughan, ON. For contractor and facility pricing, ask for a quote or call (905) 553-7171.
| Feature |
Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST, 5 Minute Max, Without Hold, Silver
