Weight: 0.5 lb

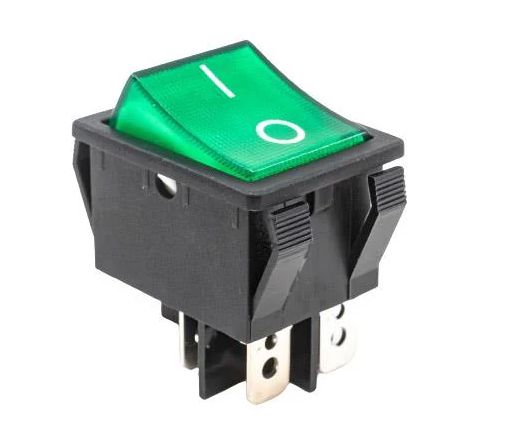

Equipment panels, heaters, pumps and shop machines need a power switch that breaks both line conductors and shows at a glance when the unit is on. The E-Switch R5BBLKGRNFF1 is an R5 Series illuminated DPST on-off rocker switch with a green neon-lit actuator in a black housing, rated 20 A at 125 VAC. It snaps into a 30 x 22 mm panel cutout and wires with 0.250 in quick-connect terminals.
| Spec | Detail |
|---|---|
| Brand | E-Switch (R5 Series) |
| Model | R5BBLKGRNFF1 |
| Circuit | DPST, on-off, illuminated |
| Housing / actuator | Black / green, I/O marking |
| Lamp | Neon, 125 VAC |
| Ratings | 20 A 125 VAC, 3/4 HP (UL); 16 A 250 VAC, 1 HP (VDE) |
| Panel cutout | 30 x 22 mm, snap-in |
| Terminals | 0.250 in quick connect |
| Operating temperature | -20°C to 55°C |
| Approvals | UL, ENEC; RoHS |
Pro tip from the counter
The last digit, 1, means a 125 VAC neon lamp. On 208-240 V equipment the switch contacts are still fine at 16 A, but the lamp won't be right for that voltage, so order the version with E-Switch's 250 V lamp for those machines instead of this one.
Best for: equipment and machine power switches, heater and pump control panels, OEM and appliance repair, workshop builds
Downloads: R5 Series product page
Ships across Canada from Vaughan, ON. Need a production quantity? Request a quote or call (905) 553-7171.
