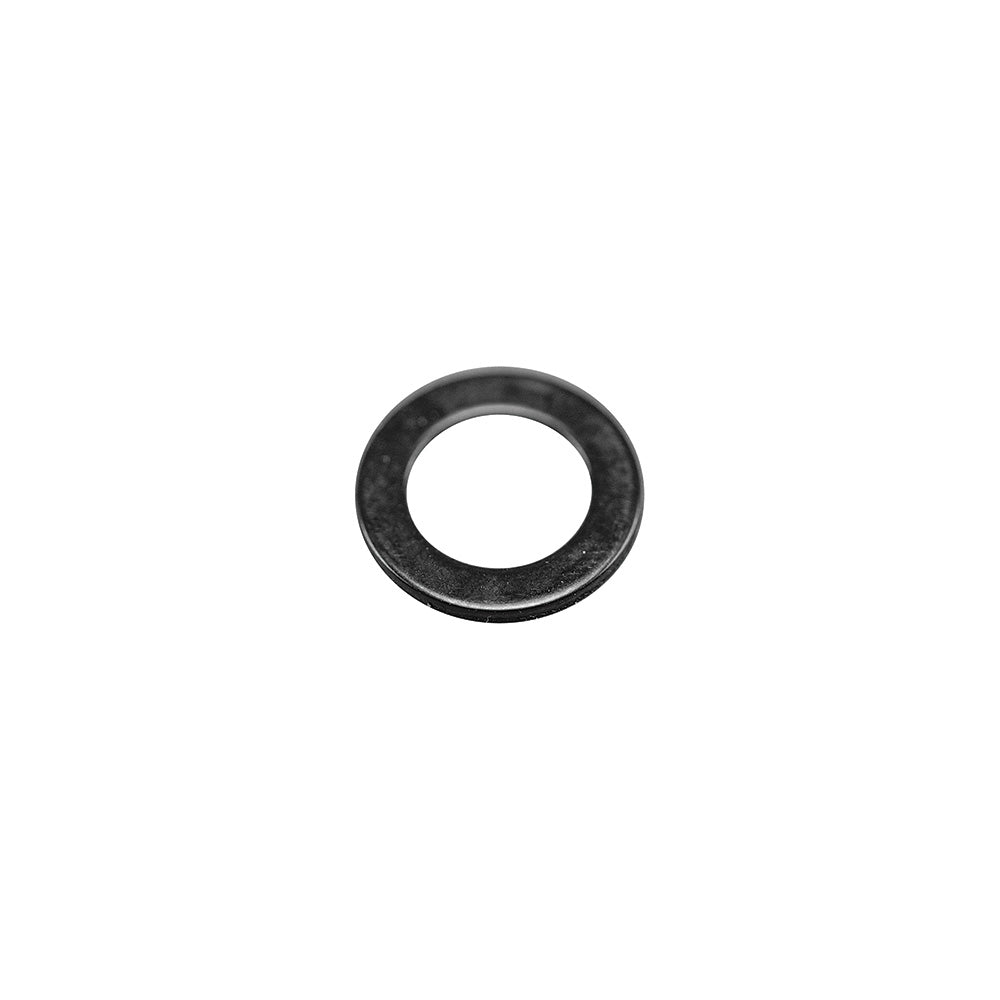

Replacement Washer for Cable Cutter 63041

A replacement washer for Klein's Standard Cable Cutter, Cat. No. 63041, supplied on its own so a worn pivot can be rebuilt part by part. It sits between the pin-set nut and the head, and it is the quiet reason the nut holds the tension you dialled in.

Why the washer is not spare hardware

A cable cutter pivot is a clamped joint that has to survive thousands of full-force closings. The washer spreads the nut's load across a flat face instead of letting it bite into forged steel. Once it cups, galls or picks up a burr, the clamp relaxes a fraction of a turn every few cuts — and a fraction of a turn is the whole difference between a clean shear and a flattened end that will not take a lug. Replace it whenever you have the joint apart for the nut or the cotter pin.

Specifications

Best for: anyone stripping the pivot on a 63041 cable cutter and refusing to put a tired washer back into a joint they just opened.

Common questions

What does the washer actually do in the pivot?
Klein lists it simply as the replacement washer for the 63041. In a bolted pivot the washer gives the nut a flat bearing face, so the joint holds the tension you set instead of digging into the head.

Can I just reuse the old washer?
If it is still flat, unworn and not dished, yes. A washer that has cupped or picked up a burr lets the nut relax under load, which is exactly the fault you were trying to cure.

Will it fit the 63045 or 63047 cutters?
Klein lists this washer for the Cable Cutter Cat. No. 63041. The 63045 and 63047 cutters carry their own replacement head numbers, so confirm what is stamped on the tool in your hand.

Do I need special tools to change it?
No. Pull the cotter pin, back the nut off the centre bolt, swap the washer, then reset blade tension and fit a fresh pin before the tool goes back in the truck.
