Home » Premium 2ft DLC v4.0 LED Linear Highbay by [Manufacturer Name] - 162W, 21222lm, 0-10V Dimmable, 4000K, 120-277V for Superior Lighting Performance
Premium 2ft DLC v4.0 LED Linear Highbay by [Manufacturer Name] - 162W, 21222lm, 0-10V Dimmable, 4000K, 120-277V for Superior Lighting Performance
Premium 2ft DLC v4.0 LED Linear Highbay by [Manufacturer Name] - 162W, 21222lm, 0-10V Dimmable, 4000K, 120-277V for Superior Lighting Performance
EiKO SKU: LLH-2C-40K-U Barcode: 031293097712
EiKO

Premium 2ft DLC v4.0 LED Linear Highbay by [Manufacturer Name] - 162W, 21222lm, 0-10V Dimmable, 4000K, 120-277V for Superior Lighting Performance

In stock
SKU: LLH-2C-40K-U UPC: 031293097712
(0)
$260.77 CAD
-40% $434.61 CAD $260.77 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 17.23 lb

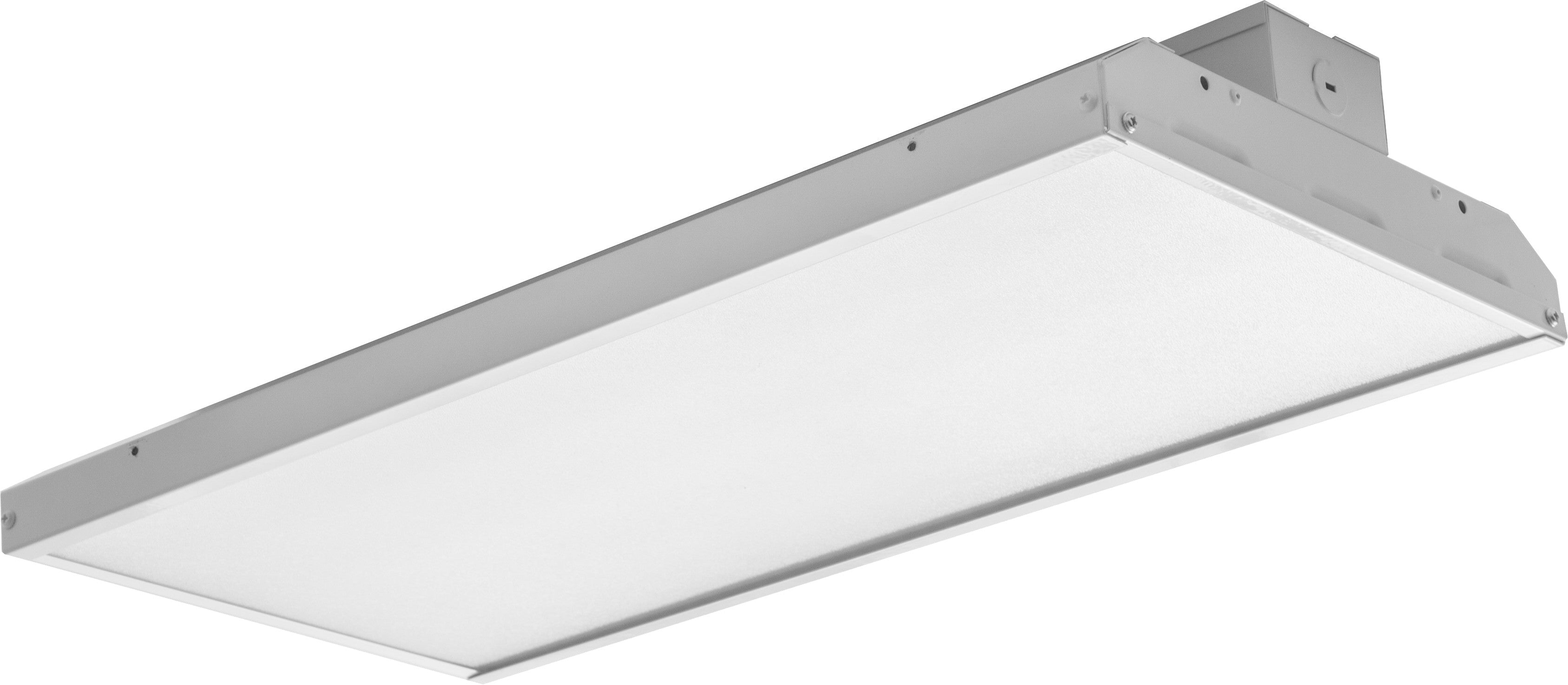

Warehouses, gyms and manufacturing bays still running 250 to 400 W metal halide or multi-lamp fluorescent high bays are prime candidates for this fixture. The EiKO LLH-2C-40K-U (item 09771) is a 2 ft LitespanLED linear high bay that draws 162 W for 21,222 lumens at 4000K, with a frosted lens, 0-10 V dimming and a 120-277 V input. EiKO lists it as DLC Premium qualified.

Why facility managers pick it

  • About 131 lumens per watt; EiKO rates it to replace 250 to 400 W HID or 8-lamp T8 / 6-lamp T5HO fixtures.
  • Universal 0-10 V driver for continuous dimming and sensor control.
  • Heavy-gauge steel body with a welded frame resists twisting and bowing.
  • 10 ft Y-toggle aircraft cable hanging hardware is included.
  • UL listed for damp locations, rated -30 to 50 degrees C, so it suits cold storage.
  • Rated L70 over 100,000 hours at 40 degrees C, with a 5-year limited warranty.

Specifications

Spec Detail
Brand EiKO (LitespanLED)
Item # / model 09771 / LLH-2C-40K-U
Length 2 ft
Wattage / lumens 162 W / 21,222 lm
CCT / CRI 4000K / 80+
Input / dimming 120-277 V / 0-10 V
Lens Frosted acrylic (clear lens sold separately)
Mounting 10 ft Y-toggle aircraft cable included
Listing UL listed, damp location; DLC Premium
Operating temperature -30 to 50 degrees C
Warranty 5-year limited

Pro tip from the counter

Run the circuit math before you pick the voltage: at 162 W each fixture draws about 1.35 A on 120 V but only about 0.58 A on 277 V, so a 15 A breaker loaded to 80 percent carries roughly 8 fixtures at 120 V versus about 20 at 277 V, which can halve the home runs in a big warehouse.

Best for: warehouses and distribution centres, manufacturing plants, gymnasiums, cold storage, big box retail

Downloads: Spec sheet (PDF)

Ships across Canada from Vaughan, ON. Send us a quote or call (905) 553-7171 for project pricing on high bay retrofits.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
