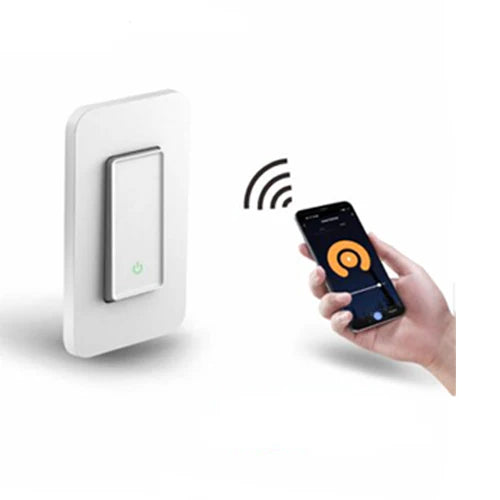

Hallways and staircases with two switch locations are where a smart upgrade gets tricky. The NEXLEDS NX-SSW-3 is a Wi-Fi smart switch built for 3-way control, with a relay output rated at 15 A and a 100-240 VAC, 60 Hz input. It connects over 2.4 GHz Wi-Fi so the lights can be controlled from a phone as well as the wall.

Why installers pick it

  • 3-way switch type for lights controlled from two locations.
  • Relay control handles on/off switching up to 15 A maximum current.
  • Wi-Fi 802.11 b/g/n on 2.4 GHz, with no separate hub listed.
  • Low standby draw of 0.5 W or less.
  • Button rated for 50,000 presses.

Specifications

Spec Detail
Brand NEXLEDS
Model NX-SSW-3
Input power 100-240 VAC, 60 Hz
Control Relay
Switch type 3-way
Max current 15 A
Communication Wi-Fi 802.11 b/g/n, 2.4 GHz
Standby power 0.5 W or less
Button life 50,000 cycles
Dimensions 105 x 45 x 42.5 mm

Pro tip from the counter

The body is 42.5 mm deep, and a 3-way box usually already holds travellers and splices, so have your electrician check box fill before trimming out; a shallow old-work box may need an extension ring or a deeper box to close up without crushing conductors.

Best for: hallways and staircases, rooms with two entrances, smart-home lighting retrofits, rental unit upgrades

Ships across Canada from Vaughan, ON. Contractors can ask for volume pricing via a quote or (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
