lrdkit10ra240
ƒ?› 120vac or 240vac supply types with 6 inputs + 4 outputs

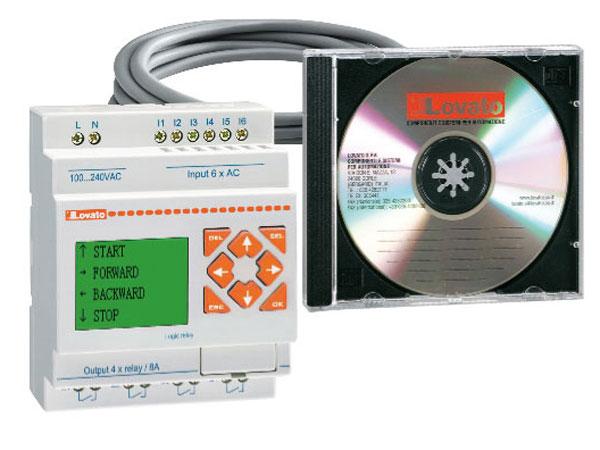

LRD starter kit complete with LRD10RA240 base module, LRXSW software and LRXC00 cable
| Order code | LRDKIT10RA240 |
|---|---|
| Weight [g] | 426 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 127X079X155 |
| Volume [cm³] | 1555.115 |
| Bar code [EAN13] | 8013975150856 |
| HS Code | 85234920 |
| Product designation | Starter kit complete with LRD12RA240 base module, LRXSW software and LRXC03 cable | |||
| Product type designation | LRDKIT10RA240 | |||
| Auxiliary supply voltage | 100…240VAC | |||
| Number of inputs | Nr. | 6 digital | ||
| Number of outputs | Nr. | 4 relay | ||
| Max I/O number | 10 (6 inputs + 4 outputs) up to 34 with LRE modules | |||
| Power supply | ||||
| Rated auxil. supply voltage | 100…240VAC | |||
| Operating voltage range | 85…265VAC | |||
| Operating frequency range | Hz | 47…63 | ||
| Avarage current consumption | mA | 100 | ||
| Power consumption Max | W | 7.5 | ||
| Digital inputs | ||||
| Number of digital input | Nr. | 6 | ||
| Rated voltage | V | 100-240VAC (50/60Hz) | ||
| Input signals | ||||
| State 0 (OFF) | <40VAC | |||
| State 1 (ON) | >79VAC | |||
| Response time | ||||
| 0 to 1 (OFF-ON) | 50/45ms (Ue=120VAC); 22/18ms (Ue=240VAC) | |||
| 1 to 0 (ON-OFF) | 50/45ms (Ue= 120VAC); 90/85ms (Ue= 240VAC) | |||
| Digital outputs | ||||
| Number of digital output | Nr. | 4 | ||
| type | Relay | |||
| System resources | ||||
| Display | LCD display, 4 lines x 16 characters | |||
| Connections | ||||
| Terminals type | Screw | |||
| Tightening torque for terminals | ||||
| max | Nm | 0.6 | ||
| Max | Ibft | 0.4 | ||
| Conductor section | ||||
| AWG/Kcmil | ||||
| min | 26 | |||
| max | 14 | |||
| IEC | ||||
| min | mm² | 0.14 | ||
| max | mm² | 2.5 | ||
| Ambient conditions | ||||
| Temperature | ||||
| Operating temperature | ||||
| min | °C | -20 | ||
| max | °C | +55 | ||
| Storage temperature | ||||
| min | °C | -40 | ||
| max | °C | +70 | ||
| Relative humidity | % | 20...90% without condensation | ||
| Housing | ||||
| Mounting | 35mm DIN rail or screw fixing (M4x20mm) | |||
| Degree of protection | IP20 | |||

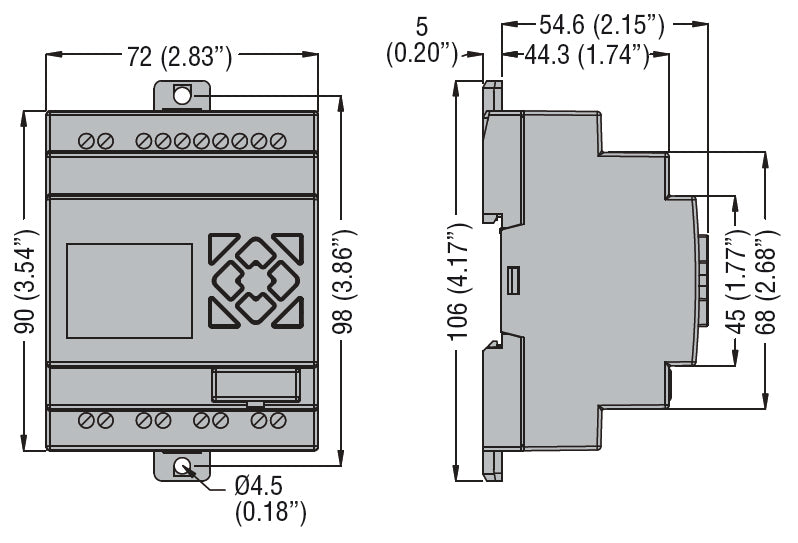

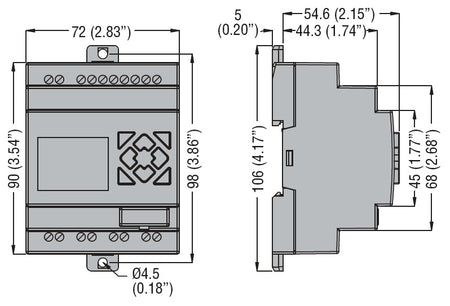

| Dimensions (W x H x D) | mm | 72 x 106 x 59.6 | ||
| Weight | g | 424 | ||
| ETIM classification | ||||
| ETIM 8.0 | EC002581 - PLC device set | |||
8013975150856
| Feature |
Micro PLC Starter Kits 120-240VAC
$210.60
Current
|
|---|---|
| Brand | Lovato |
| Type | Automation and Control |
| Availability | In stock |
| Rating | No reviews |
