MAN. MOTOR STARTER 13-18A W/ENCLOS. TYPE 4X
MAN. MOTOR STARTER 13-18A W/ENCLOS. TYPE 4X
Lovato SKU: SM1P1800KIT Barcode: SM1P1800KIT
Lovato

MAN. MOTOR STARTER 13-18A W/ENCLOS. TYPE 4X

In stock - 10 items available
SKU: SM1P1800KIT UPC: SM1P1800KIT
(0)
$113.80 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 5.0 lb

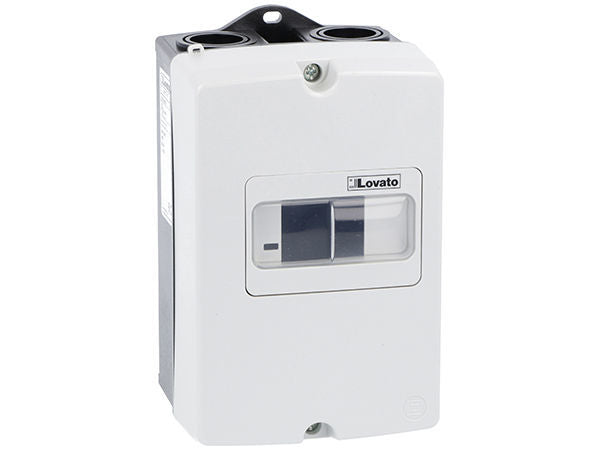

Pumps, fans and conveyors in wet or wash-down areas need motor protection and a local start/stop right at the machine. The Lovato SM1P1800KIT pairs an SM1P1800 push-button manual motor starter (motor protection circuit breaker), adjustable from 13 to 18 A, with a Type 4X enclosure. The breaker gives thermal overload, magnetic short-circuit and phase-failure protection in one device.

Why maintenance electricians pick it

  • Thermal overload adjustable 13-18 A, magnetic trip at 13 x In.
  • Trip class 10 with phase failure sensitivity against single-phasing.
  • UL/CSA HP ratings up to 5 HP at 208/240 V and 10 HP at 480 V three-phase.
  • Type 4X enclosure for wash-down, corrosive and outdoor locations.
  • cULus marked; conforms to UL 508 and CSA C22.2 No. 14.

Specifications

Spec Detail
Brand Lovato Electric
Model SM1P1800KIT (SM1P1800 breaker + enclosure)
Device 3-pole manual motor starter / MPCB, push button
Thermal adjustment 13 to 18 A
Magnetic trip 13 x In
Trip class 10A, phase failure sensitive
HP ratings (UL/CSA) 1 HP 120 V 1-ph; 3 HP 240 V 1-ph; 5 HP 208 V and 240 V 3-ph; 10 HP 480 V 3-ph
Rated insulation voltage 690 V
Breaking capacity (IEC Icu) 25 kA at 400 V
Terminal wire range 16 to 8 AWG
Enclosure Type 4X
Operating temperature -20 to +60 C (breaker)

Pro tip from the counter

On a single-phase motor, have the electrician route the circuit through all three poles in series, for example line through pole 1, jumper pole 1 load to pole 2 line, and so on. Using only two poles leaves the third without current, and the phase-failure detection can read that as a lost phase and trip the starter.

Best for: pumps and fans in wash-down areas, conveyors and packaging lines, outdoor motor disconnects, food and beverage plants, small 480 V motors

Ships Canada-wide from Vaughan, ON. Plant and contractor accounts can get pricing through a quote or by calling (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
