MAN. MOTOR STARTER 1-1.6A W/ENCLOS. + E-STOP TYPE 4X
MAN. MOTOR STARTER 1-1.6A W/ENCLOS. + E-STOP TYPE 4X
Lovato SKU: SM1P0160EKIT
Lovato

MAN. MOTOR STARTER 1-1.6A W/ENCLOS. + E-STOP TYPE 4X

In stock - 9 items available
SKU: SM1P0160EKIT
(0)
$122.35 CAD
-26% $165.00 CAD $122.35 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 5.0 lb

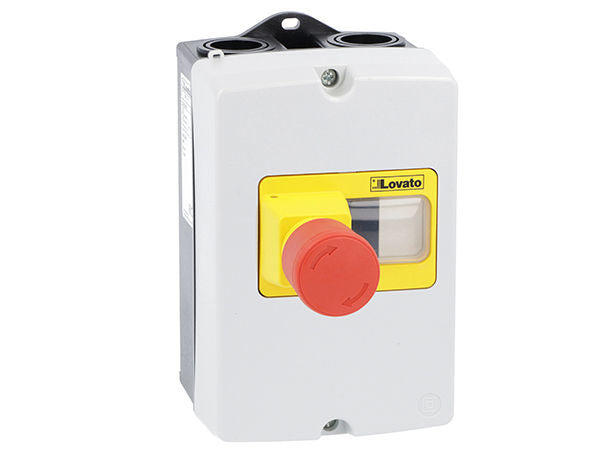

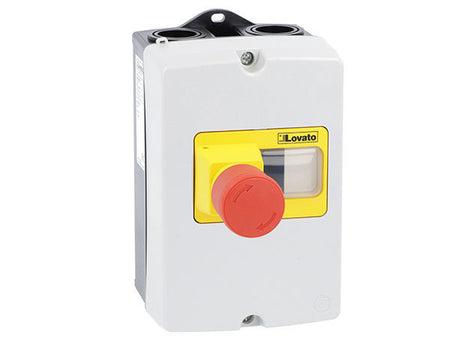

Small pumps, fans and conveyors often need overload protection and an emergency stop right at the machine. The Lovato SM1P0160EKIT pairs an SM1P0160 push-button manual motor starter (motor protection circuit breaker), adjustable from 1 to 1.6 A, with an SM1Z1712P surface-mount enclosure rated IP65 / UL Type 4X that carries an emergency stop button. It is a ready-to-mount enclosed starter for wet, wash-down and outdoor locations.

Why maintenance electricians pick it

  • Thermal overload adjustable 1 to 1.6 A with magnetic short-circuit protection.
  • Trip class 10A with phase failure detection.
  • Emergency stop button built into the enclosure.
  • IP65 / UL Type 4X enclosure rated -25°C to +60°C.
  • cULus; breaker complies with UL 508 and CSA C22.2 No. 14.

Specifications

Spec Detail
Brand Lovato Electric
Model SM1P0160EKIT (SM1P0160 + SM1Z1712P)
Device 3-pole manual motor starter / MPCB, push button
Thermal adjustment 1 to 1.6 A
Trip class 10A, phase failure sensitive
UL/CSA HP rating (3-phase) 3/4 HP at 440-480 V; 1 HP at 550-600 V
Breaking capacity (IEC Icu) 100 kA at 230-690 V
Enclosure SM1Z1712P surface mount, IP65 / UL Type 4X, with emergency stop button
Enclosure width 100 mm
Operating temperature -25°C to +60°C
Approvals cULus; UL 508, CSA C22.2 No. 14

Pro tip from the counter

The e-stop and the breaker handle only open the load side; the line terminals inside the enclosure stay live from the feeder. Before anyone opens the cover or works on the motor, lock out the upstream disconnect or breaker. Pressing the e-stop is not a lockout.

Best for: 600 V pumps and fans, conveyors and small process motors, wash-down and outdoor machine locations, OEM and maintenance replacements

Ships across Canada from Vaughan, ON. For multiple starters or other ranges, get trade pricing with a quote or at (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
