Home » MAN. MOTOR STARTER 0.16-0.25A W/ENCLOS. TYPE 4X
MAN. MOTOR STARTER 0.16-0.25A W/ENCLOS. TYPE 4X
MAN. MOTOR STARTER 0.16-0.25A W/ENCLOS. TYPE 4X
Lovato SKU: SM1P0025KIT Barcode: SM1P0025KIT
Lovato

MAN. MOTOR STARTER 0.16-0.25A W/ENCLOS. TYPE 4X

Only 1 left
SKU: SM1P0025KIT UPC: SM1P0025KIT
(0)
$89.65 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 5.0 lb

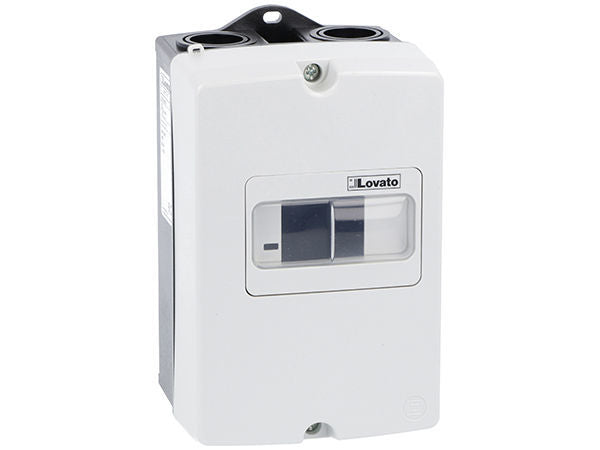

Very small three-phase motors on fans, pumps and conveyors still need overload protection and a local on/off. The Lovato SM1P0025KIT is a manual motor starter kit that pairs an SM1P0025 push-button motor protection circuit breaker, adjustable from 0.16 to 0.25 A, with an SM1Z1711P surface-mount enclosure rated IP65 and Type 4X. It gives maintenance crews an enclosed manual motor starter in one part number.

Why maintenance electricians pick it

  • Adjustable 0.16 to 0.25 A thermal setting for small fractional motors.
  • Phase-loss detection helps protect three-phase motors from single phasing.
  • IP65 / Type 4X surface enclosure suits wet or washdown areas.
  • Push-button start and stop right at the machine.
  • cULus listed components; IEC Icu 100 kA at 400 V.

Specifications

Spec Detail
Brand Lovato Electric
Kit SM1P0025KIT
Components SM1P0025 manual motor starter + SM1Z1711P enclosure
Poles 3
Setting range 0.16 to 0.25 A
Control Push button
Trip class 10A (IEC)
Phase-loss detection Yes
Enclosure Surface mount, IP65 / Type 4X, 100 mm wide
Enclosure operating temperature -25 to +60°C
Certifications cULus; UL 508, CSA C22.2 No. 14; not UL Type E

Pro tip from the counter

Lovato lists the SM1P as not UL Type E, so in North America treat it as a manual motor controller with overload protection, not as the branch-circuit protection. Have the electrician put fuses or a breaker upstream, sized per the CEC, and set the dial to the motor nameplate FLA.

Best for: small conveyor and fan motors, dosing and sump pumps, washdown areas, OEM machine retrofits

Ships across Canada from Vaughan, ON. For plant quantities, request pricing through a quote or (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
