Weight: 10.0 lb
Order Code:15129

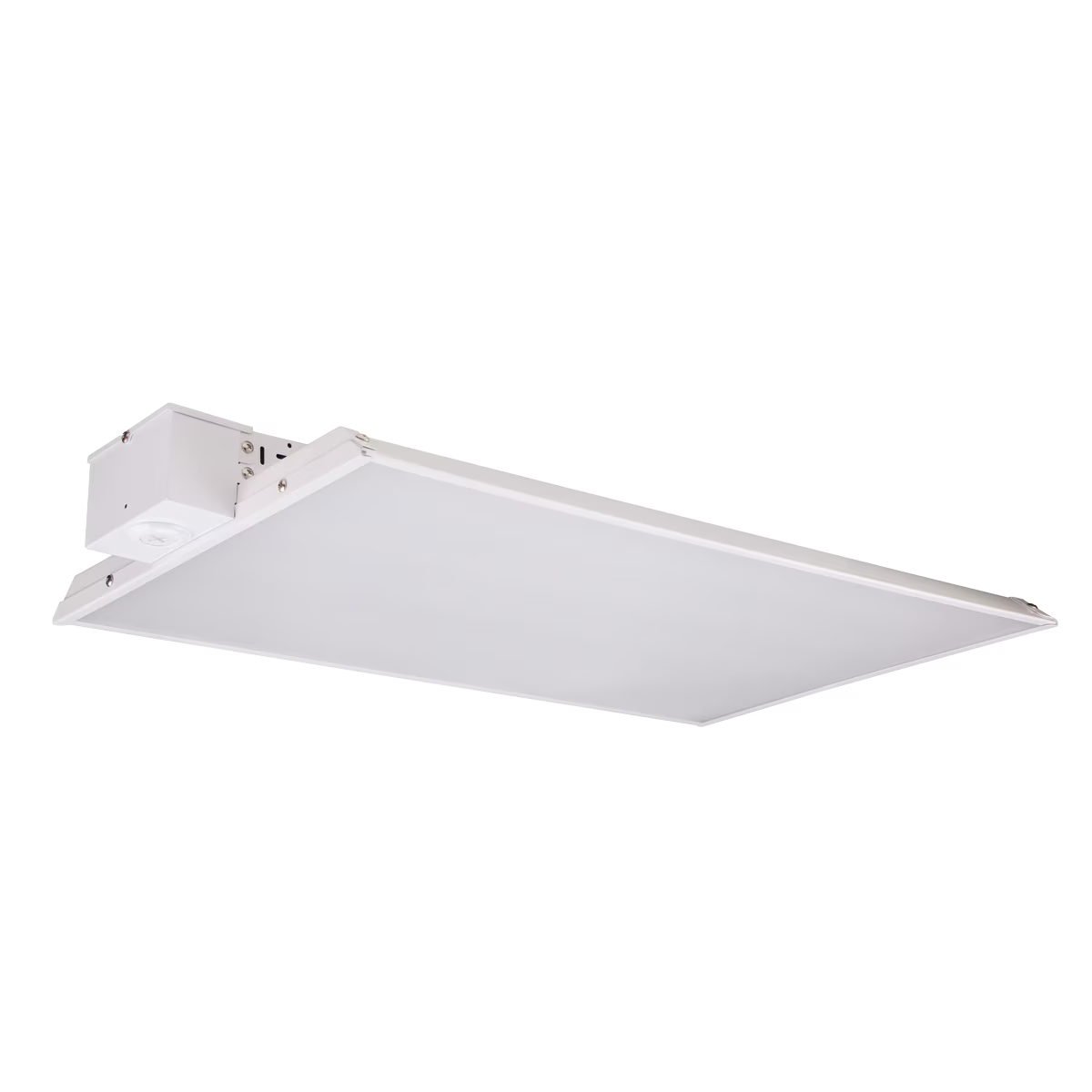

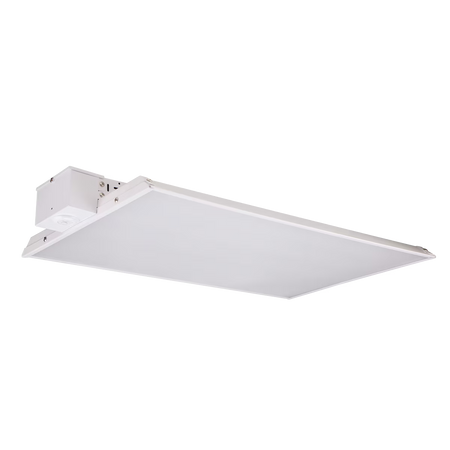

LHS1 Linear High Bay 160/130/110/90W 40/50K 120-347V 0-10V DIM
| Product Specifications | |
|---|---|
| Input Voltage | 120-347VAC |
| Lumens (lm) | 24,000 / 19,500 / 16,500 / 13,500 lm |
| Wattage | 160W / 130W / 110W / 90W |
| Efficacy (lm/W) | 150 |
| CCT | 4000K / 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Replacement For/Equivalent | 6 lamp 32W T8 or 4 lamp T5 HO or up to 400W HID |
| DLC Version | DLC 5.1 Premium |
| Energy Star | No |
| IP Rating | IP20 |
| UL Location Rating | Damp |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| UL / ETL | Yes - UL |
| Operating Temp Range (°F/°C) | -40F to 122F (-40C to 50C) |
| Surge Protection (kV) | 6kV |
| Auxiliary Output | Yes (12V) |
| Brand | EiKO |
| Feature |
LHS1-PS160-8FCCT-HDIM
$156.00
