Weight: 1.2 lb

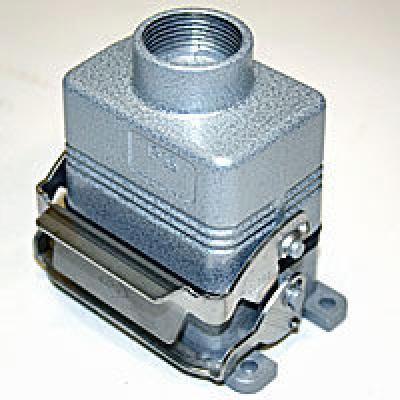

Machine builders use rectangular multipole connectors to disconnect control and sensor wiring quickly instead of rewiring terminal strips. The Techspan E06TEPM25S (ILME MNLZ 06 IV) is a complete 6-pole kit: a panel-mount base with a single locking lever, male and female E-series screw-terminal inserts, and a top-entry hood with an M25 cable entry. It is rated 16 A maximum at 600 V.
| Spec | Detail |
|---|---|
| Brand | Techspan (ILME) |
| Model | E06TEPM25S / ILME MNLZ 06 IV |
| Contents | Panel-mount base (single lever), female insert, male insert, top-entry hood |
| Poles | 6 + ground |
| Rating | 16 A max, 600 V |
| Termination | Screw |
| Cable entry | M25 metric thread, top entry |
| ILME housing size | 44.27 |
| Origin | Italy |
Pro tip from the counter
Count spares before settling on six poles. The 6-pole kit uses the 44.27 housing size, which has a smaller panel cutout than the 10-pole 57.27 size, so if the machine gains a few more sensors later, moving up means recutting the panel as well as rewiring the inserts.
Best for: OEM machine control disconnects, conveyor and packaging sections, sensor and small motor wiring, test rigs and portable equipment
Downloads: Kit spec sheet (PDF)
Ships across Canada from our Vaughan, ON warehouse. Panel shops can get trade pricing through a quote or at (905) 553-7171.
| Feature |
Heavy duty connectors 6p inserts - top entry hood single leve
$84.76
Current
|
|---|---|
| Brand | Techspan |
| Type | Heavy Duty Connectors |
| Availability | In stock |
| Rating | No reviews |
