Weight: 1.2 lb

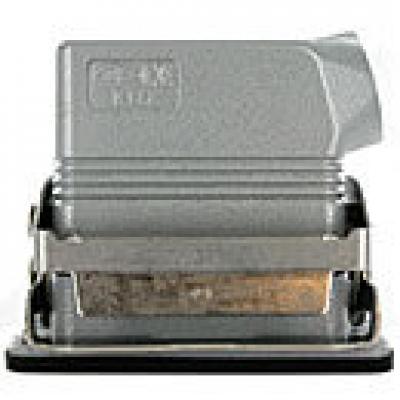

Machine sections, test fixtures and tooling that get disconnected often need a multi-pole connector instead of a hard-wired junction box. The Techspan E10SEPM25S is a complete 10-pole heavy-duty rectangular connector kit with a panel-mount base, a single locking lever, a side-entry hood and matching male and female E-series inserts. It's rated 16 A max at 600 V with screw terminals, made in Italy as the equivalent of ILME MNLZ 10 IO.
| Spec | Detail |
|---|---|
| Brand | Techspan |
| Model | E10SEPM25S |
| Kit contents | Panel-mount base, side-entry hood, male insert, female insert |
| Poles | 10 + ground (E series inserts) |
| Rating | 16 A max, 600 V (screw terminals) |
| Locking | Single lever |
| Cable entry | M25 metric thread, side entry |
| OEM equivalent | ILME MNLZ 10 IO |
| Made in | Italy |
Pro tip from the counter
Mount the panel base so the side-entry hood's cable gland points down or sideways, never up. An upward-facing entry lets water run along the cable into the hood, and also leave a drip loop in the cable before it reaches the gland.
Best for: machine disconnects, test fixtures and benches, modular equipment sections, OEM control panel builders
Downloads: Kit spec sheet (PDF)
Ships Canada-wide from Vaughan, ON. For OEM quantities, request a quote or call (905) 553-7171.
