Weight: 2.0 lb

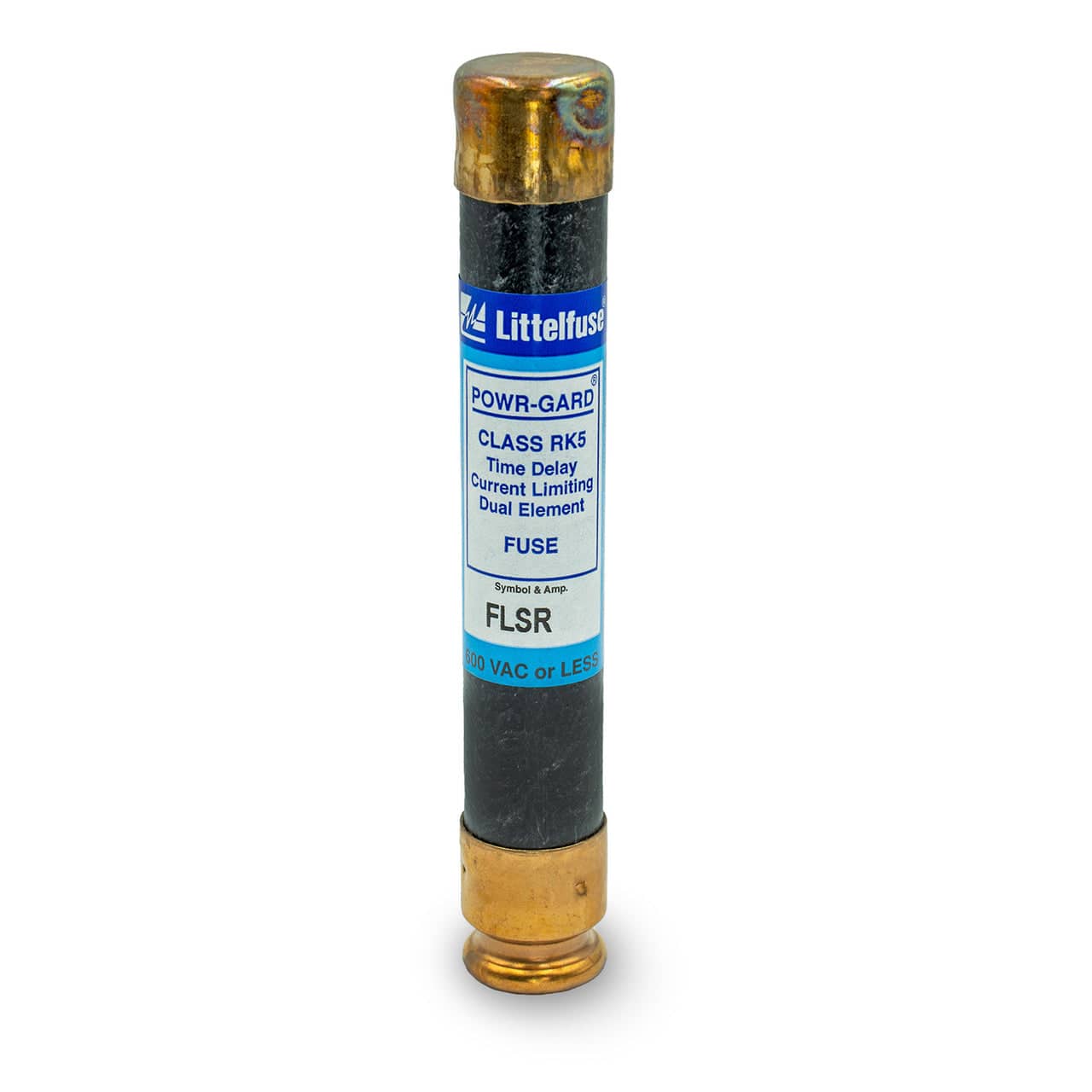

Small motors, control transformers and 15 A branch circuits on 600 V equipment need a fuse that tolerates starting surges without giving up short-circuit protection. The Littelfuse FLSR015 is a 15 A, 600 VAC Class RK5 dual-element time-delay fuse with a 200,000 A interrupting rating, sold here as a package of 10 for maintenance stock.
| Spec | Detail |
|---|---|
| Brand | Littelfuse |
| Model | FLSR015 (FLSR series) |
| Class | UL Class RK5, current limiting, dual-element time delay |
| Ampere rating | 15 A |
| Voltage | 600 VAC / 300 VDC |
| Interrupting rating | 200 kA AC / 20 kA DC |
| Size | 13/16 in dia. x 5 in, ferrule |
| Sold as | Package of 10 |
Pro tip from the counter
When one fuse blows in a three-phase disconnect, replace all three. The two survivors carried the load while the motor single-phased, so their elements may already be heat-weakened and likely to open on the next start; the leftover spares from this 10-pack cover it.
Best for: 600 V motor starters and disconnects, control transformer primaries, pump and fan circuits, maintenance spare stock
Downloads: FLSR datasheet (PDF)
Shipped from Vaughan, ON to anywhere in Canada. Plants and contractors can request a quote or call (905) 553-7171.
| Feature |
FLSR015 FUS 600V T/D CLASS RK5 15A
$87.45
Current
|
|---|---|
| Brand | LittleFuse |
| Type | |
| Availability | In stock |
| Rating | No reviews |
Our counter is at 8520 Jane St, Unit 5, Vaughan, ON L4K 5A9, open Monday to Friday, 8am to 4pm. Order online and collect, or bring a material list and we will price it at the counter. Contractors and DIY customers are both welcome.
