Weight: 0.14 lb

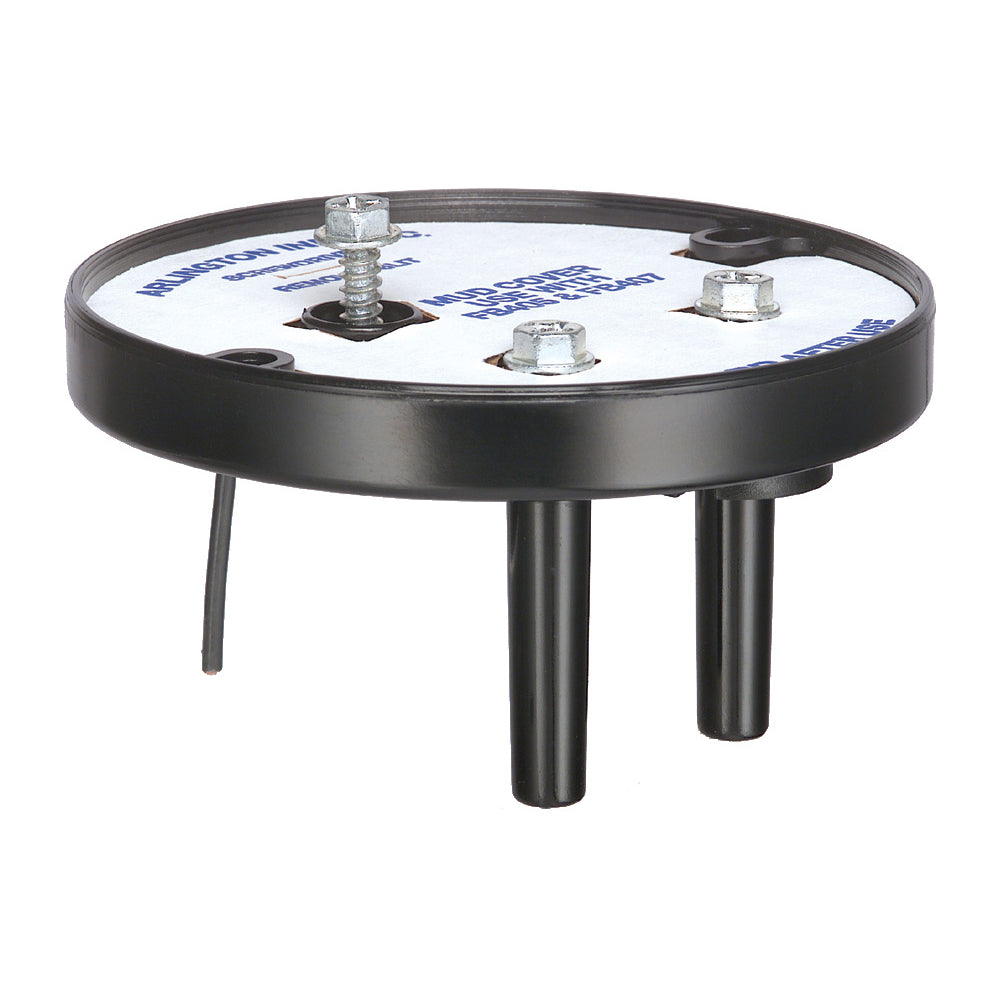

The Arlington FB405 is the go-to shallow plastic pan box for ceiling fans and fixtures on 1/2 in or 5/8 in drywall. It works well on double joists or wood I-beams, and the centre screw, NM connector, mud cover and fan-bracket screws all ship installed. Arlington's own part listing spells out the split: UL listed for a 70 lb fan and 200 lb fixture, CSA listed for 50 lb fan and 50 lb fixture, and the CSA figure governs in Canada.
| Spec | Detail |
|---|---|
| Brand | Arlington Industries |
| Model | FB405 |
| Type | Plastic pan fan/fixture mounting box |
| CSA rating (Canada) | 50 lb fan / 50 lb fixture |
| UL rating (US) | 70 lb fan / 200 lb fixture |
| Volume | 6.0 cu in |
| Max conductors (Arlington chart) | 3 x #14 AWG |
| Drywall | 1/2 in or 5/8 in |
| Fire rating | 2-hour (per Arlington) |
| Arlington pack | 25 pcs (FB4050: 100 pcs) |
Pro tip from the counter
The "70lb/200lb" printed on many listings for this box is its UL rating. For a Canadian inspection, quote the CSA 50 lb figure to the customer at the counter, especially when they're picking out a heavy fan with a light kit.
Best for: production-home ceiling fan and light rough-in, I-joist and double-joist framing, end-of-run fixture locations, fire-rated ceilings
Downloads: Spec sheet (PDF) · Arlington fan/fixture box ratings chart (PDF)
Shipped Canada-wide from Vaughan, ON. Buying cartons for a project? Ask for trade pricing via a quote or (905) 553-7171.
| Feature |
Fan Box 6Cu 25Pk - Arlington Ceiling Fixture, 70lb/200lb
