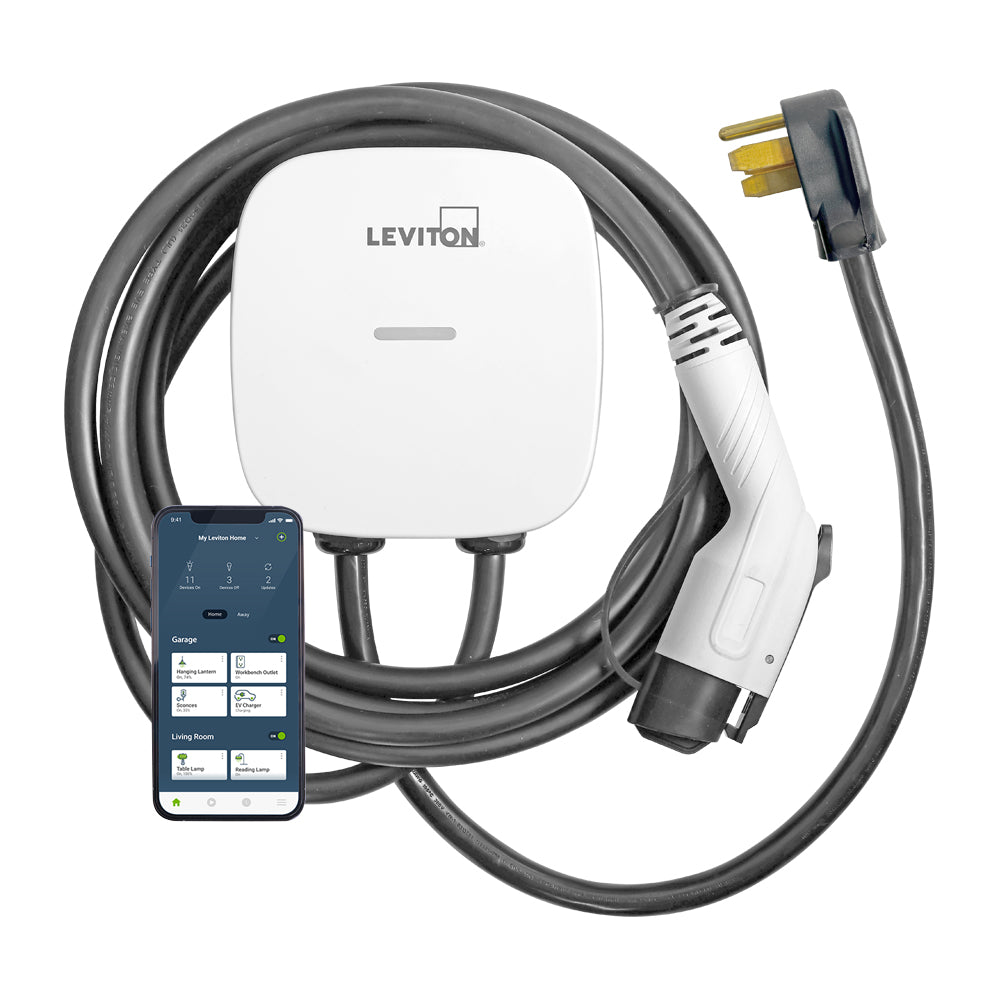

40 Amp Level 2 Electric Vehicle Charging Station With Wi-Fi, Works with My Leviton App, Plug-In
EV Series Smart Home Level 2 Electric Vehicle Charging Station, 40A, 208/240 VAC, 9.6kW Output, J1772 Charge Connector, 25' Cord, Includes Mounting Bracket and Pre-attached 3ft long input cable with NEMA 14-50P Plug, Optional RFID Control, Wi-Fi Compatible (Wi-Fi Function 802.11 b/g/n)
- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors (Note: For outdoor applications, weatherproof receptacle must be installed in a 2-gang outdoor box and must use code compliant weatherproof cover)

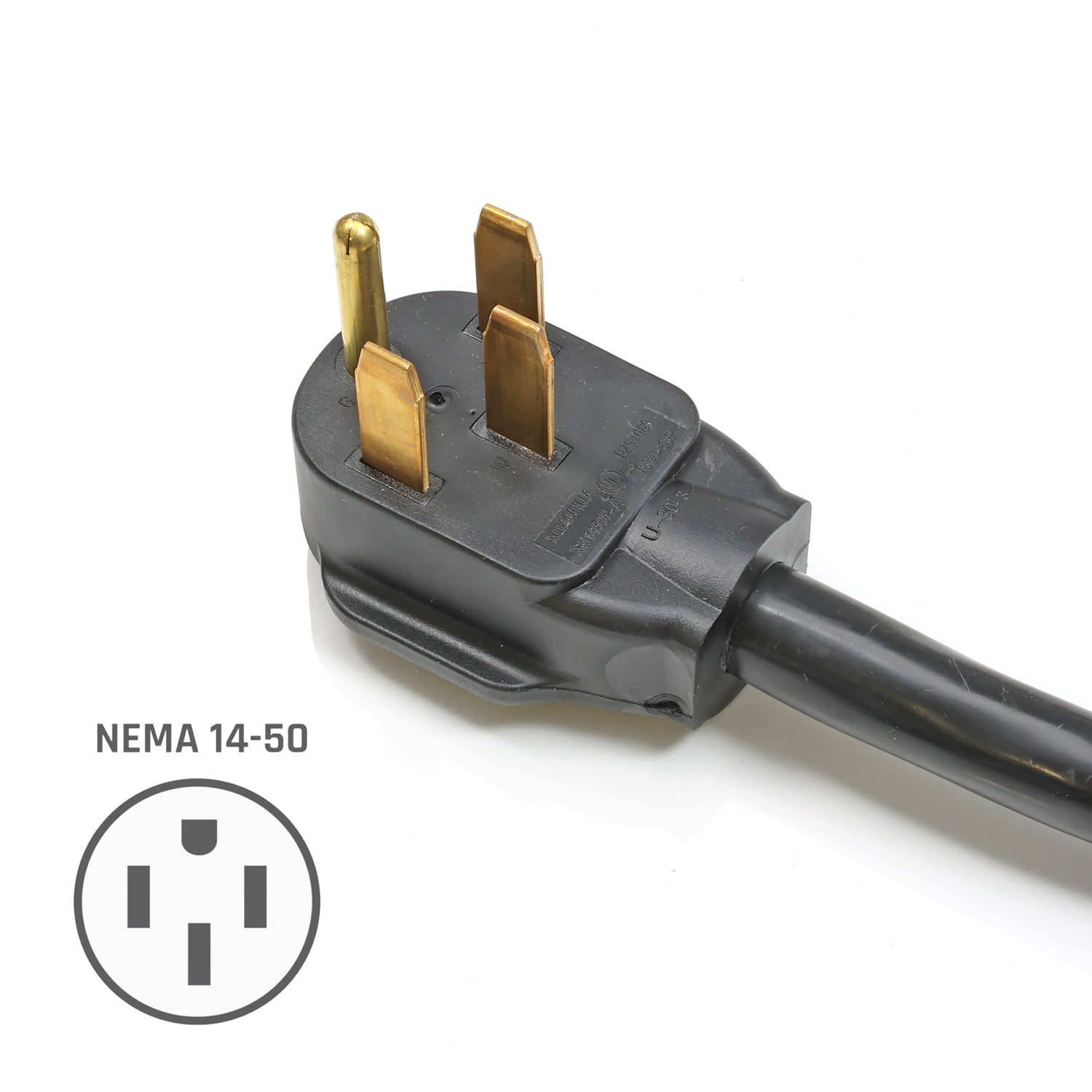

- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station comes with a NEMA 14-50P Plug and works with Leviton 1450R and 1450W EV Charging Receptacles

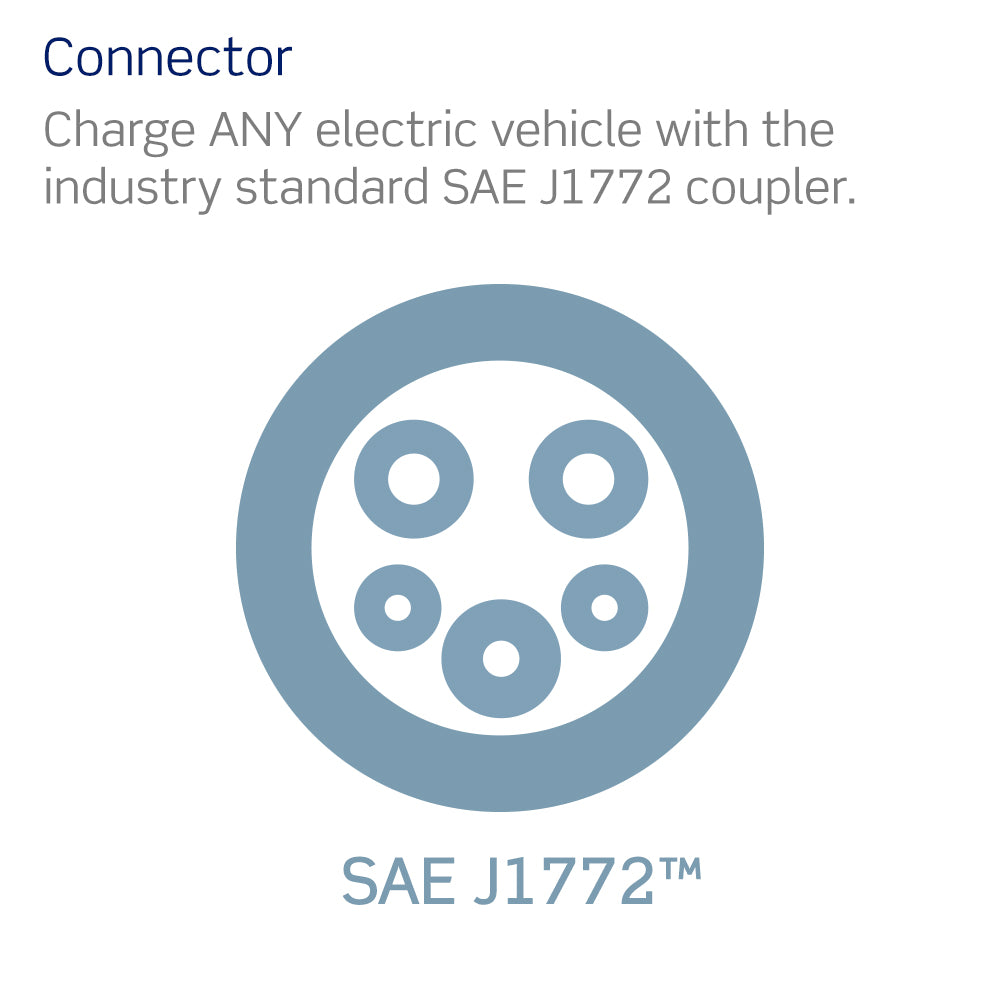

- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla using Leviton NACS Adapter (Part Number: NACSA)
Learn more about the My Leviton app
Have Questions? Search the knowledge base.
Take advantage of government rebates and incentives.
Click here to learn more about our full line of Evr-Green Electric Vehicle Chargers.
- UPC Code:
- 078477015582
- Country Of Origin:
- China
- NEMA:
- 14-50P
-
Electrical Specifications
Amperage40 A
Breaker50 A
Charge Connector Cord#10 AWG SAE J1772
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Operating Temperature-30°C to 50°C
Output Power9.6kW
Voltage208/240 VAC
Environmental Specifications
AltitudeUp to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature-30°C to +50°C
CoolingNatural Cooling
Operating Humidity< 95% Relative Humidity, Non-Condensing
Material Specifications
Enclosure MaterialPlastic (PC+PBT)
Enclosure RatingNEMA Type 3R

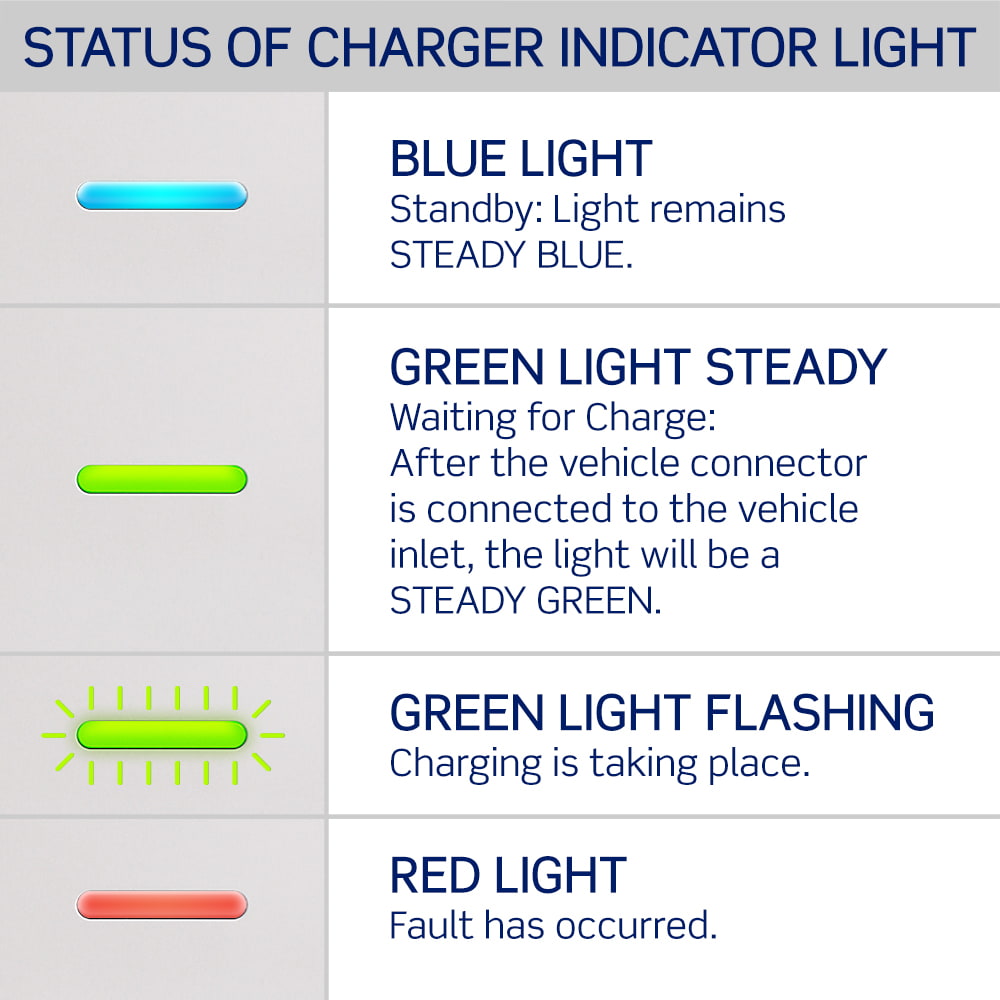

Status IndicatorPower Present, Charging, Fault
Mechanical Specifications
Cable Length25 ft. (7.6 m)
Product Features
ApplicationHome
Cover Locking MechanismPhillips Head Screws, No Padlock Option
Device TypeCharger
FeatureMy Leviton Enabled
Standards and Certifications
Standards and CertificationsUL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant
Warranty
Warranty2-Year Limited
