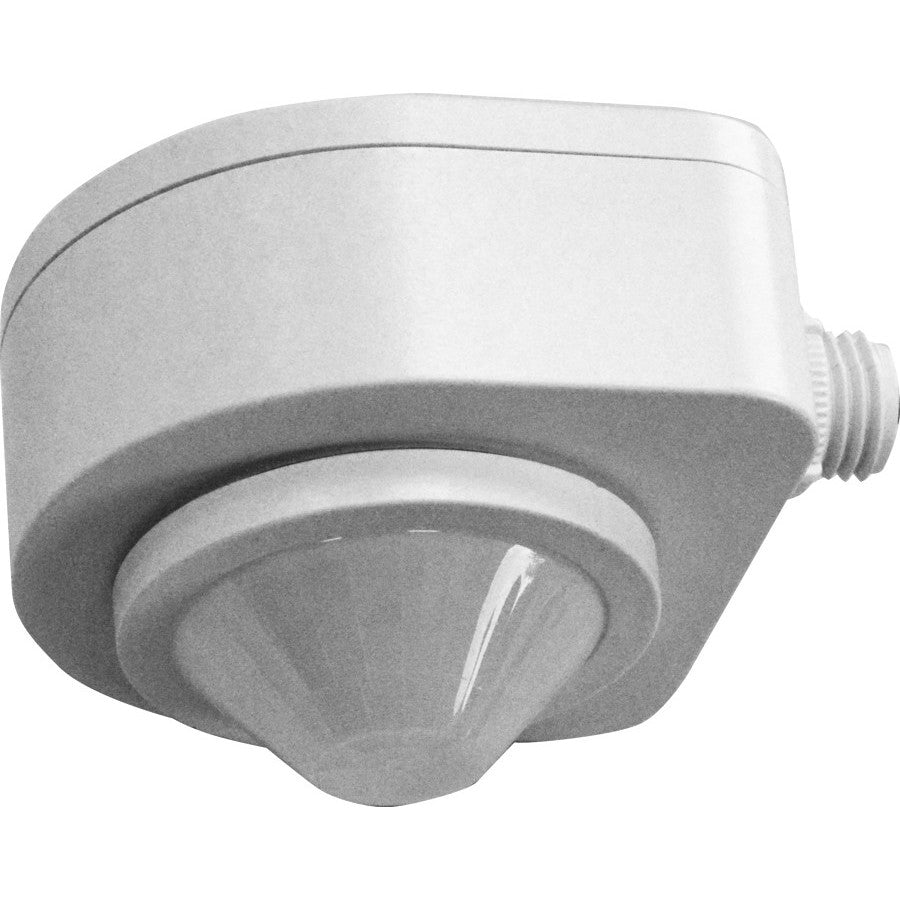

EiKO 10221 PIR Occupancy Sensor with Highbay Lens, IP66 Rated, 347/480V - Advanced LED Access Solution for Efficient Lighting Control
EiKO 10221 PIR Occupancy Sensor with Highbay Lens, IP66 Rated, 347/480V - Advanced LED Access Solution for Efficient Lighting Control
EiKO SKU: 10221 Barcode: 031293102218
EiKO

EiKO 10221 PIR Occupancy Sensor with Highbay Lens, IP66 Rated, 347/480V - Advanced LED Access Solution for Efficient Lighting Control

In stock - 10 items available
SKU: 10221 UPC: 031293102218
(0)
$199.10 CAD
-40% $331.83 CAD $199.10 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 0.5 lb

Canadian warehouses and plants often run their high bays at 347 V, and most fixture-mount sensors stop at 277 V. The EiKO 10221 (SEN-3C-KO) is a 347/480 VAC PIR occupancy and daylight sensor that mounts in a 1/2 in knockout on the fixture and drives the LED driver's 0-10V input. It switches through a zero-cross relay and dims to programmed high and low levels, making it a fit for facility managers cutting lighting energy in aisles and bays.

Why facility managers pick it

  • Rated 347/480 VAC, 60 Hz, for Canadian industrial lighting circuits.
  • Omni-directional quad-element PIR plus a built-in digital ambient light sensor.
  • Four control modes, from simple on/off to occupancy with daylight hold-off and time-off.
  • 0-10V continuous or high/low dimming, programmed from the floor with the SEN-3-RC remote.
  • IP66 with gasket, operates down to -40°C, 5-year limited warranty.

Specifications

Spec Detail
Brand EiKO
Model 10221 / SEN-3C-KO
Voltage 347/480 VAC, 60 Hz
Maximum load 1500 W (VA) at 347 V; 2160 W (VA) at 480 V, fluorescent ballast or LED driver
Dim output 0-10V, 25 mA max sinking
Load switching Zero-cross control relay
Lens options / height High bay cone 15-30 ft; high bay dome 30-50 ft; aisle 8-40 ft; extra wide 8-20 ft
Programming SEN-3-RC remote (EiKO 10226), sold separately; 33 ft indoor range
Mounting / protection 1/2 in knockout / IP66
Operating temperature -40°C to 50°C (install sheet)
Dimensions 4.37 x 3.54 x 1.8 in

Pro tip from the counter

EiKO's installation notes call for mounting the sensor at least 5 ft (1.5 m) from air supply ducts, since fast-moving air can trigger false detections. In warehouses, also look for unit heaters and make-up air units near the fixture before you pick which high bay gets the sensor.

Best for: warehouse aisles and racking, manufacturing floors, 347 V high bay retrofits, cold storage and loading areas, gymnasiums

Downloads: Spec sheet (PDF) · Installation instructions (PDF)

We ship from Vaughan, ON across Canada. For a full warehouse retrofit, request a quote or call (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
