Weight: 10.11 lb

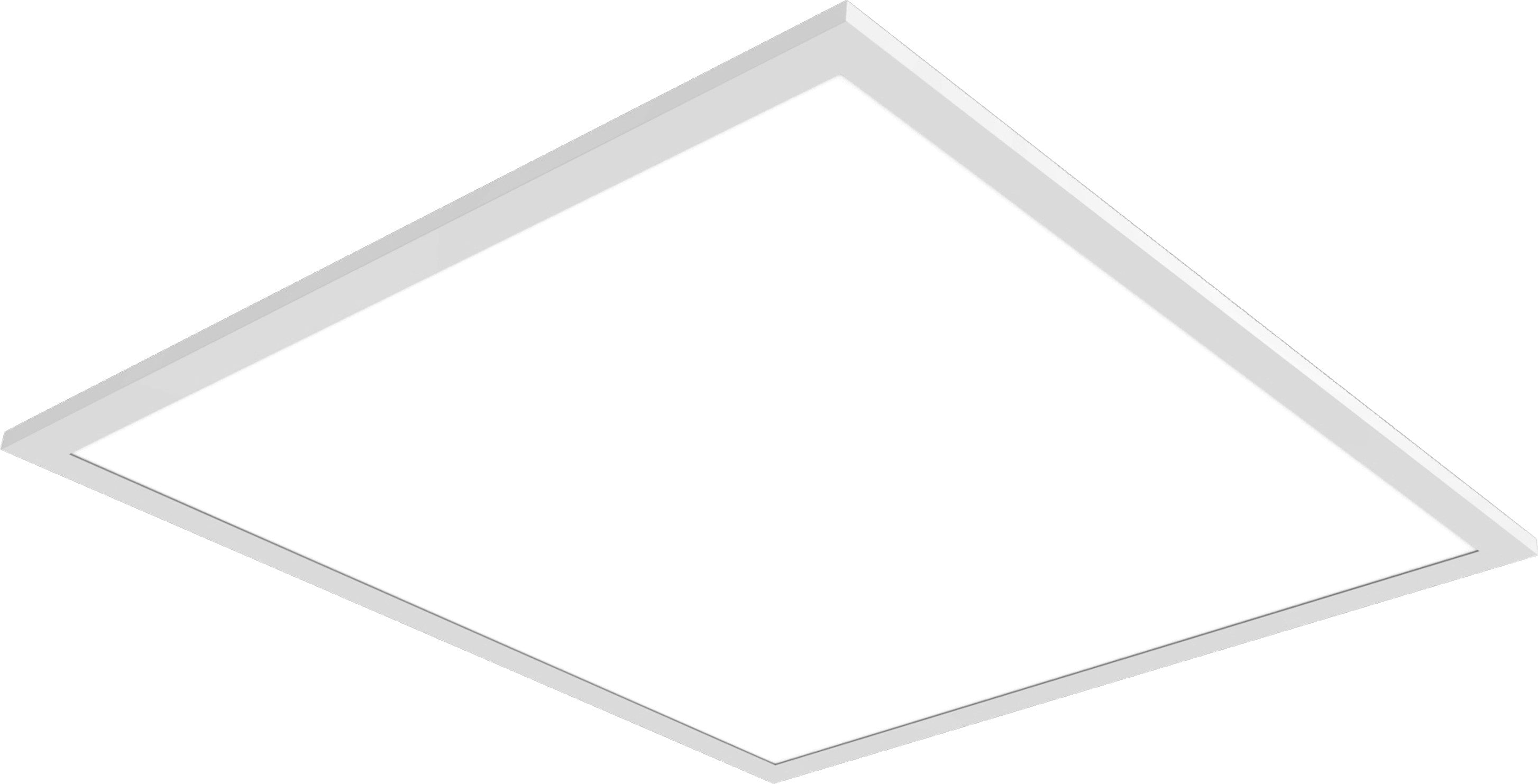

Old 2x2 fluorescent troffers in offices, schools and clinics can be swapped for a thin LED panel that lays into the same grid. The EiKO SLM22-4CB-50K-U (order code 09765) is a 2x2 edge-lit slim panel producing 3,750 lumens from 30 W at 5000K, on a 100-277 V input with 0-10V dimming. Its 1.82 in profile suits shallow plenums, and facility managers use it for one-for-one troffer replacements.

Why facility managers pick it

  • 125 lm/W; listed DLC Premium qualified in EiKO's catalogue.
  • Edge-lit acrylic (PMMA) lightguide for even, low-glare light and resistance to yellowing.
  • Thin 1.82 in body for shallow plenum spaces; fits standard T-bar and narrow grid.
  • UL listed for dry and damp locations and IC rated; integral earthquake clips.
  • 0-10V dimming for occupancy and daylight controls; 5-year limited warranty.

Specifications

Spec Detail
Brand EiKO
Model / order code SLM22-4CB-50K-U / 09765
Size 2x2 ft (about 23.75 x 23.75 x 1.82 in)
Wattage / lumens 30 W / 3,750 lm (125 lm/W)
CCT / CRI 5000K / 80+
Input 100-277 V (not a 347 V model)
Dimming 0-10V
Listings UL dry/damp, IC rated, DLC Premium
Power factor / THD >0.90 / <15%
Operating temperature -20°C to +40°C
Rated life / warranty L70 50,000 h / 5-year limited

Pro tip from the counter

Ordering accessories for this panel, match the CB suffix: EiKO lists a separate SLM22-CABLE-CB suspension cable set for the CB models, while the plain SLM22-CABLE is for the older version. For drywall or hard ceilings without a grid, EiKO's SLM22-SM surface mount kit is the one to add.

Best for: office and classroom troffer retrofits, clinics and healthcare corridors, retail and reception areas, suspended ceiling renovations
