Weight: 7.28 lb

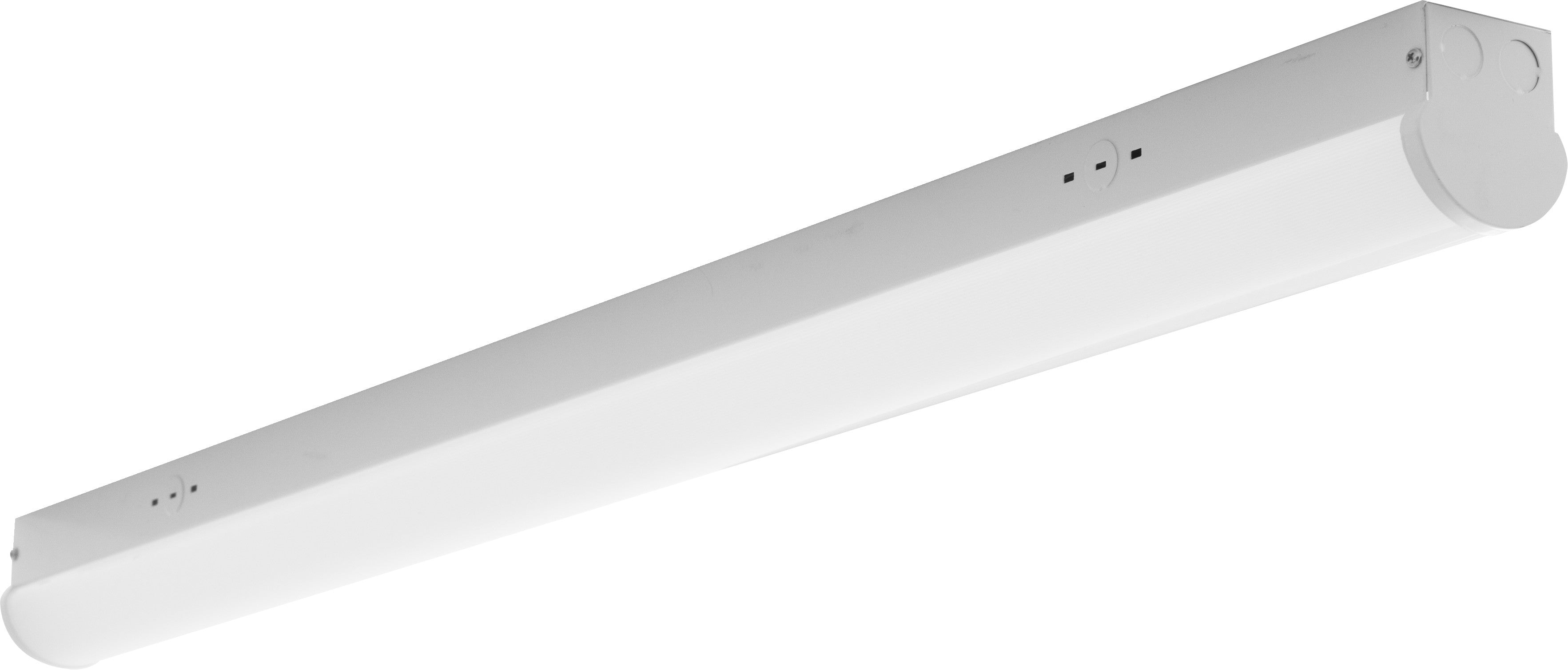

Storage rooms, utility spaces and back-of-house areas still running 4 ft fluorescent strips can switch to an integrated LED fixture with no tubes or ballasts. The EiKO STR-3C-40K-U (order code 09535) is a 4 ft LitespanLED linear strip delivering 4,224 lumens from 32 W at 4000K on 120-277 V. It has 0-10V dimming and is DesignLights Consortium Premium qualified, which helps with utility incentive applications.
| Spec | Detail |
|---|---|
| Brand | EiKO (LitespanLED) |
| Model / order code | STR-3C-40K-U / 09535 |
| Size | 48 x 3.35 x 3.56 in |
| Wattage / lumens | 32 W / 4,224 lm |
| CCT / CRI | 4000K / 80+ |
| Input voltage | 120-277 VAC (not 347 V) |
| Dimming | 0-10V, to 10% |
| Location | Dry or damp per spec sheet and instructions (EiKO web page lists Dry) |
| Operating temperature | -20 °C to +50 °C |
| Construction | Powder-coated steel, acrylic lens |
| Life / warranty | L70 50,000 h / 5-year limited |
Pro tip from the counter
EiKO's instructions call for supply conductors rated at least 90 °C. When these strips replace old fluorescent fixtures on existing branch wiring, have your electrician check the insulation rating on the feed wires in the fixture location and use 90 °C-rated leads where older conductors don't meet it.
Best for: storage and utility rooms, mechanical rooms, back-of-house retail, fluorescent strip replacements
Downloads: Spec sheet (PDF) · Installation instructions (PDF)
Ships Canada-wide from Vaughan, ON. Relighting a whole building? Ask for a quote or call (905) 553-7171.
| Feature |
DLC V4.0 Premium 4ft LED Strip Light by 32W-422 - Dimmable 4000K, 120-277V, 4224LM Output
$97.15
Current
|
|---|---|
| Brand | EiKO |
| Type | |
| Availability | In stock |
| Rating | No reviews |
