Weight: 7.25 lb

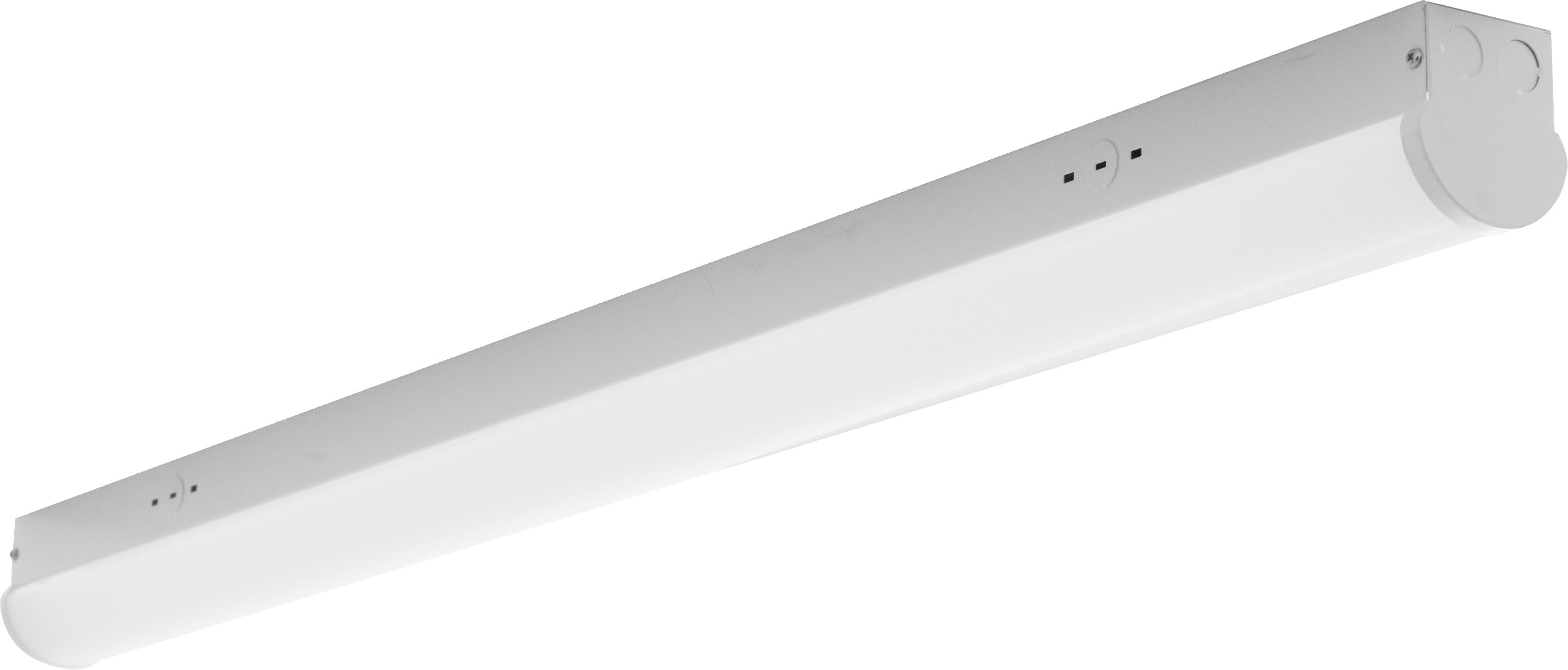

Storage rooms, corridors, cove details and retrofit channels need a slim 4 ft light without fluorescent tubes or ballasts to maintain. The EiKO STR-2C-40K-U is a 4 ft LitespanLED strip fixture using 23 W for about 3,010 lumens at 4000K, with 0-10V dimming and a 120-277V input. It is DLC Premium listed, which helps with utility rebate applications on commercial jobs.
| Spec | Detail |
|---|---|
| Brand | EiKO |
| Model | STR-2C-40K-U (order code 09534) |
| Type | 4 ft LED strip fixture |
| Wattage | 23 W |
| Lumens | 3,010 lm (EiKO); 3,013 lm on title |
| CCT / CRI | 4000K / 80+ |
| Input / dimming | 120-277 VAC / 0-10V |
| DLC | V4.0 Premium |
| Location | Dry (per EiKO product page) |
| Operating temperature | -20°C to 50°C |
| Warranty | 5 years |
Pro tip from the counter
If the job doesn't use dimming controls, have your electrician cap the two 0-10V dimming leads individually. If they touch each other, most 0-10V drivers drop to minimum output, which looks like a dead or failing fixture on start-up.
Best for: storage and utility rooms, corridors, cove and channel lighting, fluorescent strip replacements, DLC rebate projects
Downloads: Spec sheet (PDF)
We ship across Canada from Vaughan, ON. Lighting a building? Get contractor pricing with a quote or call (905) 553-7171.
| Feature |
DLC v4.0 Premium 4 ft. LED Strip Light by 23W-301, 0-10V Dimmable, 4000K, 120-277V - High Efficiency Lighting Solution
$90.93
Current
|
|---|---|
| Brand | EiKO |
| Type | |
| Availability | In stock |
| Rating | No reviews |
