Home » DLC V4.0 Certified Edge-Lit Slim 2x2 Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 5000K, 100-277V
DLC V4.0 Certified Edge-Lit Slim 2x2 Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 5000K, 100-277V
DLC V4.0 Certified Edge-Lit Slim 2x2 Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 5000K, 100-277V
EiKO SKU: SLM22-3C-50K-U Barcode: 031293094872
EiKO

DLC V4.0 Certified Edge-Lit Slim 2x2 Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 5000K, 100-277V

In stock
SKU: SLM22-3C-50K-U UPC: 031293094872
(0)
$171.00 CAD
-13% $195.99 CAD $171.00 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 10.82 lb

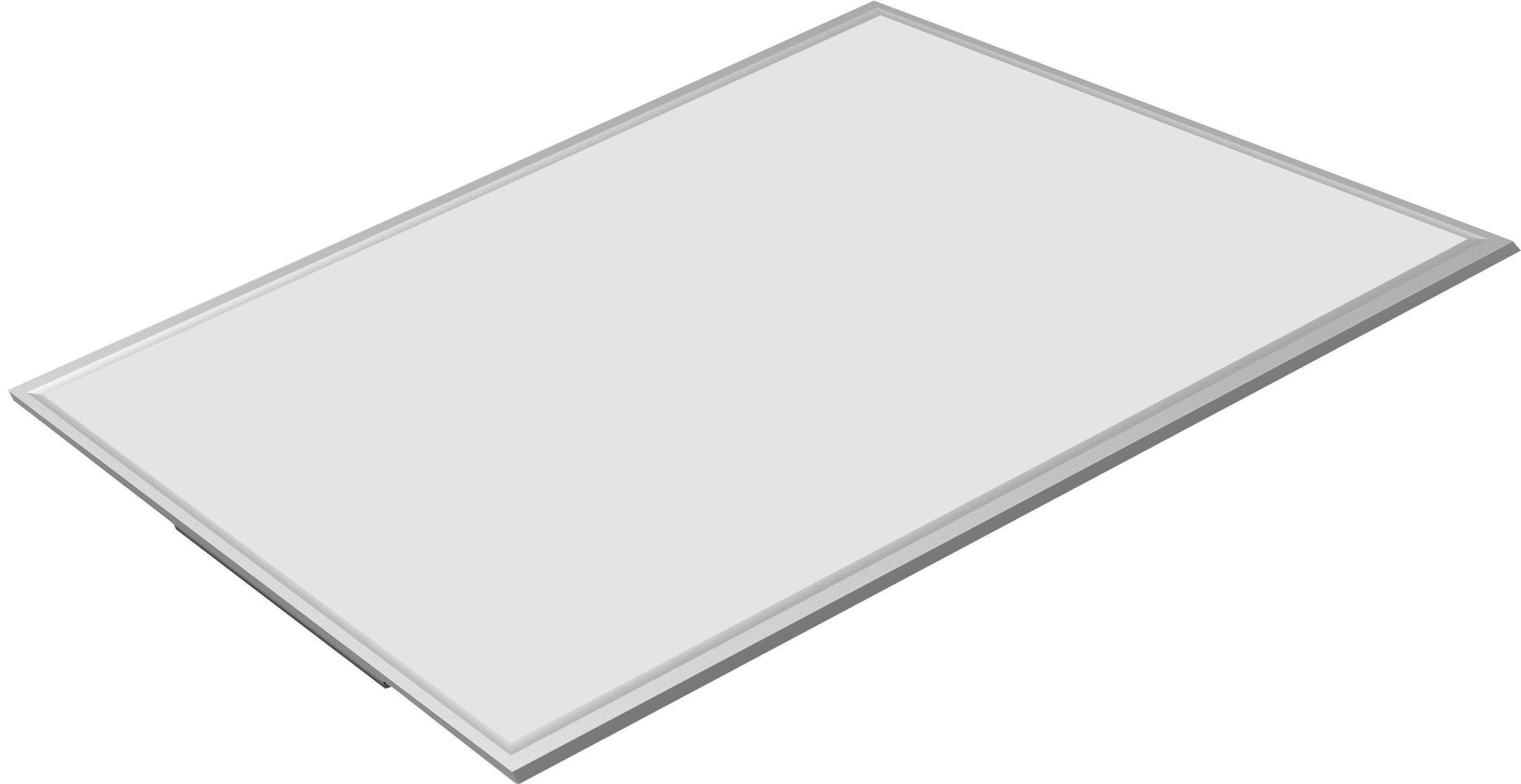

Replacing tired 2x2 fluorescent troffers with a thin edge-lit panel cuts the load and the ceiling work. The EiKO LitespanLED SLM22-3C-50K-U is a 2x2 edge-lit slim panel rated 30 W and 3,000 lumens at 5000K with 80+ CRI, running on 100-277 V with 0-10V dimming. EiKO lists it as a replacement for 3-lamp 17 W T8 or 2-lamp U31 T8 troffers.

Please confirm before ordering: this listing's title contains the placeholder "[Manufacturer Name]"; the manufacturer is EiKO.

Why electricians pick it

  • 30 W replaces 3-lamp 17 W T8 or 2-lamp U31 T8 2x2 troffers.
  • Edge-lit acrylic lightguide gives even, low-glare light across the lens.
  • Fits standard T-bar and narrow grid ceilings.
  • 100-277 V universal input with 0-10V dimming.
  • DLC listed per EiKO's catalogue, with 50,000-hour L70 life.

Specifications

Spec Detail
Brand EiKO (LitespanLED)
Model / order code SLM22-3C-50K-U / 09487
Size 2 ft x 2 ft
Wattage 30 W
Lumens 3,000 lm
CCT / CRI 5000K / 80+
Input voltage 100-277 V
Dimming 0-10V
Replaces 3x 17 W T8 or 2x U31 T8
Rated life 50,000 h (L70)
Accessories (sold separately) SLM22-CABLE suspension set, SLM22-SM surface mount kit

Pro tip from the counter

Edge-lit panels are light, but inspectors still expect lay-in fixtures in a suspended ceiling to be tied to the building structure with their own support wires, not held up by the tee bar alone. Budget a couple of hanger wires per panel, and for drywall ceilings order EiKO's surface mount kit instead of trying to hang it from the board.

Best for: 2x2 fluorescent troffer replacement, offices and classrooms, clinics and corridors, retail back rooms

Ships Canada-wide from our Vaughan, ON warehouse. Relighting a floor? Get trade pricing through a quote or at (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
