Home » DLC V4.0 80W LED Glass Wallpack by EiKo - 9800lm, 5000K, Bronze Finish, 0-10V Dim, 347-480V Compatibility
DLC V4.0 80W LED Glass Wallpack by EiKo - 9800lm, 5000K, Bronze Finish, 0-10V Dim, 347-480V Compatibility
DLC V4.0 80W LED Glass Wallpack by EiKo - 9800lm, 5000K, Bronze Finish, 0-10V Dim, 347-480V Compatibility
EiKO SKU: WMG-4C-50K-V Barcode: 031293098092
EiKO

DLC V4.0 80W LED Glass Wallpack by EiKo - 9800lm, 5000K, Bronze Finish, 0-10V Dim, 347-480V Compatibility

In stock
SKU: WMG-4C-50K-V UPC: 031293098092
(0)
$348.27 CAD
-40% $580.44 CAD $348.27 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 13.18 lb

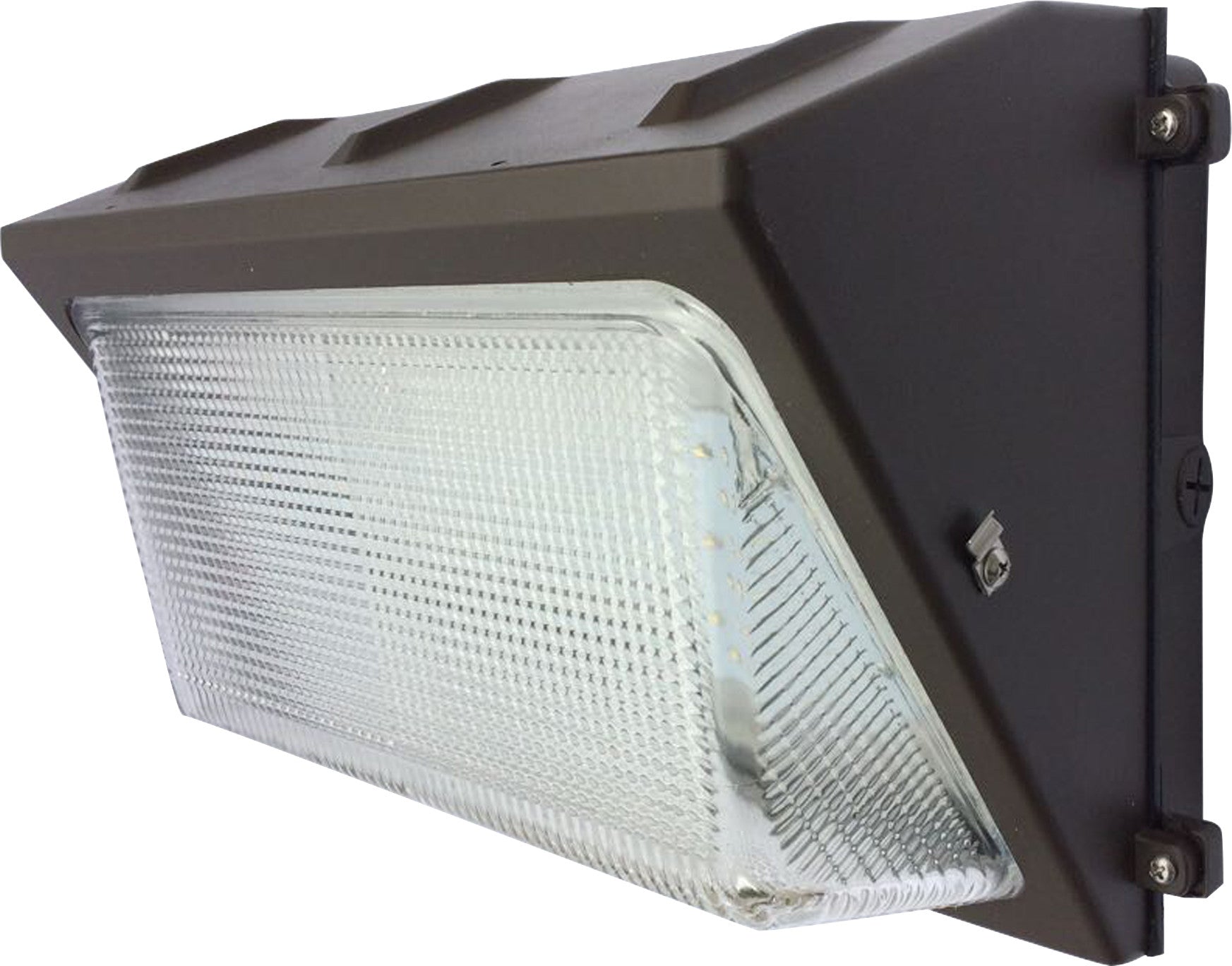

Plants, warehouses and schools across Canada often light their exteriors from 347 V or 480 V panels. The EiKO LitespanLED WMG-4C-50K-V is an 80 W LED glass wallpack for those circuits: 347-480 V input, 9,800 lumens at 5000K, 0-10V dimming and a bronze finish. It keeps the traditional HID glass wallpack shape for straight swaps on docks and building perimeters.

Why contractors pick it

  • Runs directly on 347-480 V, with no step-down transformer.
  • 9,800 lm from 80 W to replace older HID wallpacks.
  • UL listed for wet locations and IP65 rated, fully sealed and gasketed.
  • Rated to operate from -40 to 40 C.
  • DLC qualified, 50,000-hour L70 life, 5-year limited warranty.

Specifications

Spec Detail
Brand EiKO (LitespanLED)
Model / order code WMG-4C-50K-V / 09809
Wattage 80 W
Lumens 9,800 lm (older EiKO catalogue: 9,500 lm)
CCT / CRI 5000K / 70+
Input voltage 347-480 V
Dimming 0-10V
Construction Die-cast aluminum, bronze powder coat, borosilicate tempered glass lens
Ratings UL listed wet location, IP65, DLC qualified
Operating temperature -40 to 40 C
Life / warranty 50,000 h L70 / 5-year limited
Status Discontinued by EiKO; confirm stock

Pro tip from the counter

On a 600Y/347 V service, feed this wallpack line-to-neutral at 347 V. The driver's range tops out at 480 V, so it must never be connected across two phases of a 600 V system, which is an easy mistake when a crew is used to 208 V or 480 V line-to-line fixtures.

Best for: loading docks and building perimeters, plant and warehouse exteriors on 347 V, school and campus walkways, HID wallpack replacement

Downloads: WMG series spec sheet (PDF)

Ships across Canada from Vaughan, ON. Call (905) 553-7171 to confirm stock, or request contractor pricing through a quote.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
