DLC V4.0 2x2 Edge-Lit Slim Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 3500K, 100-277V
DLC V4.0 2x2 Edge-Lit Slim Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 3500K, 100-277V
EiKO SKU: EP1-22PS30-FCCT-U Barcode: 031293094858
EiKO

DLC V4.0 2x2 Edge-Lit Slim Panel by [Manufacturer Name] - 30W, 3000LM, 0-10V Dimmable, 80CRI, 3500K, 100-277V

In stock
SKU: EP1-22PS30-FCCT-U UPC: 031293094858
(0)
$129.99 CAD
-11% $145.99 CAD $129.99 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 10.82 lb

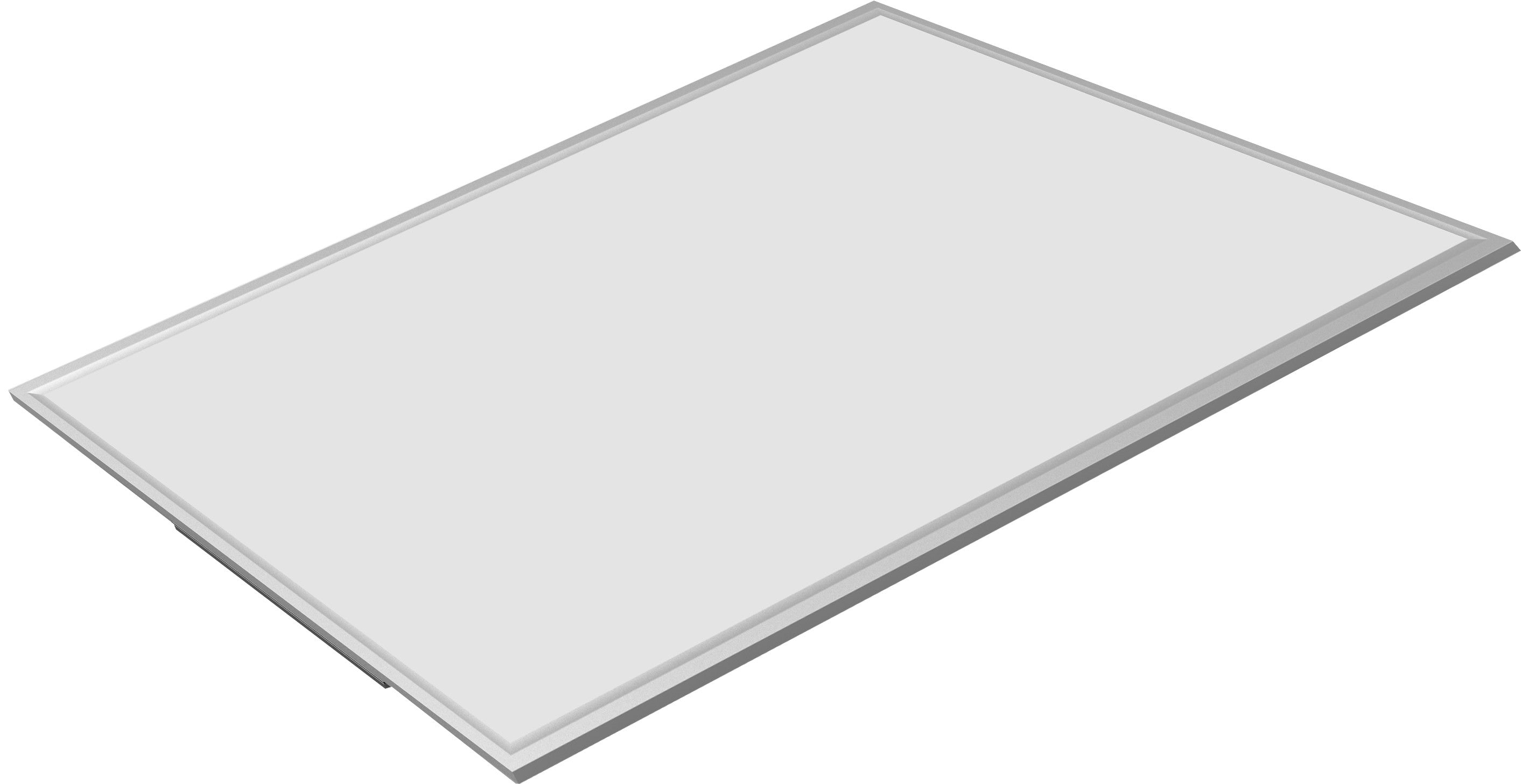

Replacing old 2x2 fluorescent troffers is faster with a thin LED panel that can be set on site for output and colour. The EiKO EP1-22PS30-FCCT-U is a 2x2 edge-lit flat panel with PowerSet wattage selection (30/25/20 W) and FieldCCeT colour selection (3500K, 4000K or 5000K). At the 30 W setting it delivers 3,750 lumens, with 0-10V dimming on a 120-277V input and DLC Premium qualification for rebate projects.

Why facility managers and contractors pick it

  • PowerSet switch: 30 W, 25 W or 20 W (3,750 / 3,125 / 2,500 lm) from one SKU.
  • FieldCCeT switch: 3500K, 4000K or 5000K; ships set to 30 W and 4000K.
  • Edge-lit PMMA light guide for even, non-yellowing light; 120° beam.
  • Slim 1-13/16 in profile with integrated seismic clips for T-bar grids; IC and plenum rated.
  • ETL listed for the US and Canada, damp rated, DLC Premium, 5-year limited warranty.

Specifications

Spec Detail
Brand EiKO
Model EP1-22PS30-FCCT-U (order code 13182)
Type 2x2 edge-lit LED flat panel
Wattage / lumens 30 / 25 / 20 W selectable; 3,750 / 3,125 / 2,500 lm
CCT / CRI 3500K / 4000K / 5000K selectable / 80+
Input / dimming 120-277 V / 0-10V, dim to off
Dimensions 23-3/4 x 23-3/4 x 1-13/16 in
Construction White powder-coated aluminum frame, PMMA lens
Ratings Damp location, IC rated, plenum rated, ETL (US and Canada)
DLC Premium
Operating temperature -20°C to 45°C
Warranty 5-year limited

Pro tip from the counter

EiKO lists this panel at 120-277 V only. Many Ontario commercial and institutional ceilings are wired at 347 V, so have the lighting circuit voltage confirmed before swapping out old troffers; on a 347 V circuit this panel would need a step-down transformer or a 347 V-rated fixture.

Best for: office and school troffer retrofits, retail ceilings, hospital corridors, DLC rebate lighting upgrades

Downloads: Spec sheet (PDF) · Installation sheet (PDF)
