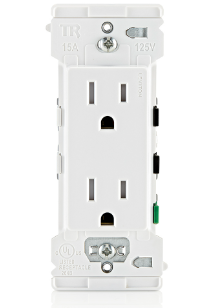

On a whole-house device swap or a condo fit-out, terminating receptacles is where the hours go. The Leviton E5325-W (sold as Decora Edge, now branded Lever Edge) is a 15 A, 125 V tamper-resistant Decora duplex receptacle with colour-coded lever terminals instead of screws, including the ground. Leviton says it installs up to 3.5 times faster than traditional devices, and it is self-grounding, with no exposed metal parts on the body.

Why electricians pick it

  • Colour-coded lever terminals, ground included, snap shut with an audible click.
  • Accepts #14 to #12 AWG solid or stranded copper wire.
  • Tamper-resistant shutters; 15 A receptacle with 20 A feed-through.
  • Self-grounding strap; longer, wider strap fits Midway plates, or standard plates once the breakaway tab is removed.
  • CSA certified to C22.2 No. 42 and UL listed; 2-year limited warranty.

Specifications

Spec Detail
Brand Leviton
Model E5325-W
Type Decora tamper-resistant duplex receptacle, lever terminals
Rating 15 A, 125 V; 20 A feed-through
Configuration NEMA 5-15R, 2-pole, 3-wire, grounding
Wire #14-#12 AWG solid or stranded copper only
Grounding Self-grounding
Certifications CSA C22.2 No. 42 (File 152105); UL File E13399
Colour White
Warranty 2-year limited

Pro tip from the counter

Lever terminals are rated for copper only. In an older house with aluminum branch-circuit wiring, don't use this receptacle; have your electrician use a device and connection method approved for aluminum instead.

Best for: whole-home receptacle replacements, condo and multi-unit fit-outs, kitchen and living area circuits, electricians working to tight labour budgets

Downloads: Installation instructions (PDF)
