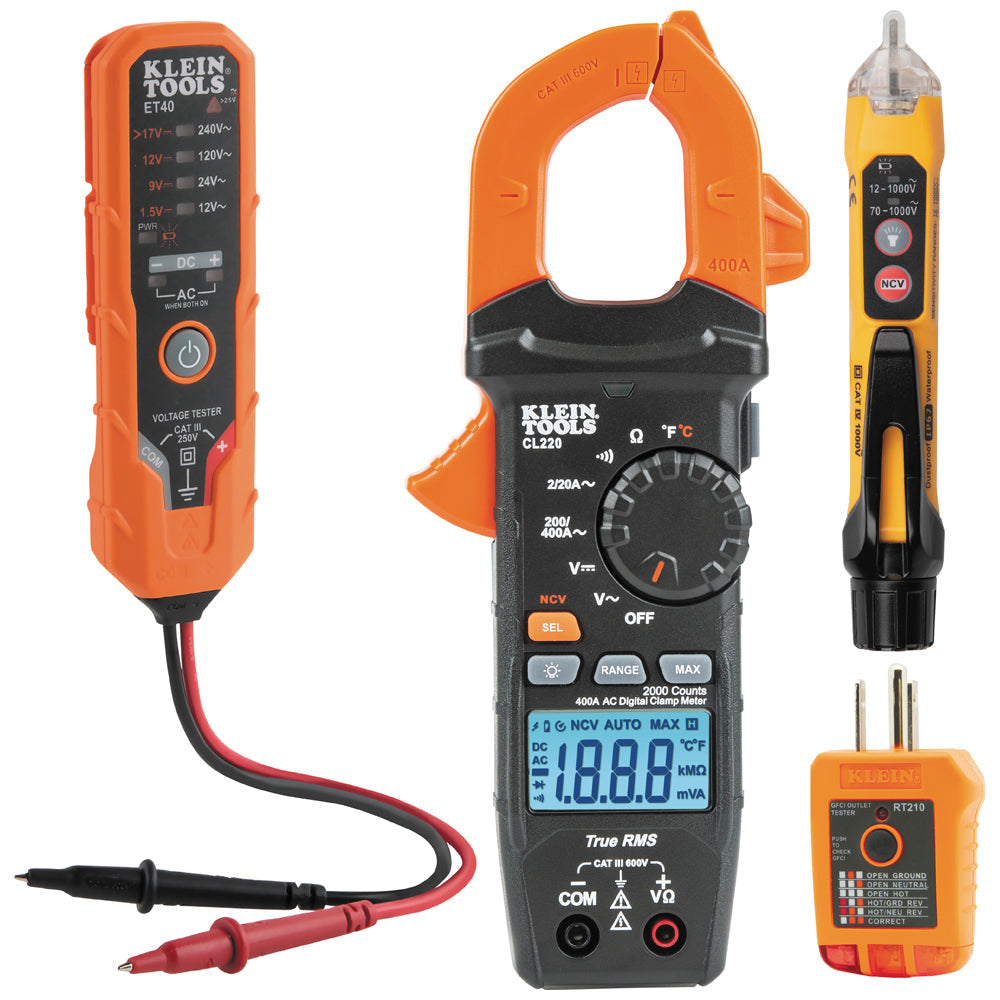

Premium Meter Electrical Test Kit

• CL220 Clamp Meter measures AC current and AC/DC voltage, resistance, and continuity via test leads, and temperature with thermocouple
• Auto-ranging TRMS meter has a backlit LCD on clamp to provide better viewing in low light and is CAT III 600V, Class 2 Double Insulated
• NCVT3P has dual-range capabilities to detect from 12 to 1000V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
• Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
• ET40 tests AC voltages from 12V to 240V and DC voltages from 1.5V to >17V to 24V at four useful levels aligned with commonly used residential voltages
• ET40 also has built-in test lead holders spaced for testing tamper-resistant US-style outlets and convenient for storage
• RT210 detects common wiring problems in standard and GFCI receptacles: open ground, reverse polarity, open hot, open neutral, and hot/ground reversed
• Type:

  Electrical Test Kit

  Application:

  Testing and Measuring AC/DC Voltage, Resistance, Continuity, Temperature, Non-contact Voltage Detection, and Determining Wiring Conditions in Outlets

  Special Features:

  CL220: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature

  Overall Length:

  8.45'' (21.5 cm)

  Overall Height:

  1.5'' (3.8 cm)

  Overall Width:

  3.5'' (8.9 cm)

  Material:

  ABS/Electronics

  Batteries:

  CL220: 3 x AAA; NCVT3P: 2 x AAA; ET40: 2 x AAA

  Jaw Size:

  CL220: 1.6'' (4.1 cm)
  Drop Protection:

  6.6' (2 m)

  Display:

  CL220: 2000 Count Backlit LCD

  Functions:

  Clamp Meter: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature

  Voltage:

  CL220: 600 V AC/DC; NCVT3P: Range 1: 12 -1000V AC; Range 2: 70 - 1000V AC; ET40: AC Level Indicators: 12V, 24V, 120V, 240V and DC Indicators: 1.5V, 9V, 12V, >17-24V; RT310: 120V AC in 3-Wire Grounded Electrical Outlet

  Pollution Degree:

  CL220: 2

  Standard:

  CL220: CATIII 600V, Class 2, Double Insulation Safety Rating, CE and UKCA Certified

  Included:

  CL220 Digital Clamp Meter with Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET40 Electronic AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required Batteries

  Weight:

  11 oz (314 g)

  UPC:

  092644694332
