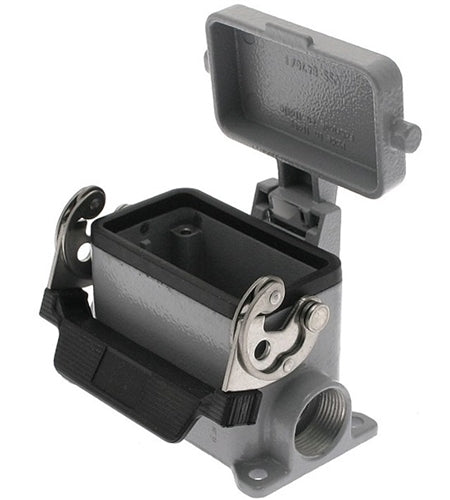

The ILME CHP-10LS C-Type surface mount standard housing is size 57.27 and features a single lever with cover and a PG 16 cable entry. The body is epoxy coated die cast aluminum with a polyamide handle and stainless steel lever. Insert center distance: 57 x 27 mm. Rated IP 65 when attached and locked down. The clamping force supplied by the CHP-10LS is constant due to the stainless steel locking system.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • Gasket- Thermoplastic Elastomer
  • Handle- Polyamide
  • Lever- Stainless Steel
  • ILME Series- CH
  • Insert Dimension- 57.27
  • Enclosure Dimension- 57.27
  • Housing Type- Metallic, Standard
  • Enclosure Type- 1 Lever w/ Cover
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Gasket- Yes
  • Hood Entry- Side
  • Hood Thread- PG 16
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Insert Center Distance- 57 x 27 mm (2.24" x 1.06")
  • Approvals- C UR US, CCC, GL
