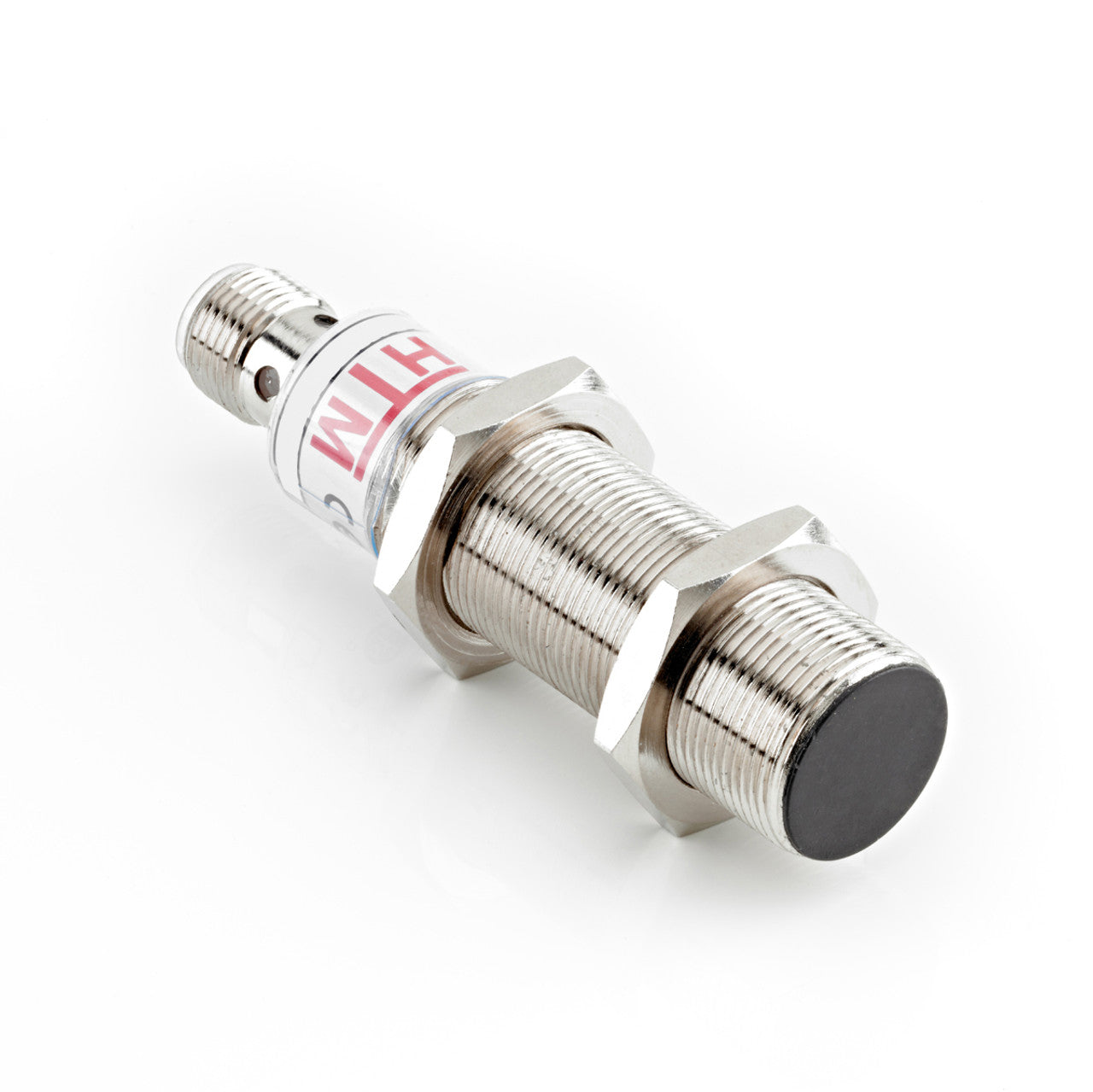

Detecting plastic parts, powders, pellets or liquid levels takes a sensor that isn't limited to metal targets. The HTM Sensors CCM1-1808P-ARU4 is an M18 shielded capacitive proximity sensor with a 2 to 8 mm sensing range, PNP normally open output and an M12 A-coded 4-pin connector. Controls technicians and OEM builders use it on hoppers, conveyors and packaging lines.
| Spec | Detail |
|---|---|
| Brand | HTM Sensors |
| Model | CCM1-1808P-ARU4 |
| Type | Capacitive proximity sensor, M18 cylindrical, shielded |
| Sensing range | 2 to 8 mm |
| Output | PNP, normally open, 300 mA max |
| Supply voltage | 10 to 30 V DC |
| Response / switching frequency | 1.5 ms / 100 Hz |
| Connector | M12 A-coded, 4-pin |
| Housing / face | Chrome-plated brass / PBT |
| Body length | 96 mm |
| Protection | IP67; short-circuit and reverse-polarity protected |
| Operating temperature | -25°C to +70°C |
Pro tip from the counter
A PNP output sources positive voltage to the load, so it pairs with sinking-type PLC input cards. Check the input card before ordering; if it expects a sinking (NPN) sensor, this one won't switch it, and you'll want HTM's NPN version of the same body.
Best for: level detection in hoppers and bins, plastic part detection, packaging and conveyor lines, OEM machine builders
Downloads: Spec sheet (PDF)
Ships Canada-wide from Vaughan, ON. Need several for a machine build? Ask for a quote or call (905) 553-7171.
