Home » Arlington Vapor Box 1G W/Screws, Fire-Rated, 22 cu. in.

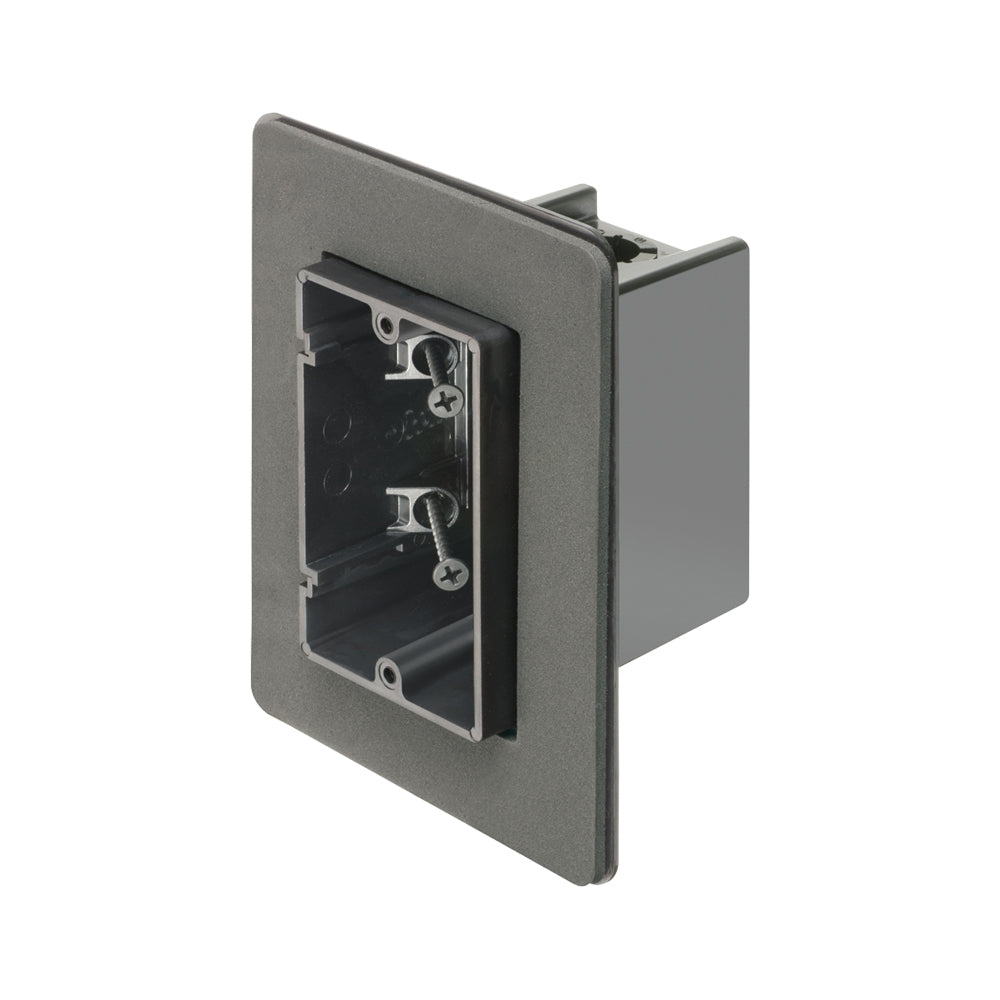

Arlington Vapor Box 1G W/Screws, Fire-Rated, 22 cu. in.
Arlington Vapor Box 1G W/Screws, Fire-Rated, 22 cu. in.
ARLINGTON SKU: F101FGC Barcode: 018997069054
ARLINGTON

Arlington Vapor Box 1G W/Screws, Fire-Rated, 22 cu. in.

In stock - 5 items available
SKU: F101FGC UPC: 018997069054
(0)
$250.00 CAD
-29% $350.00 CAD $250.00 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 0.27 lb

Switches and receptacles on insulated exterior walls leak air unless the box itself is sealed. The Arlington F101FGC is a single-gang ONE-BOX™ vapour box for devices: it screws to a wood or steel stud, and its gasketed flange seals to the air barrier. With 22 cu in of space and a grounding clip, it is a device box for walls, not a ceiling fan or fixture box.

Why electricians pick it

  • Flange with installed gasket forms a barrier against air infiltration at outlets and switches.
  • Screw-on mounting to wood or steel studs.
  • 22 cu in single-gang body for switches, receptacles and GFCIs.
  • Arlington lists a 2-hour fire rating.
  • Includes two NM94 connectors, knockout gaskets, flange gasket and two #6 x 1-5/8 in screws.

Specifications

Spec Detail
Brand Arlington Industries
Model F101FGC (F101F with grounding clip)
Type Single-gang screw-on non-metallic vapour box for devices
Volume 22.0 cu in
Load rating None published; device box, not for fans or fixtures
Fire rating 2-hour (per Arlington)
Size (H x W) 5.99 x 4.5 in
Material Plastic, black
Arlington pack 25 pcs

Pro tip from the counter

Arlington tells Canadian buyers to order the GC suffix, which adds a grounding clip to the non-metallic box. Have your electrician land the bonding conductor on that clip so there is a proper termination point in a plastic box when a metal plate or device yoke goes on.

Best for: receptacles and switches on exterior walls, air-tight new builds, Energy Star and high-performance homes, insulated garage and basement walls

Downloads: Spec sheet (PDF)

Stocked for contractors and shipped Canada-wide from Vaughan, ON. Ask for trade pricing through a quote or call (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
