Arlington Flange Box - Non-Metallic, Flanged Fixture, 5/8-7/8 Wall
Arlington Flange Box - Non-Metallic, Flanged Fixture, 5/8-7/8 Wall
Arlington Flange Box - Non-Metallic, Flanged Fixture, 5/8-7/8 Wall
Arlington Flange Box - Non-Metallic, Flanged Fixture, 5/8-7/8 Wall
ARLINGTON SKU: FR405F Barcode: 018997126818
ARLINGTON

Arlington Flange Box - Non-Metallic, Flanged Fixture, 5/8-7/8 Wall

In stock
SKU: FR405F UPC: 018997126818
(0)
$11.05 CAD
-40% $18.42 CAD $11.05 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 0.41 lb

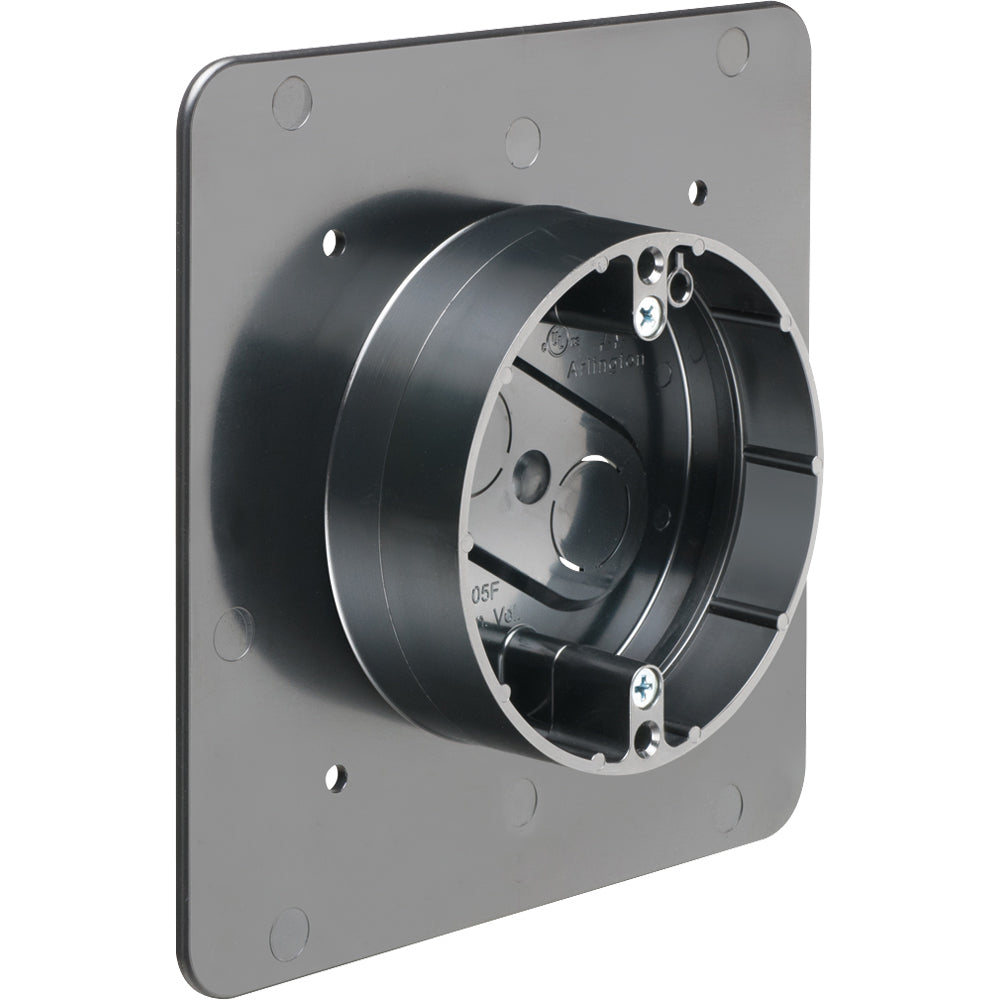

Exterior wall lights on stucco or siding need a box that seals to the sheathing without a bead of caulk. The Arlington FR405F is a non-metallic FR Series flanged pan box for exterior fixtures: wide flanges shed air and water, and interchangeable backs plus extension rings fit different wall finish thicknesses. It carries a light 10 lb fixture rating and is not intended for ceiling fans.

Why siding and electrical crews pick it

  • Extra-wide flanges help block air and water around the box with no gasket or caulking.
  • Ships assembled for a 1-3/8 in finish; flip the back for 5/8 in, or add the included ring for 7/8 in.
  • High-strength polycarbonate body mounts flat to the wall surface.
  • Includes 3/4 in and 1/4 in extension rings, an NM94 connector, a snap-in blank and screws.
  • Up to a 10 lb fixture rating, suited to typical wall packs and porch lights.

Specifications

Spec Detail
Brand Arlington Industries
Model FR405F
Type Non-metallic flanged pan box for exterior fixtures (FR Series)
Load rating 10 lb fixture; no fan rating
Volume 12.8 cu in at 1-3/8 in, 7.3 cu in at 7/8 in, 4.8 cu in at 5/8 in
Wall finish Flat or stucco; 5/8, 7/8 or 1-3/8 in finish thickness
Material High-strength polycarbonate, black
Size (H x W) 6.75 x 6.75 in
Arlington pack Sold singly; standard pack 10

Pro tip from the counter

Set the box for the finish before it goes on the wall: flip the back for 5/8 in stucco, add the 1/4 in ring for 7/8 in. Note that usable volume drops to 4.8 cu in at 5/8 in, so a light with a spliced feed-through may not fit at that setting.

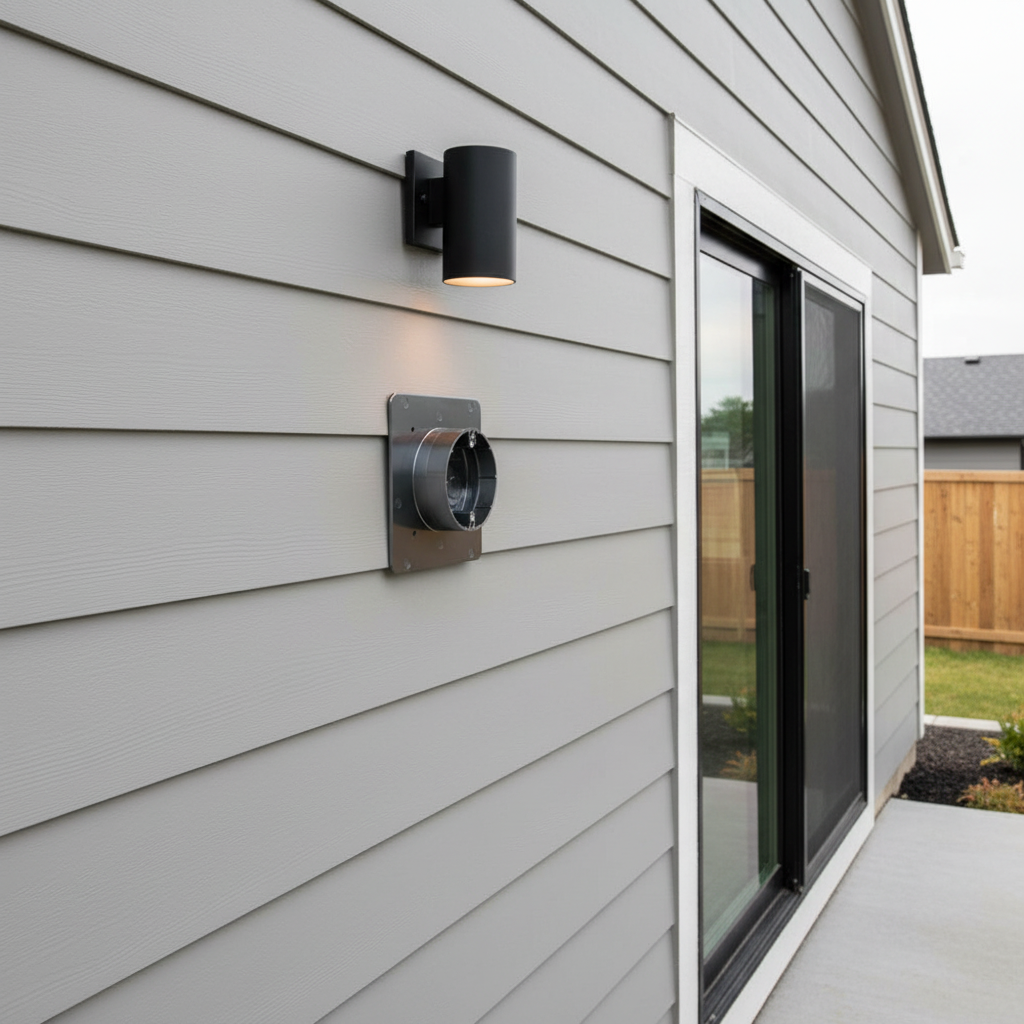

Best for: exterior wall sconces and porch lights, stucco and flat-finish walls, siding and cladding retrofits, builders sealing the building envelope

Downloads: Spec sheet (PDF) · Installation instructions (PDF)
