Arlington Ceiling Box 1 1/2 W/Bk - Steel Octagonal, 200lb Fixture Rated
Arlington Ceiling Box 1 1/2 W/Bk - Steel Octagonal, 200lb Fixture Rated
ARLINGTON SKU: FBS415S Barcode: 018997752062
ARLINGTON

Arlington Ceiling Box 1 1/2 W/Bk - Steel Octagonal, 200lb Fixture Rated

In stock - 9 items available
SKU: FBS415S UPC: 018997752062
(0)
$22.16 CAD
-37% $35.00 CAD $22.16 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 0.92 lb

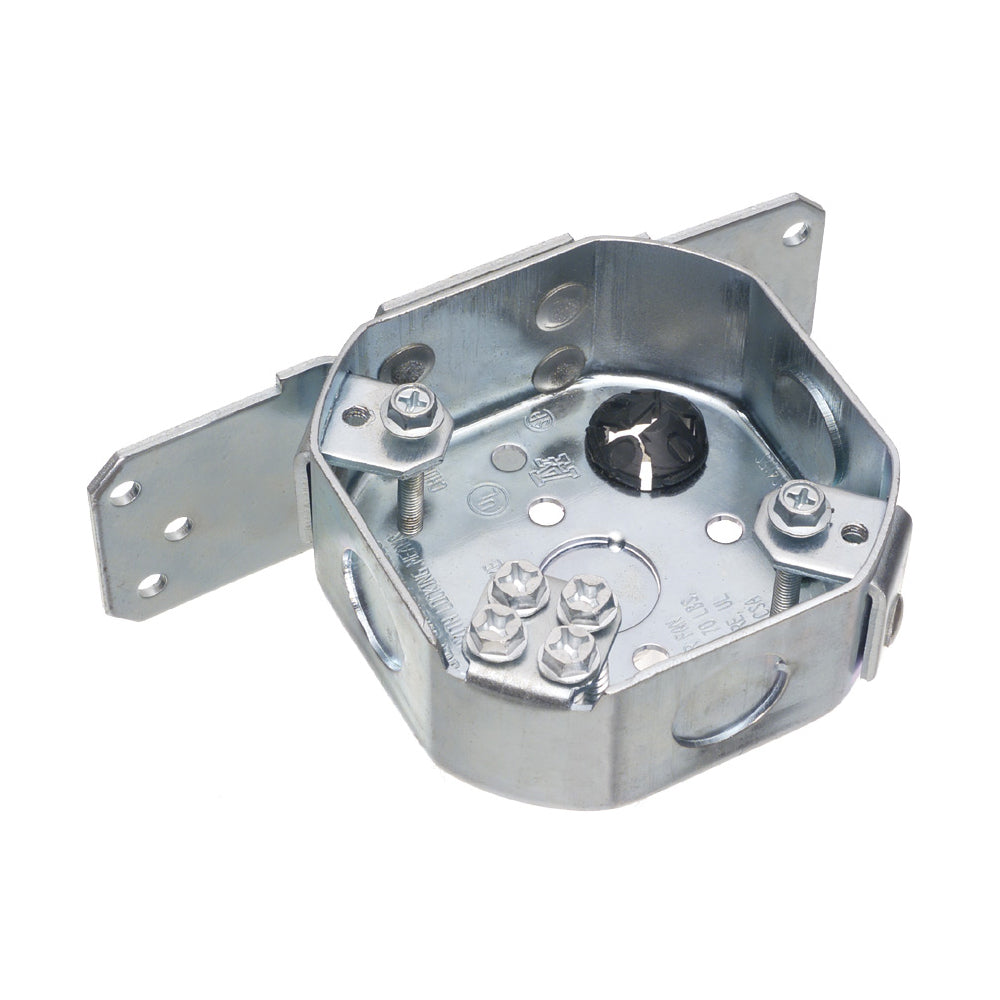

The Arlington FBS415S is a steel octagonal fan and fixture box with a side-mounting bracket: it fastens to the side of a joist in new work and gives 14.6 cu in at 1-1/2 in depth. It is CSA rated for a 50 lb fan or fixture, the rating Canadian installers must work to. Arlington's rating chart lists this S (side-bracket) version at 70 lb for both fan and fixture under UL, not the 200 lb fixture figure of the under-joist FBS415.

Why electricians pick it

  • Side-mount bracket screws to the face of the joist; ships ready to install with screws parked in place.
  • CSA rated 50 lb fan or fixture.
  • Steel octagon box, 1-1/2 in deep, 14.6 cu in.
  • Includes NM cable connector, mud cover, four installation screws and two fan/fixture bracket screws.
  • Combination hex/Phillips head screws for power drivers.

Specifications

Spec Detail
Brand Arlington Industries
Model FBS415S
Type Steel octagonal fan/fixture joist box, side-mount bracket
CSA rating (Canada) 50 lb fan / 50 lb fixture
UL rating (US) 70 lb fan / 70 lb fixture (Arlington rating chart)
Volume / depth 14.6 cu in / 1-1/2 in
Max conductors (Arlington chart) 7 x #14, 6 x #12, 6 x #10
Construction New work only
Finish Plated steel
Arlington pack 25 pcs

Pro tip from the counter

Don't sell this box off a 200 lb chandelier claim. The S suffix is the side-bracket version, which Arlington's chart rates lower under UL than the under-joist FBS415, and in Canada both carry a CSA rating of 50 lb. Anything heavier needs a support system rated for the weight.

Best for: new-work ceiling fans and light fixtures, side-of-joist box placement, steel box specifications, residential rough-in

Downloads: Spec sheet (PDF) · Arlington fan/fixture box ratings chart (PDF)

Stocked in Vaughan, ON and shipped across Canada. Contractors can get trade pricing through a quote or at (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
