Weight: 0.01 lb
Larger NM runs into boxes, like range and dryer feeds or two cables sharing one knockout, need a 3/4 in connector that installs fast. The Arlington NM95 is a black plastic push-in connector for 3/4 in knockouts that snaps in with light finger pressure and holds NM cable securely. It removes with a twist of a screwdriver and is sold here in packs of 50.
| Spec | Detail |
|---|---|
| Brand | Arlington |
| Model | NM95 |
| Type | Push-in NM cable connector |
| Knockout size | 3/4 in |
| Cable range | (1) 14/2 to 6/2 or 14/3 to 6/3; (2) 14/2 to 10/2 or 14/3 to 10/3 |
| Material / colour | Plastic / black |
| Listings | UL / CSA (per Arlington) |
| Sold as | Pack of 50 |
Pro tip from the counter
Plan the knockouts around the big cables: a single 6/3 range or 6/2 subpanel feed takes the whole NM95, while two lighter cables up to 10/3 can share one. Punch a separate 3/4 in knockout for the heavy feed instead of trying to squeeze a second cable in beside it.
Best for: range, dryer and subpanel feeds in NM, two-cable entries into panels and boxes, residential rough-in, renovation box changes
Downloads: Arlington NM95 product page
Ships Canada-wide from Vaughan, ON. Buying for a subdivision? Builders can get pricing through a quote or (905) 553-7171.
| Feature |

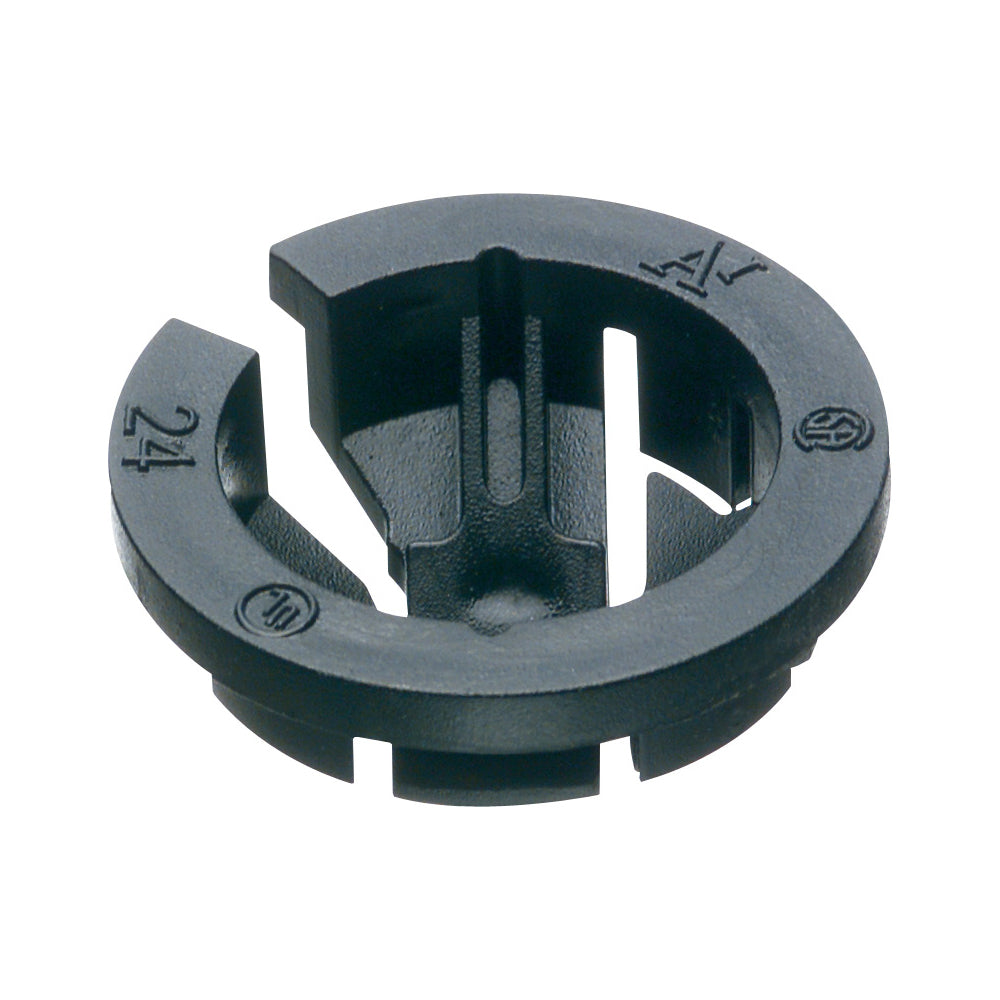

Arlington 3/4" Plastic NM Cable Connector
$31.35
Current
|
|---|---|
| Brand | ARLINGTON |
| Type | Conduit Fittings |
| Availability | In stock |
| Rating | No reviews |
