Home » 8-Inch 35W 4000K LED Commercial Downlight Retrofit by [Manufacturer Name] - 3000lm, 0-10V Dimming, 120-277VAC
8-Inch 35W 4000K LED Commercial Downlight Retrofit by [Manufacturer Name] - 3000lm, 0-10V Dimming, 120-277VAC
8-Inch 35W 4000K LED Commercial Downlight Retrofit by [Manufacturer Name] - 3000lm, 0-10V Dimming, 120-277VAC
EiKO SKU: CDR-4C-840K-U Barcode: 031293092397
EiKO

8-Inch 35W 4000K LED Commercial Downlight Retrofit by [Manufacturer Name] - 3000lm, 0-10V Dimming, 120-277VAC

In stock
SKU: CDR-4C-840K-U UPC: 031293092397
(0)
$41.67 CAD
-40% $69.44 CAD $41.67 CAD

Questions? Ask an Expert or Visit the Store

Email (905)553-7171
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Weight: 4.06 lb

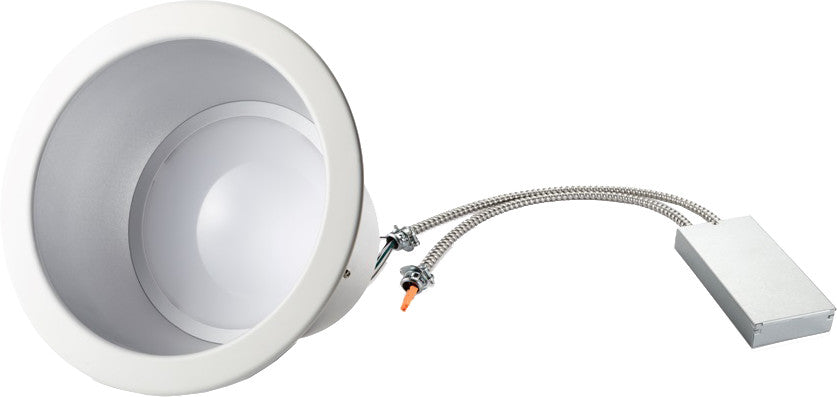

Lobbies, corridors and retail ceilings full of 8 in CFL cans can be relit without opening the ceiling. The EiKO CDR-4C-840K-U (item 09239) is an 8 in LED commercial downlight retrofit that delivers 3,000 lumens at 35 W and 4000K, and replaces two 26 W CFLs. It fits existing architectural housings with 7.8 to 8.6 in apertures and runs on 120-277 VAC with 0-10 V dimming.

Why facility managers pick it

  • One-for-one replacement for 8 in (2) 26 W CFL downlights.
  • 3,000 lumens at 35 W, about 86 lm/W.
  • 120-277 VAC driver with 0-10 V dimming from 10 to 100%.
  • Quick connector and pre-wired conduit speed up swaps from below.
  • Butterfly and retaining clips included for housings without clips.
  • Suitable for dry or damp locations; 5-year warranty.

Specifications

Spec Detail
Brand EiKO (LitespanLED)
Item # / model 09239 / CDR-4C-840K-U
Size / aperture 8 in; fits 7.8 to 8.6 in apertures
Wattage / lumens 35 W / 3,000 lm
CCT / CRI 4000K / 80+
Input voltage 120-277 VAC
Dimming 0-10 V, 10-100%
Height (MOL) 5.9 in
Driver box 6.69 x 3.15 x 1.57 in, 18.5 in lead
Location Dry or damp
Operating temperature -40 to 40 C
Rated life / warranty L70 over 54,000 hours / 5 years

Pro tip from the counter

The driver is a separate box on an 18.5 in lead that has to go up through the can opening and sit on the housing or ceiling. On shallow cans or tight plenums, check there is room for a 6.69 x 3.15 x 1.57 in box above the aperture before ordering a floor's worth.

Best for: hotel and office lobbies, corridors, retail and supermarket ceilings, schools, CFL downlight upgrades on 277 V circuits

Downloads: CDR spec sheet (PDF)

Shipped across Canada from Vaughan, ON. For retrofit project quantities, contractors can request a quote or call (905) 553-7171.
Free shipping over $150 across Ontario and Quebec, and 10% off the rest of Canada.
CSA-approved products from a Canadian-owned supplier, 15+ years in Ontario.
Counter pickup in Vaughan, Monday to Friday, 8am to 4pm. Call the counter for advice.
30-day returns on most items. Bulbs, cut-to-length wire and hazardous goods are excluded.
