What is this product?

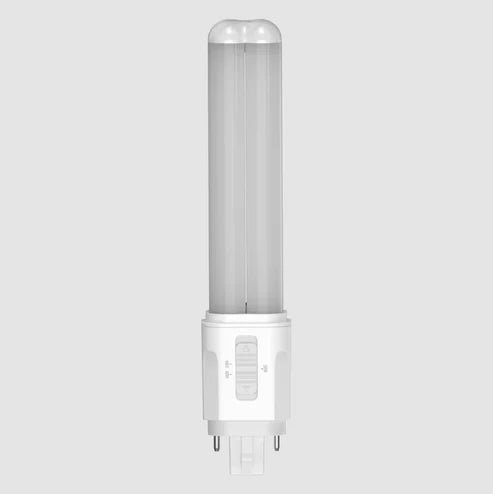

The 14607 - L9.5WPLC/A/8FCCT/UD/G24Q/O is a LED PLC replacement lamp designed to retrofit compact fluorescent PLC fixtures without rewiring. It is a Type A ballast-dependent lamp that installs into existing compatible electronic ballasts and uses a G24q base. It delivers efficient, even light with an omnidirectional beam and selectable color temperature.
TL;DR - Who this is for
- Electricians performing fast CFL-to-LED upgrades without fixture rewiring
- Facility managers maintaining offices, schools, and commercial buildings
- Property managers reducing energy use while keeping existing ballasts
- Maintenance teams replacing CFL PLC lamps in occupied spaces
Institutional Fit
- Good for offices, corridors, classrooms, and commercial interiors
- Supports phased LED upgrades without immediate ballast removal
- Plastic housing reduces breakage risk versus glass CFLs
- Selectable CCT simplifies inventory and standardization
Key benefits
- Direct replacement for PLC CFL lamps using existing ballasts
- 1185 lumens of consistent light output
- Selectable color temperature for space matching
- Omnidirectional beam supports uniform fixture illumination
- Lower energy use versus CFL equivalents
Technical Specifications
| Model | 14607 |
| Ordering code | L9.5WPLC/A/8FCCT/UD/G24Q/O |
| Lamp type | LED PLC |
| Input power | 9.5W |
| Light output | 1185 lumens |
| Voltage | Ballast dependent |
| Base type | G24q |
| Beam pattern | Omnidirectional |
| Color temperature | Selectable CCT |
| CRI | 80+ |
| Housing material | Plastic |
| Replacement for | CFL PLC lamps (similar output class) |
| Dimming | Dependent on ballast compatibility |
| Application | Indoor commercial lighting |
Regulatory compliance
- Confirm ballast compatibility before installation
- Install per local electrical code and authority requirements
- Not intended for direct line-voltage wiring without a ballast
Durability and lifecycle
- Plastic construction improves impact resistance versus glass CFLs
- LED design supports longer service life and reduced relamping
- Lower heat compared to CFL lamps in similar fixtures
Procurement notes
- Verify ballast type and compatibility prior to ordering
- Select CCT during installation to match the space
- Good for bulk retrofits where rewiring is not desired
- One SKU can cover multiple CCT needs
FAQ
Is this ballast bypass or ballast dependent?
This is a Type A ballast-dependent lamp and requires a compatible electronic ballast.
What base does this lamp use?
G24q.
Can I change the color temperature?
Yes. This lamp includes selectable color temperature options.
Does it replace CFL PLC lamps?
Yes. It is designed as a direct replacement for PLC CFL lamps of similar output.
What if I am not sure it will work with my ballast?
Send us the ballast model number or a clear photo of the fixture label and we will help confirm compatibility.
| Feature |
14607 - L9.5WPLC/A/8FCCT/UD/G24Q/O
$17.47
Current
|
|---|---|
| Brand | EiKO |
| Type | |
| Availability | Out of stock |
| Rating | No reviews |
