48 Amp Level 2 Electric Vehicle Charging Station Charging Station Management Software

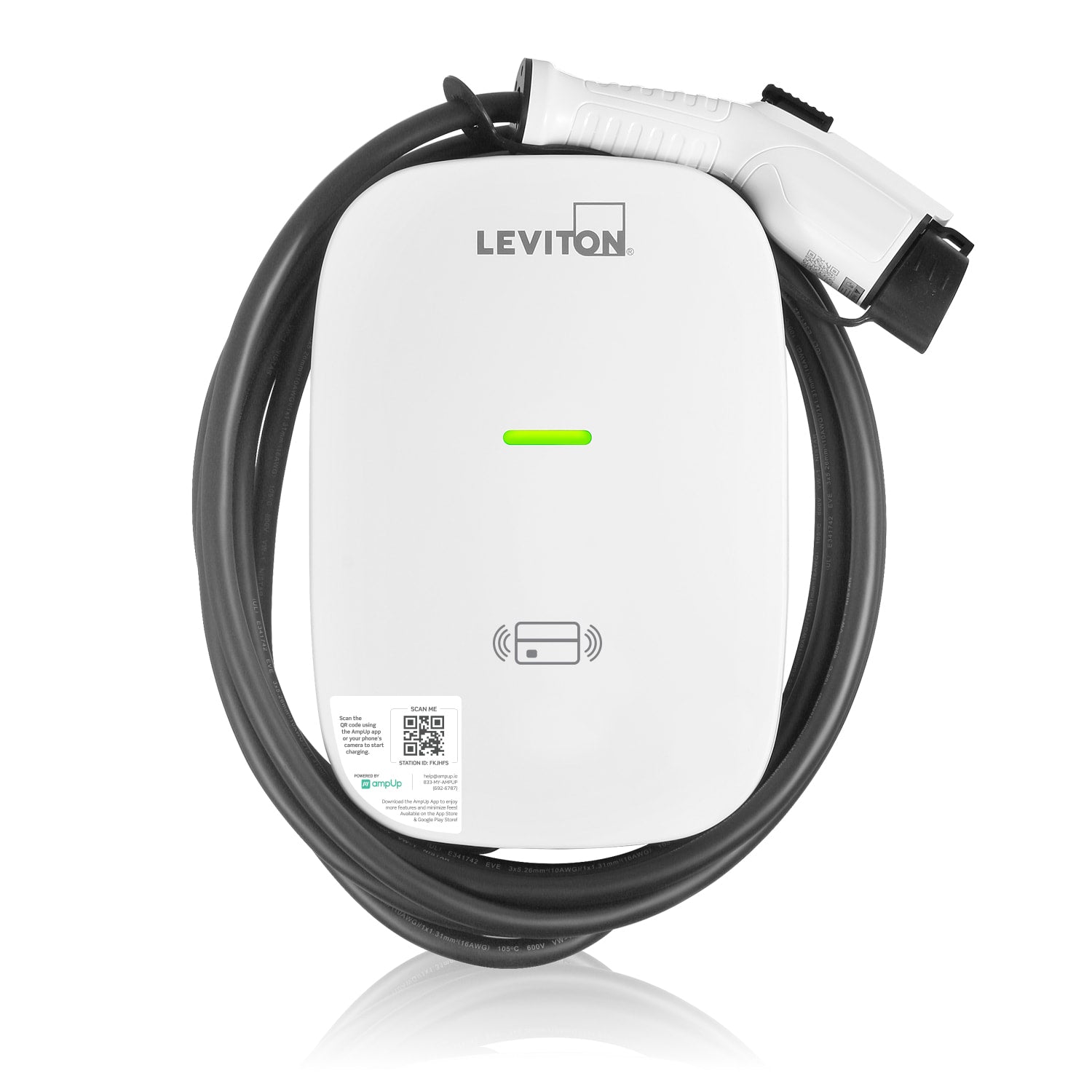

EV Series Pro Level 2 Electric Vehicle Charging Station, 48A, 208/240 VAC, 11.6kW Output, J1772 Charge Connector, 18' Cord, Includes Mounting Bracket and Pre-Attached Input Cable, HARDWIRED ONLY, Features AmpUp Charging Station Management Software

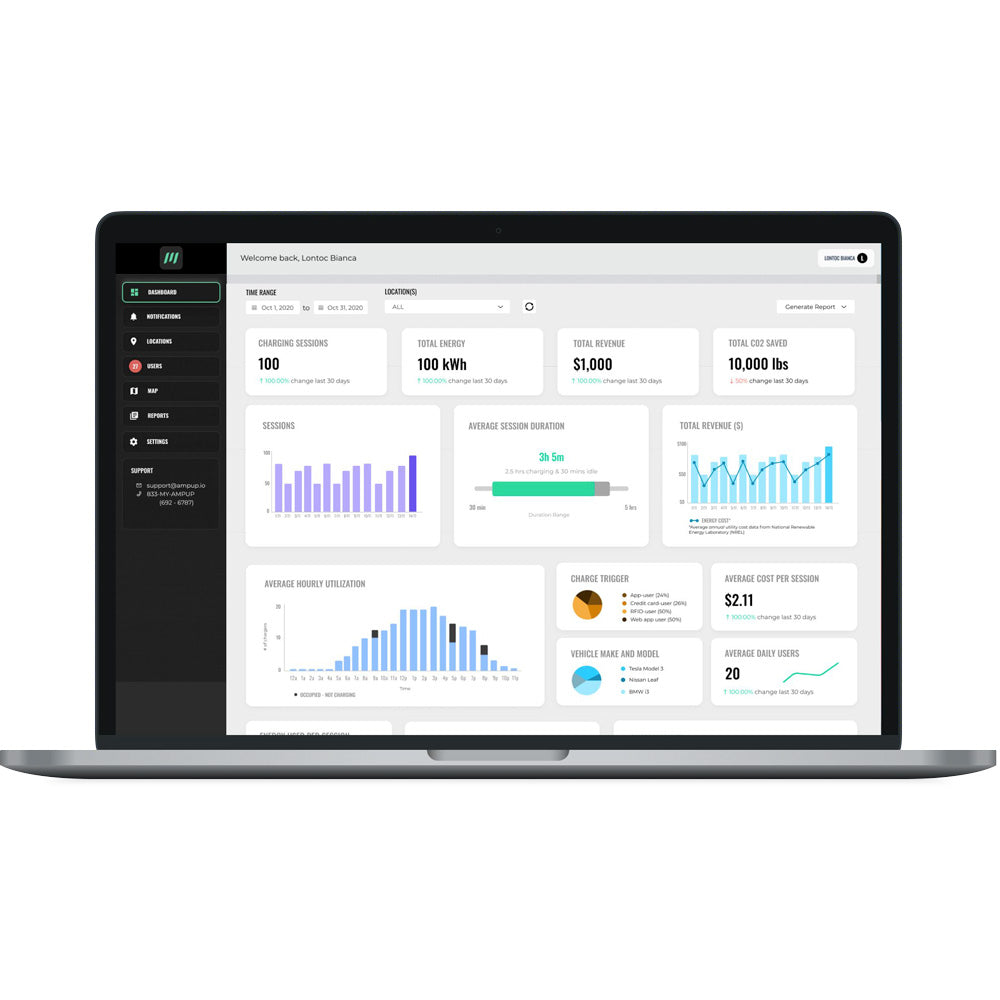

- MULTI-STATION, MULTI-SITE MANAGEMENT FOR SITE HOSTS – Featuring AmpUp Charging Station Management Software, these stations include real time analytics, the ability to set pricing groups and collect revenue, smart scheduling, advanced access control/RFID, power load management, automated reporting, and more
- IMPROVED EXPERIENCE FOR EV DRIVERS - The AmpUp software makes EV charging effortless for drivers by providing the ability to locate charging stations, reserve spots, initiate sessions, and more
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team

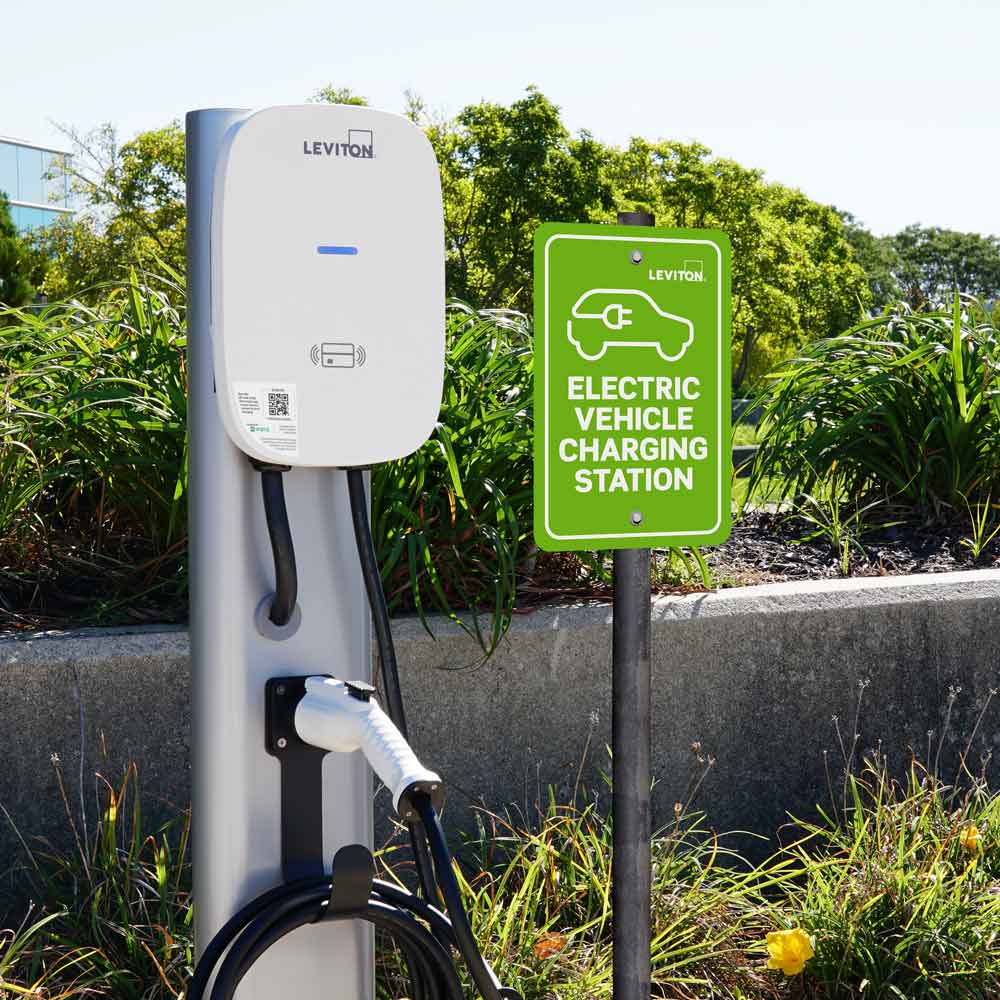

- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors

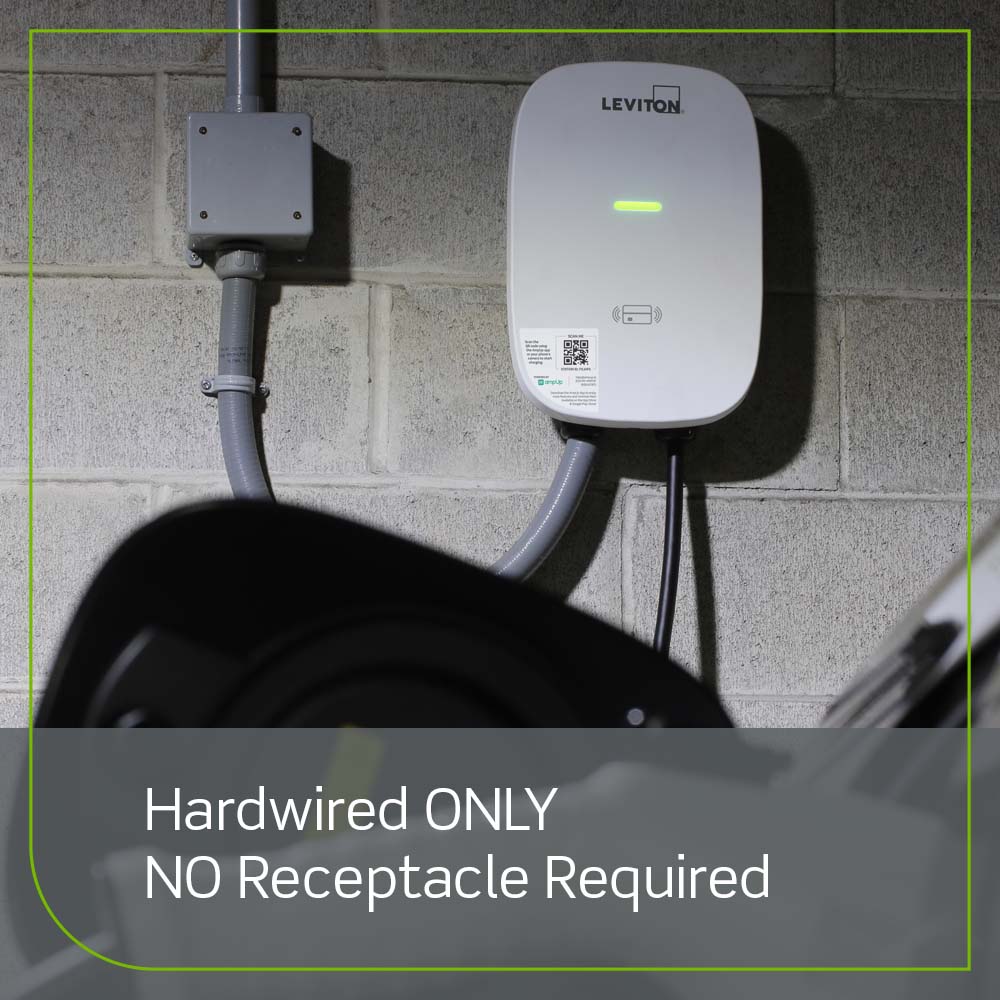

- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 60 Amp breaker
- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter
- UPC Code:
- 078477000533
- Country Of Origin:
- China
-
Electrical Specifications
Amperage48 A
Breaker60 A
Charge Connector Cord#7 AWG SAE J1772
Number of Phase / WireL1, L2 and Ground, Bottom Feed
Operating Temperature-30°C to 50°C
Output Power11.6kW
Short Circuit Current Rating20 mA CCID per UL 2231
Voltage208/240 VAC
Environmental Specifications
Altitude Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature-30°C to +50°C
Cooling Natural Cooling
Operating Humidity< 95% Relative Humidity, Non-Condensing
Material Specifications
Enclosure Material Plastic (PC+PBT)
Enclosure Rating NEMA Type 3R
Status Indicator Power Present, Charging, Fault
Mechanical Specifications
Cable Length18 ft. (5.5 m)
Product Features
Application Commercial |Public Use
Cover Locking Mechanism Phillips Head Screws, No Padlock Option
Device Type Charger
Feature Station Management Software
Standards and Certifications
Standards and CertificationsUL2594| UL 2231-1| UL 2231-2| UL 2251| UL 62| UL 991|UL 1998| NFPA 70 Article 625| UL840| CSA Std. C22.2#280| OCPP 1.6 Compliant
Warranty
Warranty2-Year Limited
